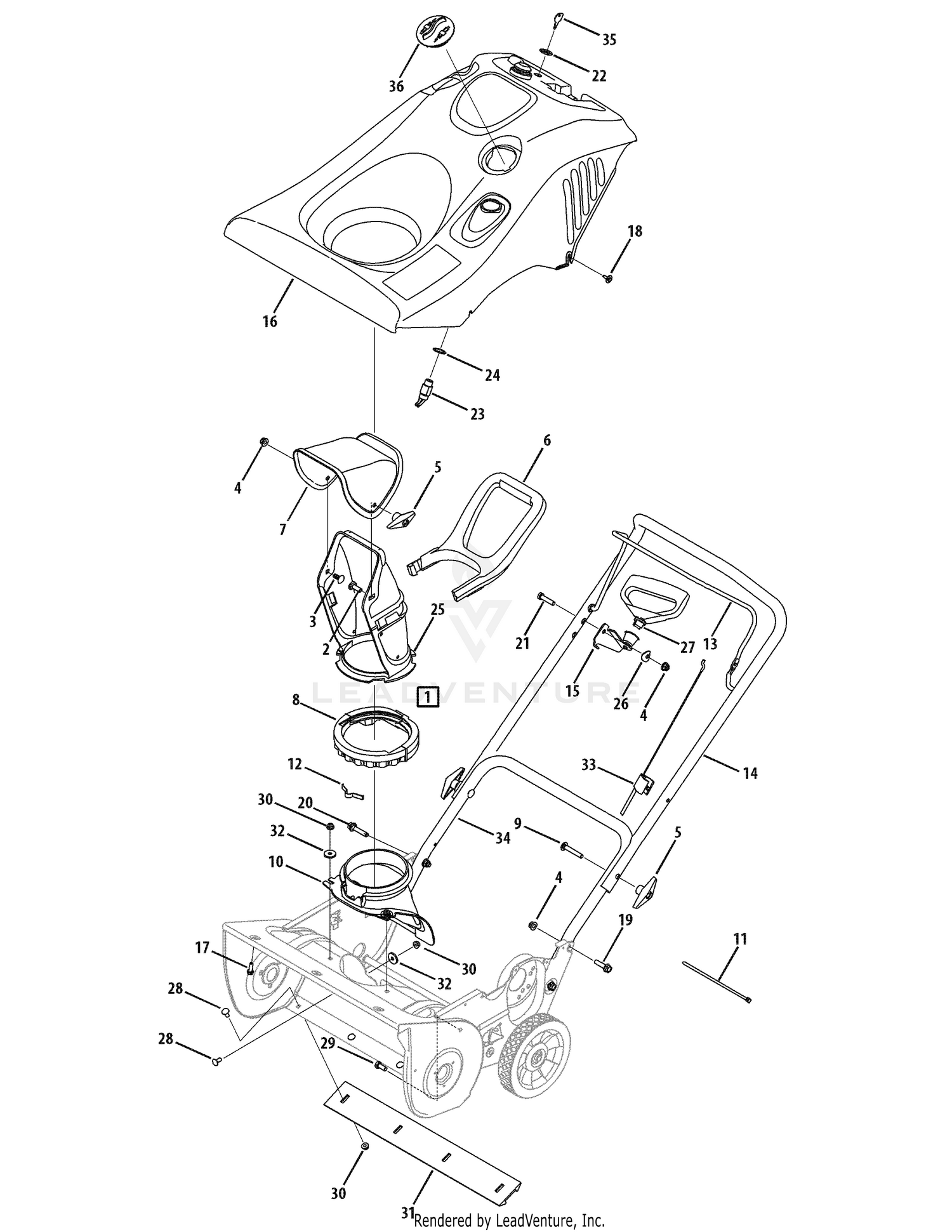

| Ref | Part Number | Description |
|---|
| 1 |
984-04127 |
CHUTE ASSEMBLY:LOWER Not Available This part replaces 684-04127. Price: |
| 2 |
710-04071 |
Carriage Bolt 5/16-18 x 1.0" Price: $3.94 |
| 3 |
710-0451 |
Carriage Bolt 5/16-18 x 0.750" Price: $3.53 |
| 4 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 5 |
720-0284 |
Wing Knob Price: $4.08 |
| 6 |
731-04388A |
Chute Handle Price: $23.54 |
| 7 |
731-04426C |
UPPER CHUTE (W/LBL MANUAL TILT) This part replaces 731-04426A. Price: $17.04 |
| 8 |
931-04353 |
Lower Chute Ring This part replaces 731-04353. Price: $16.59 |
| 9 |
710-04532 |
Carriage Bolt 5/16-18 x 2.0 Gr. 5 Price: $5.50 |
| 10 |
931-04886 |
Chute Adapter Not Available This part replaces 731-04886. Price: |
| 11 |
725-0157 |
Cable Tie Price: $3.46 |
| 12 |
932-04111 |
Chute Adjustment Spring This part replaces 732-04111. Price: $4.11 |
| 13 |
747-04159A |
Bail, Gull Wing Price: $27.78 |
| 14 |
749-04106A |
Gullwing Handle This part replaces 749-04106. Price: $39.25 |
| 15 |
984-0178 |
BRACKET ASSEMBLY Not Available This part replaces 684-0178. Price: |
| 16 |
684-04211 |
SHROUD ASSEMBLY (GREY) Not Available Price: |
| 17 |
710-0895 |
Screw, 1/4-15 x .75 Price: $5.82 |
| 18 |
710-04669 |
Screw, #10-16 x .625" Price: $2.98 |
| 19 |
710-1090 |
Hex Flange Screw, 5/16-18 x 1.25 Price: $3.15 |
| 20 |
710-1882 |
Hex Flange Screw 5/16-18 x 1.50 Price: $3.70 |
| 21 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 22 |
712-0252 |
Hex Nut 5/8-32 x .12 Special Price: $5.15 |
| 23 |
925-2018 |
KEY SWITCH Not Available This part replaces 725-2018. Price: |
| 24 |
736-0225 |
Lock Washer Internal .625 x 1.058 Price: $3.90 |
| 25 |
931-04127 |
Lower Chute, 5inch Diameter This part replaces 731-04127. Price: $29.43 |
| 26 |
736-0451 |
Saddle Washer .320 x .93 Price: $3.75 |
| 27 |
7510009636 |
HANDLE-MITTEN GRIP Not Available Price: |
| 28 |
710-0134 |
Screw, 1/4-20 x .62 Price: $3.71 |
| 29 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 30 |
712-04064 |
Hex Flange Lock Nut, 1/4-20 Price: $3.64 |
| 31 |
731-1033 |
Shave Plate, 19.88 Price: $41.47 |
| 32 |
736-0176 |
Flat Washer .265 x .938 x .120 Price: $3.95 |
| 33 |
946-04237 |
Control Cable This part replaces 746-04237. Price: $21.32 |
| 34 |
749-04114B |
LOWER HANDLE Not Available This part replaces 749-04114. Price: |
| 35 |
925-0201 |
Key This part replaces 725-0201. Price: $8.70 |
| 36 |
684-04210 |
SPARK PLUG CAP ASSEMBLY Not Available Price: |
