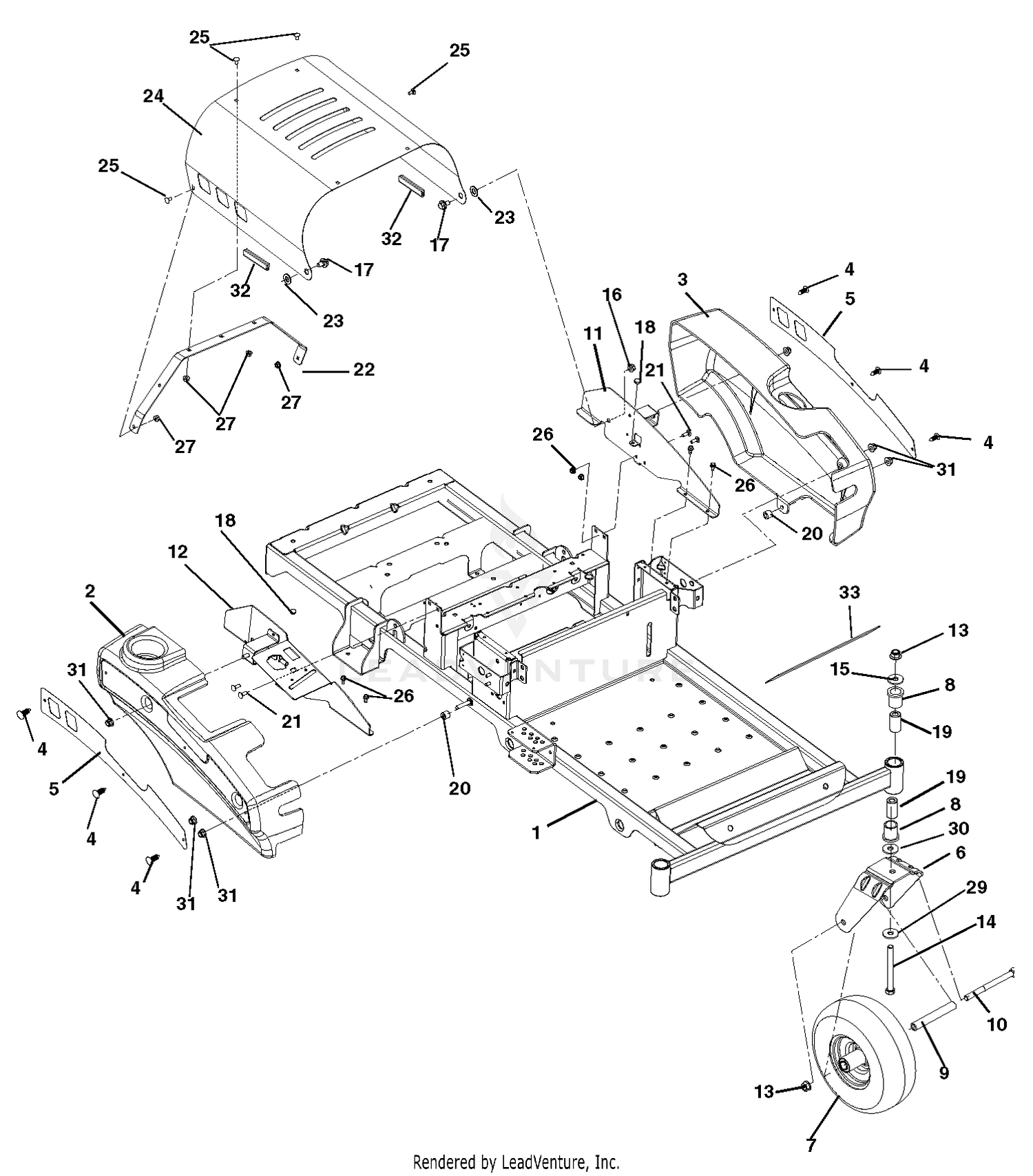

| Ref | Part Number | Description |
|---|
| 1 |
51525800 |
KIT, ZOOM/ZT FRAME W/ DECALS This part replaces 03896851. Price: $572.20 |
| 2 |
03768600 |
FENDER, RH Price: $71.45 |
| 3 |
03768700 |
FENDER, LH Price: $59.95 |
| 4 |
07500125 |
RIVET, .25 NYLON PANEL Price: $0.95 |
| 5 |
03769053 |
PLATE, FENDER Price: $30.95 |
| 6 |
51522500 |
KIT- ZOOM CASTER REPLACEMENT This part replaces 03744751. Price: $96.95 |
| 7 |
07100801 |
TIRE/WHL ASM, FRONT Price: $65.95 |
| 8 |
05500934 |
BSHG-FLG 1.00X1.25X1.50X1.50 Price: $6.95 |
| 9 |
00278500 |
SPACER, ROLLED WHEEL Price: $13.95 |
| 10 |
05901907 |
BLT, HEX .50-13X6.50 GR5 ZCC This part replaces 05964400. Price: $6.95 |
| 11 |
04039951 |
WMT-RH FENDER BRKT Price: $43.20 |
| 12 |
04040751 |
WMT-RH FENDER BRKT Price: $14.35 |
| 13 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 14 |
05901905 |
BLT, HEX .50-13X5.00 GR5 ZCC This part replaces 05962200. Price: $4.95 |
| 15 |
06401022 |
WSHR-FL-STL.511X1.44X.125ZC120 This part replaces 06436400. Price: $2.95 |
| 16 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 17 |
07056700 |
BOLT-SHLDR .375-16X.150 Price: $3.95 |
| 18 |
07503100 |
BUMPER GROMMET Price: $3.45 |
| 19 |
00363100 |
SPACER, CASTER .50X1.00X1.84 Price: $6.95 |
| 20 |
08553700 |
BSHG-SLV .391X.688X.52 PM Price: $5.45 |
| 21 |
06200307 |
BLT, RHSN .25-20X.750 G5 ZCC This part replaces 06219900. Price: $0.95 |
| 22 |
03909253 |
HOOD BRACE Price: $27.45 |
| 23 |
06443300 |
WSHR-FL-NYL .518X1.000X.080 Price: $0.45 |
| 24 |
03872253 |
HOOD, BBZ Price: Call Us |
| 25 |
06200306 |
BLT, RHSN .25-20X.500 G5 ZCC This part replaces 06220600. Price: $0.95 |
| 26 |
06500813 |
NUT,NYL-FLG .25-20 GF ZCC This part replaces 06500012. Price: $1.45 |
| 27 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07412000. Price: $0.45 |
| 29 |
06445000 |
WSHR-FL-STL .515X1.625X.250 YZ Price: $5.45 |
| 30 |
06401127 |
WSHR, FLT .518X2.00X.105 ZCC This part replaces 06441800. Price: $3.45 |
| 31 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 32 |
07500103 |
EDGING, CLUTCH PADDLE - 2.00" Price: Call Us |
