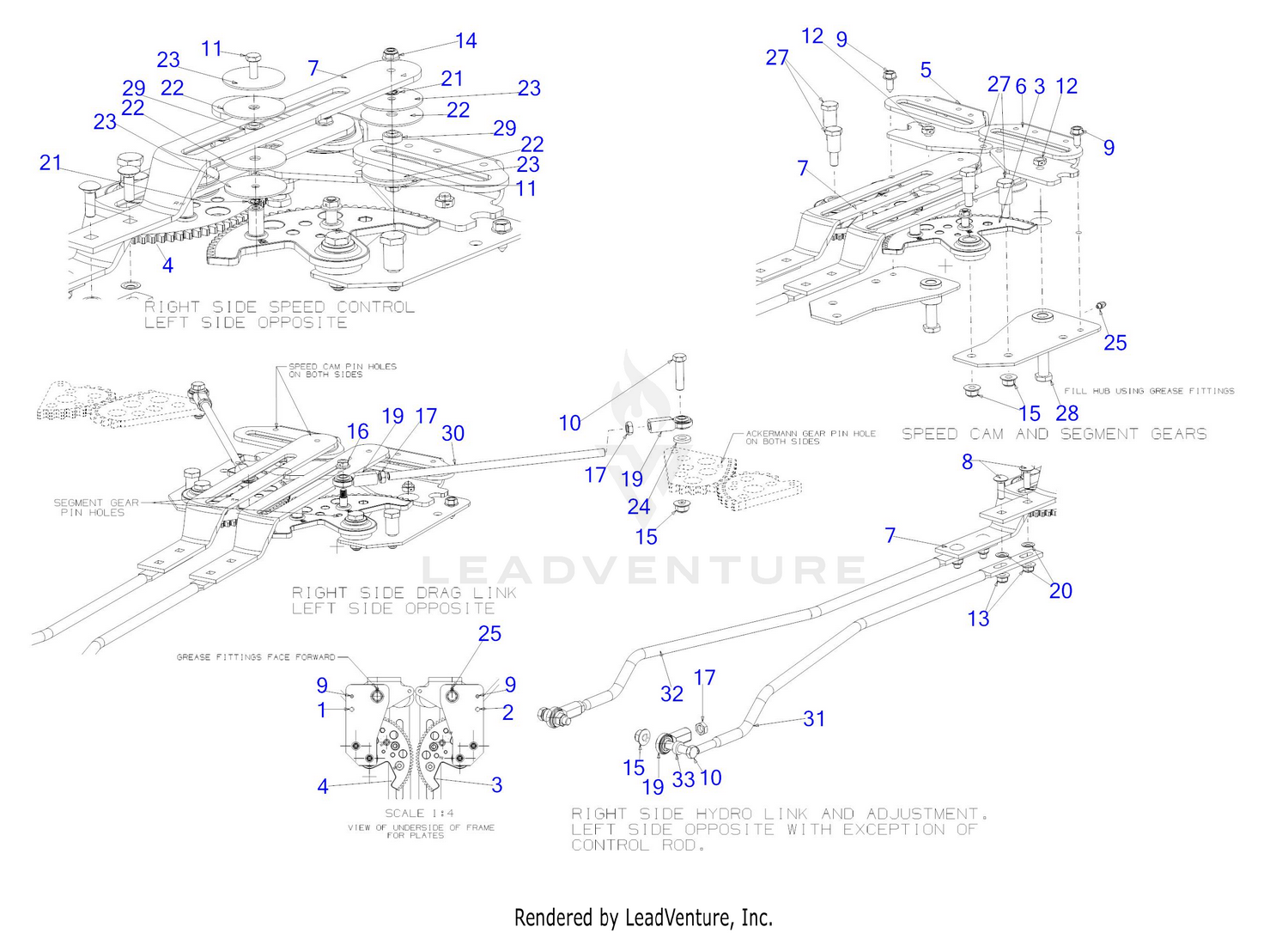

| Ref | Part Number | Description |
|---|
| 1 |
903-05298 |
STEERING SUPPORT PLATE (RH) Price: $38.20 |
| 2 |
903-05299 |
STEERING SUPPORT PLATE (LH) Price: $38.20 |
| 3 |
917-05040 |
STEERING GEAR ASSEMBLY (LH) This part replaces 917-05041. Price: $92.22 |
| 4 |
917-05042 |
STEERING GEAR ASSEMBLY (RH) Price: $91.32 |
| 5 |
703-08882A |
SPEED CAM PLATE (LH) Price: $20.78 |
| 6 |
703-08883A |
SPEED CAM PLATE (RH) Price: $20.78 |
| 7 |
703Z10404A |
CONTROL LINK This part replaces 703-10404. Price: $22.28 |
| 8 |
710-0276 |
CARRIAGE BOLT 5/16-18 x 1.00 Price: $3.68 |
| 9 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 10 |
710-0520 |
SCREW 3/8-16 x 1.50 Price: $3.93 |
| 11 |
710-3220 |
SCREW 1/4-20X1.0 GR5 Price: $3.21 |
| 12 |
712-0266A |
JAM LOCK NUT Price: $3.43 |
| 13 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 14 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 15 |
712-04065 |
NUT Price: $3.68 |
| 16 |
712-04339 |
FLANGE NUT Price: $3.37 |
| 17 |
712-0711 |
HEX JAM NUT 3/8X24 Price: $3.90 |
| 19 |
723-04080 |
BALL JOINT Price: $38.27 |
| 20 |
726-0201 |
PUSH NUT Price: $6.01 |
| 21 |
726-0233 |
RETAINER-BOLT .25ID x .50OD Price: $3.93 |
| 22 |
736-04630 |
FLAT WASHER Price: $5.62 |
| 23 |
736-04631 |
FLAT WASHER Price: $5.62 |
| 24 |
736-3010 |
FLAT WASHER Price: $4.02 |
| 25 |
737-04345 |
GREASE ZERT 1/4-28 Price: $4.02 |
| 27 |
738-05046 |
SHOULDER SCREW .625 x .875 x 3/18 Price: $3.74 |
| 28 |
738-1014 |
SHOULDER SCREW .50 Price: $3.58 |
| 29 |
741-05209 |
BALL BEARING .25 X .625 Price: $9.13 |
| 30 |
747-06130 |
STEERING DRAG LINK Price: $20.98 |
| 31 |
747-06495 |
HYDRO LINK ROD (RH) Price: $31.65 |
| 32 |
747-06496 |
HYDRO LINK ROD (LH) Price: $31.65 |
