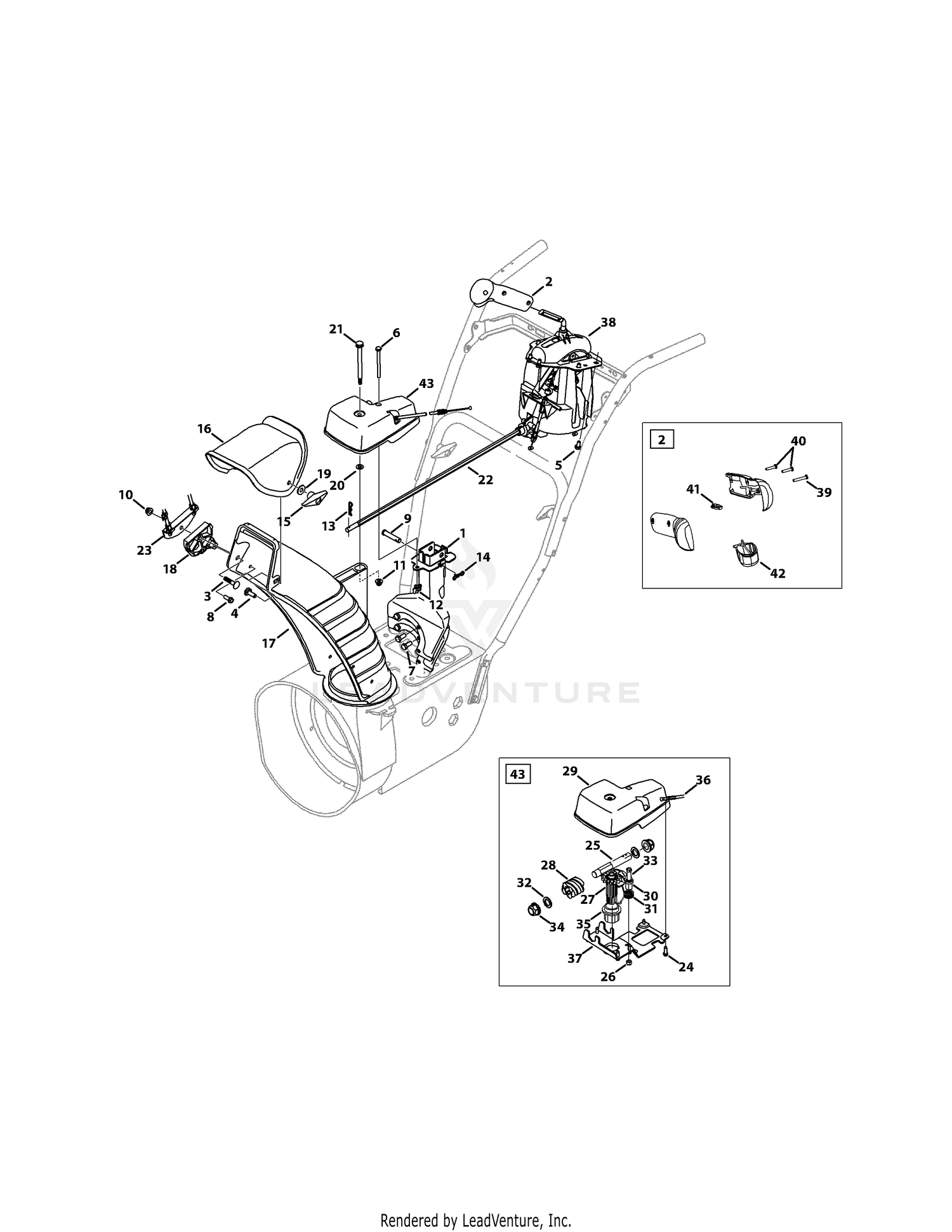

| Ref | Part Number | Description |
|---|
| 2 |
753-06151 |
Trigger Housing Kit Price: $25.37 |
| 4 |
710-04071 |
Bolt, Carrier, 5/16-18 x 1.00 Price: $3.94 |
| 5 |
710-04187A |
HEX SCREW 1/4-15 x .50 This part replaces 710-04187. Price: $5.99 |
| 6 |
710-04370 |
Hex Head Screw, 1/4-20 x 3.00 Price: $3.66 |
| 7 |
710-0627 |
Hex Head Screw, 5/16-24 x .750 Price: $3.68 |
| 8 |
710-0895 |
Screw, Hi-Lo, 1/4-15 x 0.750 Price: $5.82 |
| 9 |
711-04469A |
Clevis Pin, 3/8 x 1.87 Price: $5.15 |
| 10 |
712-04063 |
Nut, Flange Lock, 5/16-18 Price: $3.56 |
| 11 |
712-04064 |
Nut, Flange Lock, 1/4-20 Price: $3.64 |
| 12 |
712-3087 |
WING NUT 1/4-20 Price: $3.53 |
| 13 |
714-0101 |
Int. Cotter Pin This part replaces 914-0101. Price: $4.13 |
| 14 |
714-04040 |
Bow-Tie Cotter Pin Price: $1.28 |
| 15 |
720-0284 |
Star Knob, 5/16-18 Price: $4.08 |
| 17 |
731-06440A |
Chute, Lower Price: $45.59 |
| 18 |
731-06451 |
Cable Guide, Chute Tilt Price: $4.26 |
| 19 |
736-0159 |
Washer This part replaces 936-0159. Price: $3.71 |
| 20 |
736-04446 |
Washer, Flat, .25 x .630 Price: $3.75 |
| 21 |
738-04367 |
Screw, Shoulder, .312 x 3.5 x 1/4-20 Price: $4.36 |
| 22 |
747-05116 |
Chute Rod, 3/8 Hex Price: $26.47 |
| 23 |
784-5594 |
Cable Bracket Price: $9.44 |
| 24 |
710-04373A |
Screw, 12-16 x .75 Price: $3.86 |
| 25 |
711-05186 |
Hex Shaft Price: $9.22 |
| 26 |
712-0896 |
Hexlock Nut, 1/4-28 Price: $4.08 |
| 27 |
717-04667B |
HELICAL GEAR-14T This part replaces 717-04667. Price: $9.09 |
| 28 |
717-04672A |
CHUTE GEARBOX WORM GEAR This part replaces 717-04672. Price: $8.03 |
| 29 |
731-06906 |
Gear Cover Price: $16.96 |
| 30 |
731-06943A |
CHUTE LOCK PAWL This part replaces 731-06943. Price: $4.06 |
| 31 |
732-04638D |
TORSION SPRING This part replaces 732-04638B. Price: $2.94 |
| 32 |
736-0290 |
FLAT WASHER Price: $6.32 |
| 33 |
738-04391 |
Screw, Shoulder, .34 x .95 x 1/4-28 Price: $5.15 |
| 34 |
941-0225 |
Hex Bearing Price: $6.55 |
| 35 |
741-04388A |
HEX FLANGE BEARING This part replaces 741-04388. Price: $6.21 |
| 36 |
946-04619B |
Cable Lock Price: $30.26 |
| 37 |
790-00342C-0637 |
CHUTE ROTATION BRACKET This part replaces 790-00342A-0637. Price: $24.60 |
| 39 |
710-04353 |
Screw, #8 x 1.00 Price: $5.78 |
| 40 |
710-04879 |
Screw, 8-32 x .750 Price: $2.95 |
| 41 |
731-04893A |
Joystick Plug Price: $5.51 |
| 42 |
731-07031 |
Joystick Trigger Price: $6.38 |
