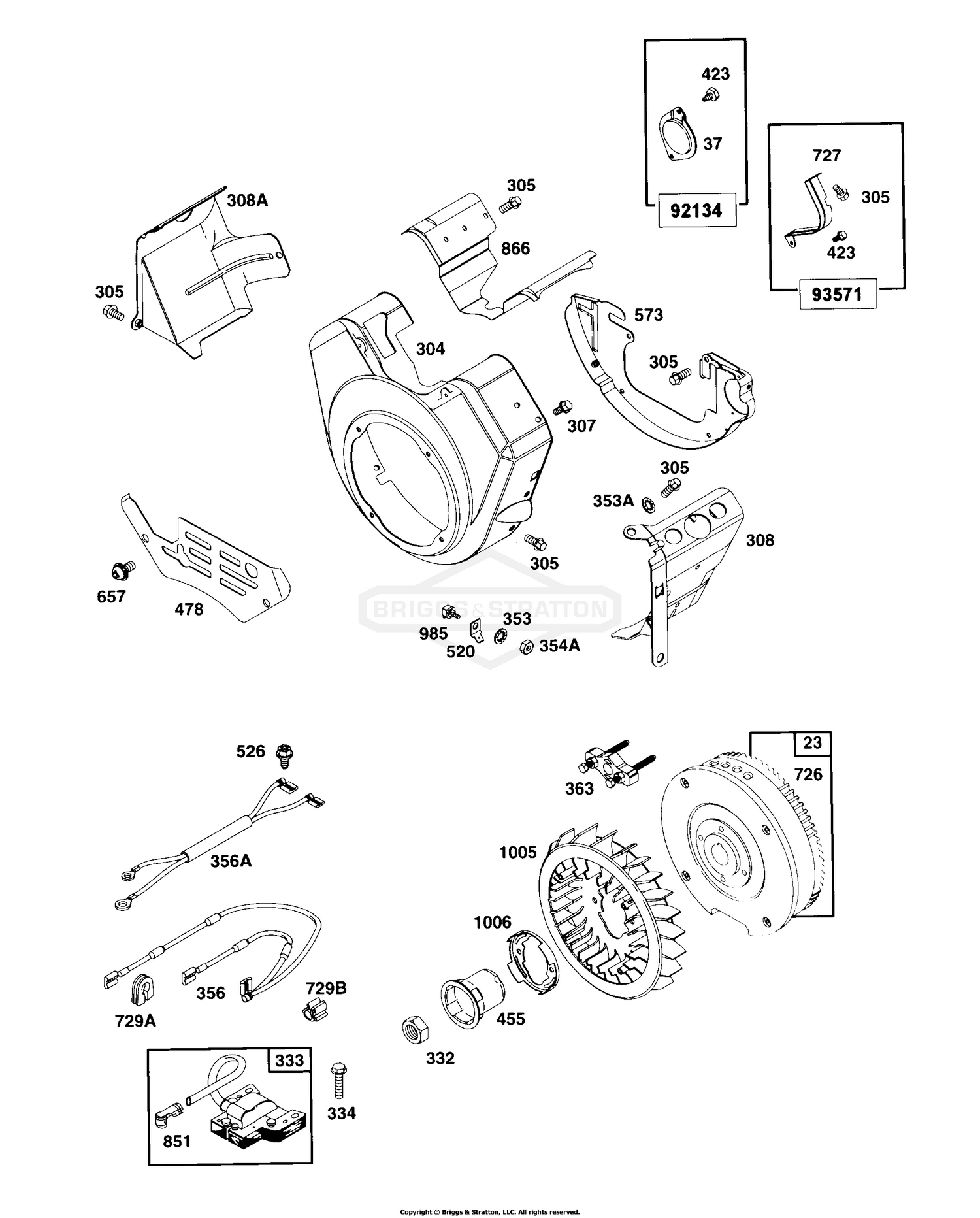

Engine - 19HP Briggs & Stratton (Part 5)

Engine - 19HP Briggs & Stratton (Part 5)

Parts (34)

RefPart NumberDescription
23 10692134 Flywheel Price: Call Us
37 10285109 Guard, Flywheel Price: Call Us
304 13392134 Housing, Blower Price: Call Us
305 66886 HHCS/LW M6-1.0 x 12 mm Price: Call Us
307 67898 HHCS/LW M8-1.25 x 16 mm Price: Call Us
308 16885110 Cover, Air Guide (cyl #1) Price: Call Us
308A 16985110 Cover, Air Guide (cyl #2) Price: Call Us
332 17185110 Nut, Flywheel Price: Call Us
333 67891 Armature, Magneto Price: Call Us
334 72356 HHCS/LW M4 x 7 mm Price: Call Us
353 17485110 Washer, Lock Price: Call Us
353A 17585110 Washer, Lock Price: Call Us
354A 17685110 Nut, Hex Price: Call Us
356 19385110 Wire, Stop Price: Call Us
356A 13792134 Wire, Stop Price: Call Us
363 17785110 Flywheel Puller Price: Call Us
423 66484 Screw, Phillips Hex Price: Call Us
455 14092134 Cup, Flywheel Price: Call Us
478 21285110 Cover, Carburetor Price: Call Us
520 18585110 Terminal Price: Call Us
526 18785110 Screw, Phillips Hex Price: Call Us
573 19285110 Plate, Back Price: Call Us
657 67820 Screw, Phillips Price: Call Us
726 20085110 Gear, Ring Price: Call Us
727 20185110 Cover, Starter Drive Price: Call Us
729A 20285110 Grommet Price: Call Us
729B 20385110 Clip, Wire Price: Call Us
851 7075272YP COVER RH This part replaces 75272. Price: $34.99
866 21085110 Cover, Air Guide Price: Call Us
985 21585110 Insulator Price: Call Us
1005 14892134 Fan, Flywheel Price: Call Us
1006 14992134 Retainer, Fan Price: Call Us
10193571 Valve Overhaul Kit Price: Call Us 10193571
13992134 Gasket Set Price: Call Us 13992134
