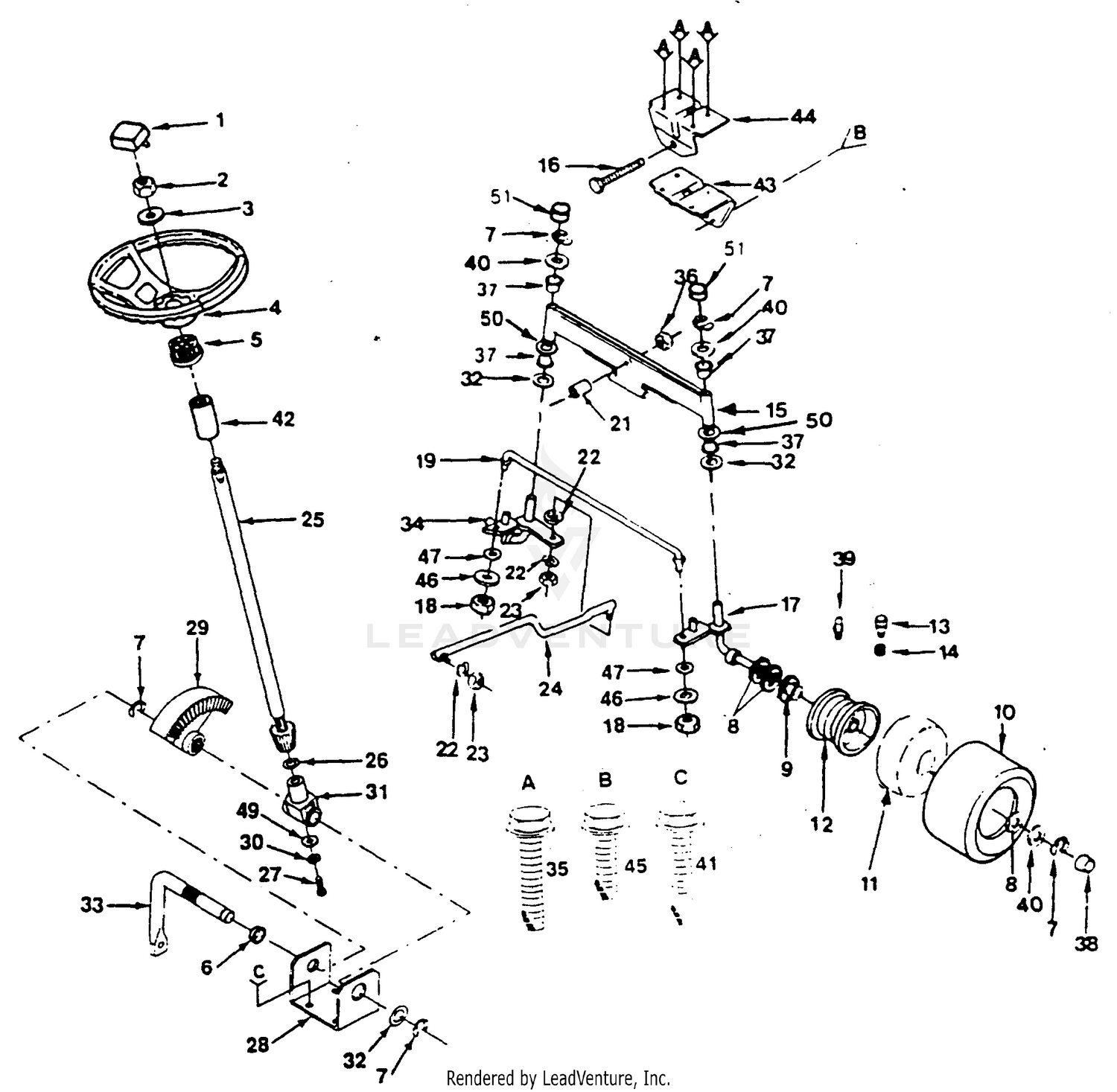

| Ref | Part Number | Description |
|---|
| 1 |
532100710 |
Insert, Steering Wheel Price: $10.20 |
| 1 |
87-6720 |
KNOB-SHIFT Price: $20.04 |
| 2 |
3218-18 |
NUT-JAM Price: $0.57 |
| 2 |
873940800 |
Nut, Hex, Jam, Toplock 1/2-20 Price: $3.99 |
| 3 |
131-3469 |
LEVER-SHIFT This part replaces 87-2040. Price: $109.40 |
| 3 |
532100712 |
Washer 17/32 x 2-1/4 x .160 Price: $2.42 |
| 4 |
532100713 |
Steering Wheel Price: $63.94 |
| 4 |
87-3650 |
PIN-SHIFT Price: $26.36 |
| 5 |
100-8359 |
CABLE-SHIFT Price: $268.85 |
| 5 |
532437747 |
STEERING.WHEEL.ADAPTER This part replaces 532100711. Price: $19.99 |
| 6 |
3220-1 |
NUT-JAM Price: $0.99 |
| 6 |
532109816 |
Nyliner, Snap-in Price: $2.99 |
| 7 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 7 |
812000029 |
Ring, Klip Price: $1.99 |
| 8 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 8 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Ga. Price: $1.99 |
| 9 |
532009040 |
Bearing, Flange This part replaces 532124959. Price: $3.99 |
| 9 |
87-3540 |
LINK-SHIFT Price: $16.87 |
| 10 |
3220-11 |
NUT-JAM Price: $0.81 |
| 10 |
532122073 |
TIRE.FRONT (15X6-6) TURF SAVER This part replaces 532106222. Price: $45.99 |
| 11 |
32121-48 |
PIN-SPRING Price: $0.61 |
| 11 |
532059904 |
Tube (Not furnished w/Tractor) Price: $22.69 |
| 12 |
100-6749 |
SHIFTER BRACKET ASM Price: $96.57 |
| 12 |
532106732 |
Rim Asm 6" Front This part replaces 532125121. Price: $59.99 |
| 13 |
532065139 |
Stem, Valve Price: $5.99 |
| 13 |
87-2520 |
TUBE-PIVOT Price: $7.51 |
| 14 |
532059192 |
Cap, Valve Price: $3.99 |
| 14 |
87-2900 |
SPRING-COMPRESSION Price: $25.40 |
| 15 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 15 |
532108075 |
Axle Assembly, Front Price: $62.55 |
| 16 |
32121-7 |
PIN-ROLL, SLOTTED Price: $0.31 |
| 16 |
874761060 |
Bolt, Hex 5/8-11 x 3-3/4 Price: $3.99 |
| 17 |
3290-507 |
PIN-DOWEL Price: $2.51 |
| 17 |
532130524 |
SPINDLE This part replaces 532105654. Price: $29.99 |
| 18 |
87-3660 |
SPRING-COMPRESSION Price: $13.46 |
| 18 |
873610500 |
NUT This part replaces 873810500. Price: Call Us |
| 19 |
532170162 |
ROD.ASM.TIE.BALL.JOINT.NOVAN This part replaces 532121334. Price: $59.99 |
| 19 |
87-3530 |
BUTTON-SHIFTER Price: $19.41 |
| 20 |
87-3520 |
CLEVIS Price: $27.68 |
| 21 |
532155134 |
KIT-AXLE This part replaces 532110438. Price: $13.26 |
| 21 |
83-1890 |
SWITCH-BALL Price: $63.08 |
| 22 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 22 |
539990118 |
WASHER.3/8 This part replaces 810040600. Price: $1.49 |
| 23 |
100-6751 |
DISCONTINUED Price: Call Us |
| 23 |
873680600 |
Nut This part replaces 873610600. Price: $1.99 |
| 24 |
532128122 |
Link, Drag Price: $3.33 |
| 24 |
87-4960 |
CLAMP-CABLE Price: $4.95 |
| 25 |
321-3 |
SCREW-HH Price: $0.28 |
| 25 |
532128755 |
Shaft, Steering Price: Call Us |
| 26 |
32128-33 |
NUT-HF Price: $0.25 |
| 26 |
532057079 |
Washer Price: $2.99 |
| 27 |
532165857 |
SCREW This part replaces 871070410. Price: $2.99 |
| 27 |
94-8157 |
SCREEN-SPARK ARRESTOR This part replaces 93-0899. Price: $74.51 |
| 28 |
532124036 |
Bracket, Assembly, Steering Price: $4.99 |
| 28 |
87-2310 |
CLEVIS-CABLE Price: $14.02 |
| 29 |
100-6741 |
SOLENOID Price: $215.43 |
| 29 |
532136874 |
Gear Sector This part replaces 532124034. Price: $45.99 |
| 30 |
100-6746 |
PIN-LIMITER, SHIFT Price: $55.84 |
| 30 |
810040400 |
Washer, Lock 1/4 Price: $3.99 |
| 31 |
100-6747 |
SOLENOID MOUNT ASM Price: $79.45 |
| 31 |
532160395 |
SUPPORT SHAFT This part replaces 532124035. Price: $6.99 |
| 32 |
042617 |
Engine Ground Cable Price: Call Us |
| 32 |
532006266 |
WASHER THRUST This part replaces 532124956. Price: $5.99 |
| 33 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 33 |
532156365 |
PITMAN SHAFT ASSY This part replaces 532124033. Price: $26.99 |
| 34 |
100-6754 |
SPRING-COMPRESSION Price: $32.82 |
| 34 |
532105656 |
Spindle Assembly, L.H. Price: $39.99 |
| 35 |
2412-81 |
CLAMP-R Price: $3.39 |
| 35 |
532122819 |
Screw, Hex, Special Price: $2.38 |
| 36 |
104-8798 |
BOOT-TERMINAL Price: $4.25 |
| 36 |
873681000 |
Nut, Crownlock This part replaces 873601000. Price: $3.99 |
| 37 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $1.99 |
| 38 |
532104757 |
Cap, Axle Price: $1.99 |
| 39 |
532000278 |
Fitting, Grease This part replaces 532124957. Price: $2.99 |
| 40 |
532121748 |
Washer 25/32 x 1-5/8 x 16 Ga. Price: $1.99 |
| 41 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 This part replaces 817490612. Price: $3.99 |
| 42 |
532100714 |
Tube, Shaft, Steering Price: $3.33 |
| 43 |
532105664 |
Support, Saddle, Front Price: $9.99 |
| 44 |
532105663 |
Support, Saddle, Rear Price: $8.25 |
| 45 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 46 |
810040500 |
Washer, Lock 5/16 Price: $2.99 |
| 47 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.02 |
| 49 |
819091016 |
Washer 9/32 x 5/8 x 16 Ga This part replaces 532126684. Price: $2.99 |
| 50 |
819272016 |
Washer 27/32 x 1-1/4 x 16 Ga. Price: $2.99 |
| 51 |
532121232 |
Cap, Spindle Price: $1.99 |
