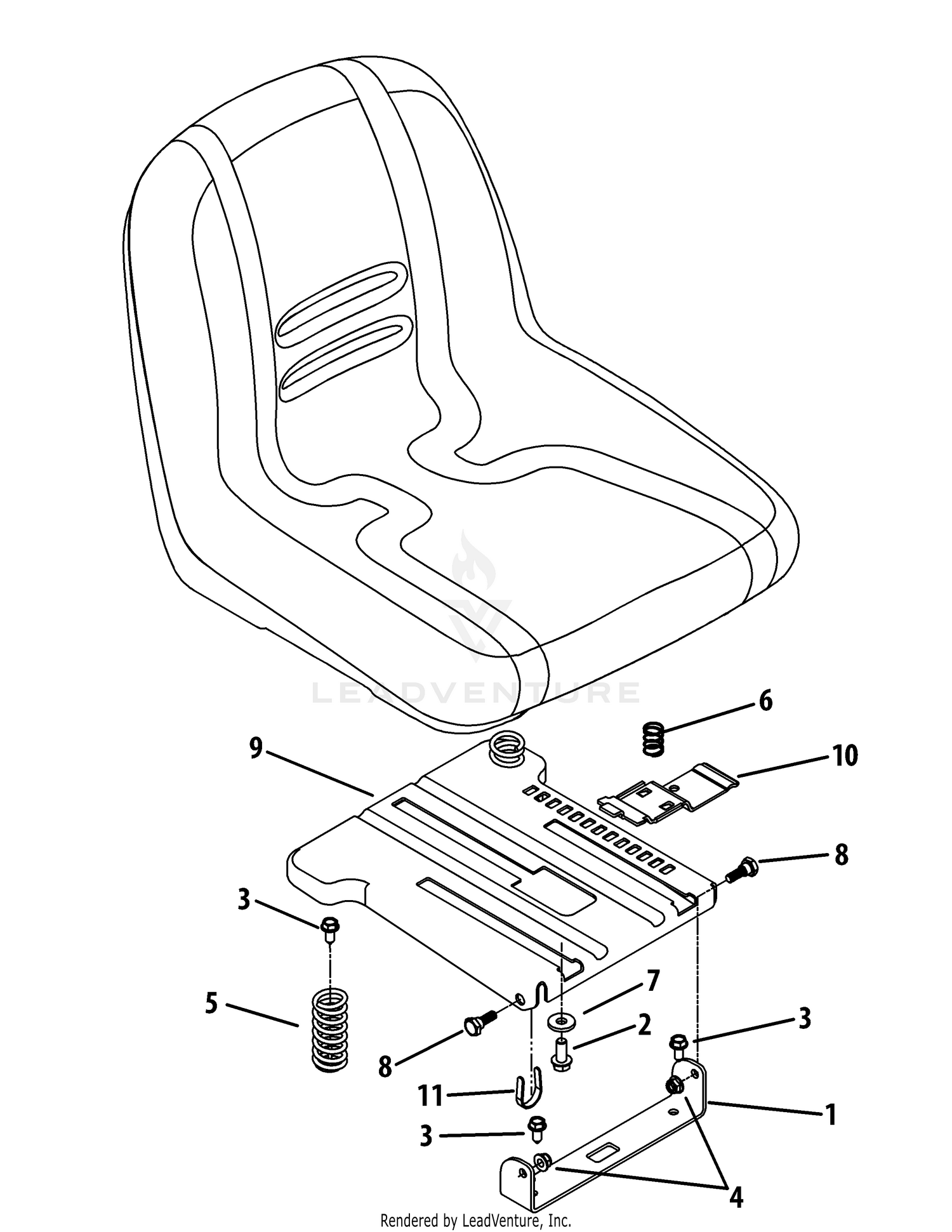

Seat Adjustment
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 703-08734-0637 | Seat Bracket Price: $28.91 |
| 3 | 710-04484 | SCREW 5/16-18 x .750 Price: $3.19 |
| 4 | 712-04063 | Flange Lock Nut, 5/16-18 Price: $3.56 |
| 5 | 732-04849 | Compression Spring Price: $11.50 |
| 6 | 732-04563 | Compression Spring Price: $4.74 |
| 7 | 736-0258 | Flat Washer, .385 x 1.0 x .135 Price: $3.93 |
| 8 | 738-0296 | Shoulder Screw, .437 x .286 This part replaces 938-0296. Price: $3.93 |
| 9 | 783-06049-0637 | Seat Mount Bracket Price: $60.14 |
| 10 | 783-06050 | Seat Adjustment Lever Price: $8.85 |
