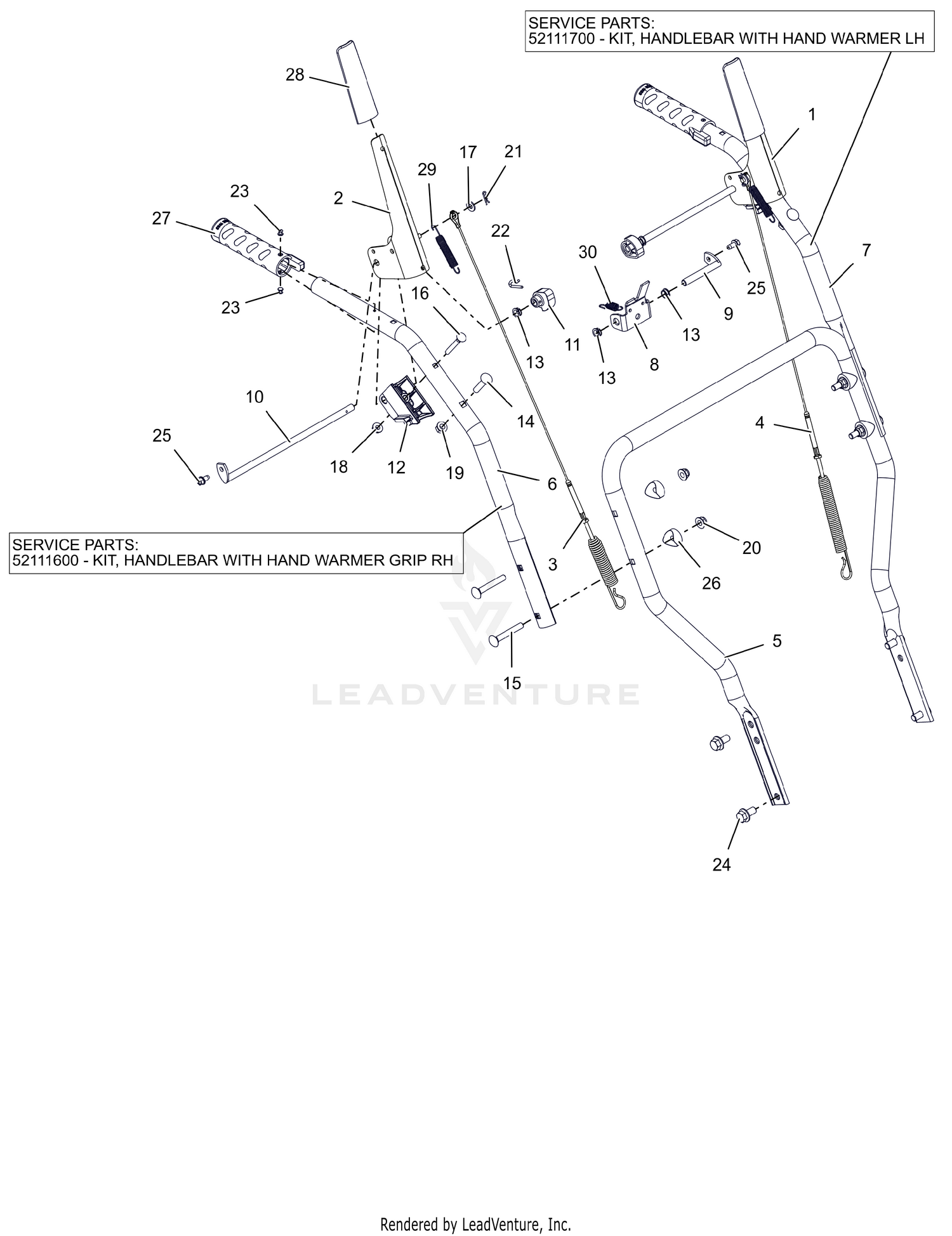

| Ref | Part Number | Description |
|---|
| 1 |
04310451 |
LEVER, CLUTCH-LH Price: $25.45 |
| 2 |
04310551 |
LEVER, CLUTCH-RH Price: $20.45 |
| 3 |
06900439 |
CABLE, AUGER (DELUXE & PRO) Price: $27.95 |
| 4 |
06900502 |
CABLE, UPPER TRACTION Price: $30.95 |
| 5 |
00373251 |
HANDLEBAR, LOWER Price: $89.95 |
| 6 |
04318151 |
HANDLEBAR, UPPER - RH Price: $50.45 |
| 7 |
04318251 |
HANDLEBAR, UPPER - LH Price: $45.95 |
| 8 |
04320400 |
BRACKET, INTERLOCK ARM Price: $18.45 |
| 9 |
04320500 |
ROD, PIVOT - INTERLOCK Price: $17.95 |
| 10 |
04320600 |
ROD, PADDLE MOUNT - PRO Price: $17.95 |
| 11 |
04322100 |
CAM, INTERLOCK Price: $3.95 |
| 12 |
05193600 |
BLOCK, CLUTCH PADDLE Price: $5.45 |
| 13 |
05500020 |
BUSHING, POLYLINER-.38 SNAPIN Price: $2.45 |
| 14 |
06200233 |
BLT,RHSN .31-18X1.50 G5 ZCC Price: $1.45 |
| 15 |
06200503 |
BLT-RHSN.31-18X2.25 G5 TBZ 120 Price: $3.45 |
| 16 |
06209300 |
BLT-RDHDXLSQNK .25-20X2.0 G5YZ Price: $2.45 |
| 17 |
06401001 |
WSHR,FLT .281X.625X.065 ZCC Price: $0.45 |
| 18 |
06500821 |
NUT-LK-CTR-FLG .25-20 ZC120 Price: $0.45 |
| 19 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC Price: $0.95 |
| 20 |
06501012 |
NUT-NYL-FLG.31-18 GF TBZ 120WR Price: $1.45 |
| 21 |
06700221 |
PIN, HAIR #178 .06X.77 ZCC Price: $0.45 |
| 22 |
06714500 |
PIN, SPRING CLIP Price: $2.45 |
| 23 |
06800038 |
RVT-POP #43 .125X.313 STL ZINC Price: $1.45 |
| 24 |
07001824 |
BLT Price: $1.45 |
| 25 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
| 26 |
07500005 |
SPACER, HANDLEBAR Price: $0.95 |
| 27 |
07500514 |
GRIP- HEATED HANDLE - BLACK Price: $43.45 |
| 28 |
07500533 |
SLEEVE- CLUTCH PADDLE Price: $3.45 |
| 29 |
08300527 |
SPRING, EXTENSION Price: $2.95 |
