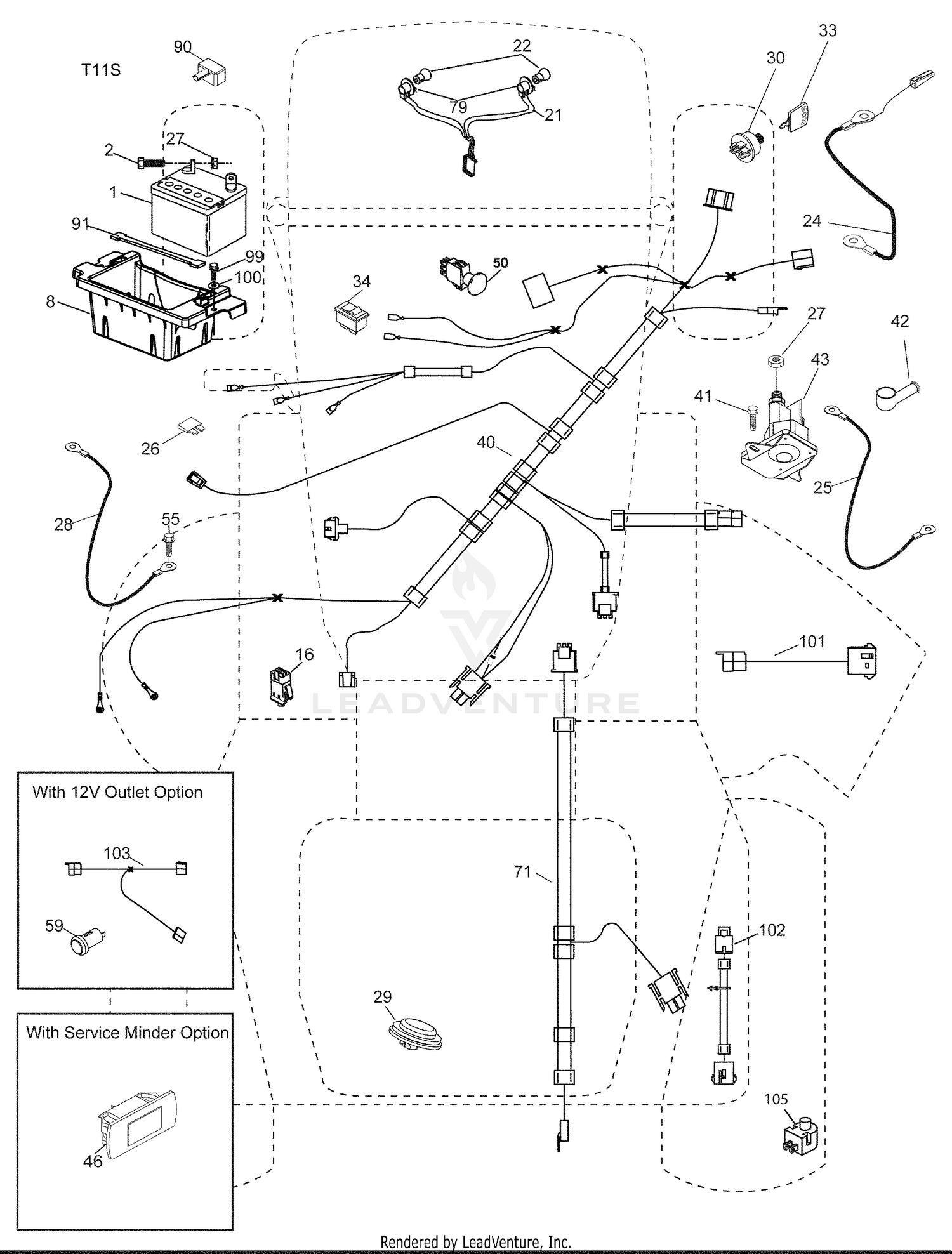

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
2412-133 |
CLAMP-R Price: $3.19 |
| 4 |
67-8820-01 |
RH HINGE ASM This part replaces 67-8820. Price: $26.10 |
| 5 |
43-3900-03 |
FAN BELT GUARD ASM This part replaces 43-3900. Price: $290.98 |
| 6 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 8 |
532414125 |
BOX BATTERY FULLY ASSEMBLED Price: $129.99 |
| 9 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 10 |
67-8810-01 |
LH HINGE ASM This part replaces 67-8810. Price: $26.95 |
| 11 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 12 |
67-8190-01 |
BRACKET-SUPPORT, ENGINE This part replaces 67-8190. Price: $50.66 |
| 13 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 14 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 16 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 18 |
212-93 |
CLAMP-CASING Price: $3.46 |
| 20 |
72-4320 |
SWITCH-BALL Price: $90.18 |
| 21 |
322-2 |
SCREW-HH Price: $0.69 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 22 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
237-30 |
O-RING Price: $2.50 |
| 24 |
43-8610 |
GUIDE Price: $23.35 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
43-8600 |
SPRING-COMPRESSION Price: $3.03 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 This part replaces 532412895. Price: $7.99 |
| 26 |
43-8860 |
PLUNGER-SWITCH Price: $11.85 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
43-8620 |
PIN-GUIDE, SWITCH Price: $88.57 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
237-7 |
O-RING Price: $8.82 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
218-461 |
NUT-HH Price: $2.50 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
43-8870 |
BOOT-SWITCH Price: $47.92 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 31 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 32 |
86-7040 |
ROD-PROP, SEAT Price: $29.51 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT This part replaces 532411933. Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
532401104 |
HARNESS.IGN.DASH.HUQ/P Price: $59.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 50 |
582107604 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532196112. Price: $29.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 90 |
532400724 |
COVER.TERMINAL.BATTERY Price: $3.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 101 |
532198317 |
PIGTAIL.MATNLK.NEW.HAR Price: $6.99 |
| 102 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
