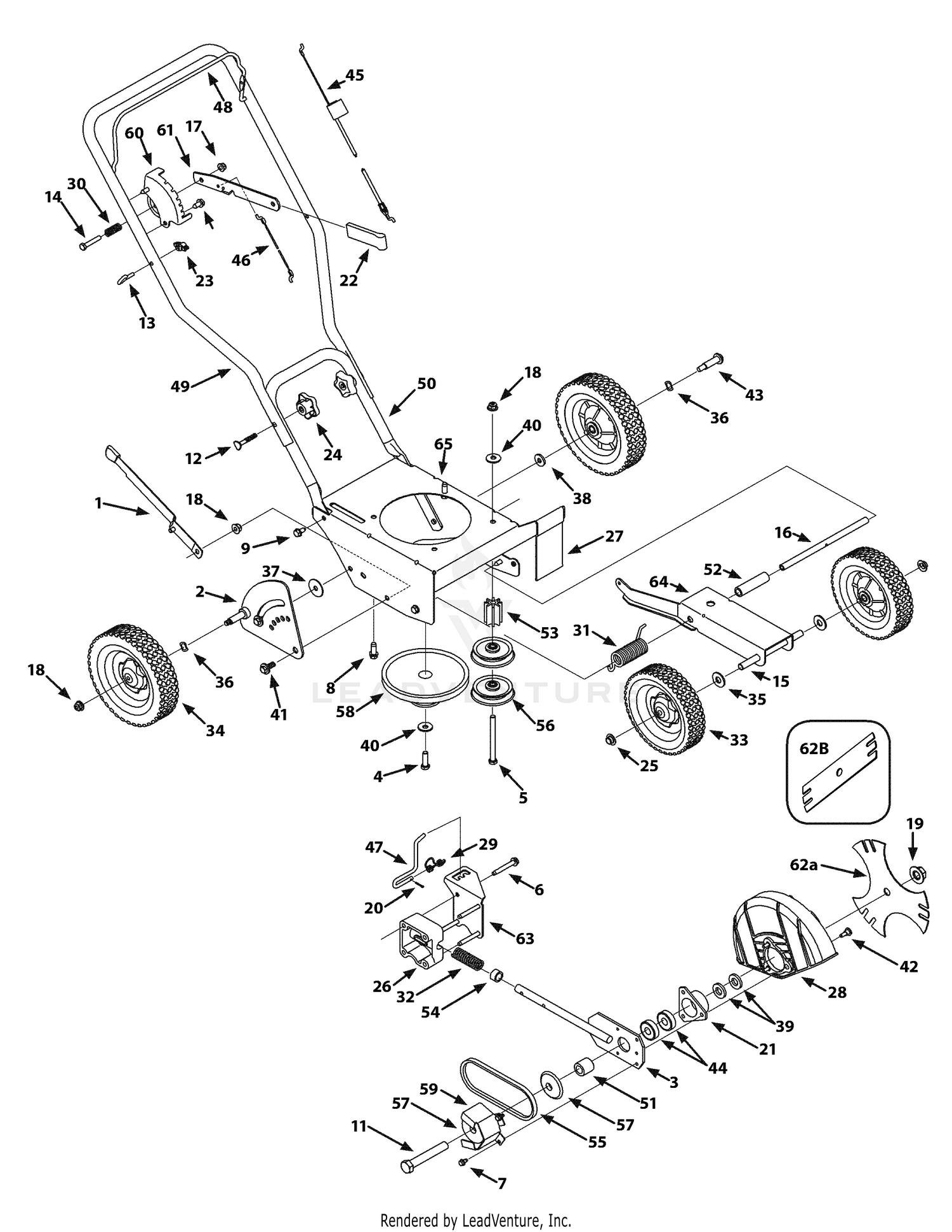

| Ref | Part Number | Description |
|---|
| 1 |
687-02022 |
Curb Height Adjustment Lever Price: $62.12 |
| 2 |
687-02125A |
HEIGHT LEVER ASSEMBLY Not Available Price: |
| 3 |
687-02126 |
Blade Plate Assembly Price: $49.22 |
| 4 |
710-0191 |
Screw 3/8-24 Price: $4.02 |
| 5 |
710-0411 |
Screw 3/8-16 Price: $7.16 |
| 6 |
710-04389 |
SCREW Price: $6.01 |
| 7 |
710-0599 |
Self-Tapping Screw, 1/4-20 Price: $3.86 |
| 8 |
710-0654A |
Screw, 3/8-16 Price: $3.75 |
| 9 |
710-0726 |
Hex Screw, 5/16-12 Price: $3.82 |
| 10 |
710-0870 |
Hex Screw, 5/16-18 Price: $5.44 |
| 11 |
710-1143A |
Hex Screw, 5/8-18 Price: $10.02 |
| 12 |
710-1174 |
Carriage Bolt, 5/16-18 Price: $6.28 |
| 14 |
710-3180 |
Hex Screw, 5/16-18 Price: $4.93 |
| 15 |
711-04361 |
AXLE SHAFT Not Available Price: |
| 16 |
711-04440 |
Frame Spacer.50 x 9.25 Price: $25.81 |
| 17 |
712-04063 |
Lock Flange Nut, 5/16-18 Price: $3.56 |
| 18 |
712-04065 |
Flange Nut, 3/8-16 Price: $3.68 |
| 19 |
712-0417A |
HEX NUT Price: $6.50 |
| 20 |
714-3010 |
Clevis Pin, 3/32 x .625 Price: $4.08 |
| 21 |
718-04012 |
Bearing Cup Price: $19.55 |
| 22 |
720-0142 |
Grip Price: $3.22 |
| 23 |
720-0279 |
Wing Nut Price: $3.93 |
| 24 |
720-04072A |
STAR KNOB 5/16-18 This part replaces 720-04072. Price: $6.07 |
| 25 |
726-0299 |
Push Cap 1/2'' Rod Price: $7.03 |
| 26 |
931-04207 |
Bearing Block This part replaces 731-04207. Price: $24.30 |
| 27 |
731-05063 |
Debris Guard Price: $5.34 |
| 28 |
731P05064 |
EDGER BLADE GUARD (W/LABEL) This part replaces 731-05064. Price: $23.87 |
| 29 |
732-0188A |
Double Torsion Spring Price: $11.77 |
| 30 |
932-0369 |
SPRING This part replaces 732-0369. Price: $8.84 |
| 31 |
732-04045 |
Torsion Spring Price: $13.38 |
| 32 |
932-04169 |
Compression Spring This part replaces 732-04169. Price: $9.41 |
| 33 |
734-1264 |
Front Wheel 7x 1.75 T-Tread Price: $48.53 |
| 34 |
734-1268 |
Rear Wheel 8 x 1.75 T-Tread Price: $66.45 |
| 35 |
736-0179 |
Flat Washer, 1/2 x 1.25 x .10 Price: $4.02 |
| 36 |
736-0232 |
Wave Washer .531 x .781 x .013 Price: $4.02 |
| 37 |
736-0234 |
Flat Washer, .385 x 1.5 x .075 Price: $5.29 |
| 38 |
736-0258 |
Flat Washer, .385 x 1.0 x .135 Price: $3.93 |
| 39 |
736-04088 |
Flat Washer, .635 x 1.24 x .181 Price: $3.90 |
| 40 |
736-0452 |
Bell Washer, .396 x 1.140 Price: $4.05 |
| 41 |
738-04149 |
Shoulder Screw, 3/8-16 Price: $3.89 |
| 42 |
738-0706D |
Screw This part replaces 738-0706C. Price: $3.89 |
| 43 |
738-0929 |
Shoulder Screw, 3/8-16 Price: $6.99 |
| 44 |
941-0524A |
Bearing, Ball, .625 x 40 x 12 This part replaces 7410524. Price: $20.36 |
| 46 |
946-04036 |
WHEEL ADJUSTMENT CABLE This part replaces 746-04036. Price: $16.05 |
| 47 |
747-04110A |
Blade Adjustment Rod This part replaces 747-04110. Price: $15.95 |
| 48 |
747-0976B |
BLADE CONTROL BAIL This part replaces 747-0976A. Price: $22.23 |
| 49 |
749-04183A |
UPPER HANDLE This part replaces 749-04183. Price: $61.13 |
| 50 |
749-04234 |
Lower Handle Price: $44.54 |
| 51 |
950-04105 |
Spacer, .63 x 1.12 x 1.06 This part replaces 750-04105. Price: $13.42 |
| 52 |
750-04129 |
Spacer Price: $4.02 |
| 53 |
950-04142 |
MOUNT SPACER This part replaces 750-04142. Price: $12.57 |
| 54 |
750-0547 |
Spacer, .64 x .88 x .50 Price: $4.83 |
| 55 |
954-04032B |
V-Belt This part replaces 754-04032B. Price: $23.31 |
| 56 |
756-04148 |
Flat Idler Pulley, 2.5 OD Price: $36.64 |
| 57 |
956-0449 |
Sheave This part replaces 756-0449. Price: $13.09 |
| 58 |
756-1150A |
Combination Flywheel Pulley Price: $144.01 |
| 59 |
781-0427-0637 |
Belt Guard This part replaces 781-0427. Price: $19.06 |
| 60 |
781-0741A |
Depth Index Bracket Price: $6.66 |
| 61 |
781-0742-0637 |
LEVER DEPTH This part replaces 781-0742. Price: $34.94 |
| 62A |
781-0748 |
Tri-Star Blade Price: $24.87 |
| 62B |
781-0080-0637 |
Blade, Edger This part replaces 781-0080. Price: $7.95 |
| 63 |
787-01081A |
Cover Plate Price: $4.31 |
| 64 |
787-01239 |
Dual Wheel Bracket Price: $32.21 |
