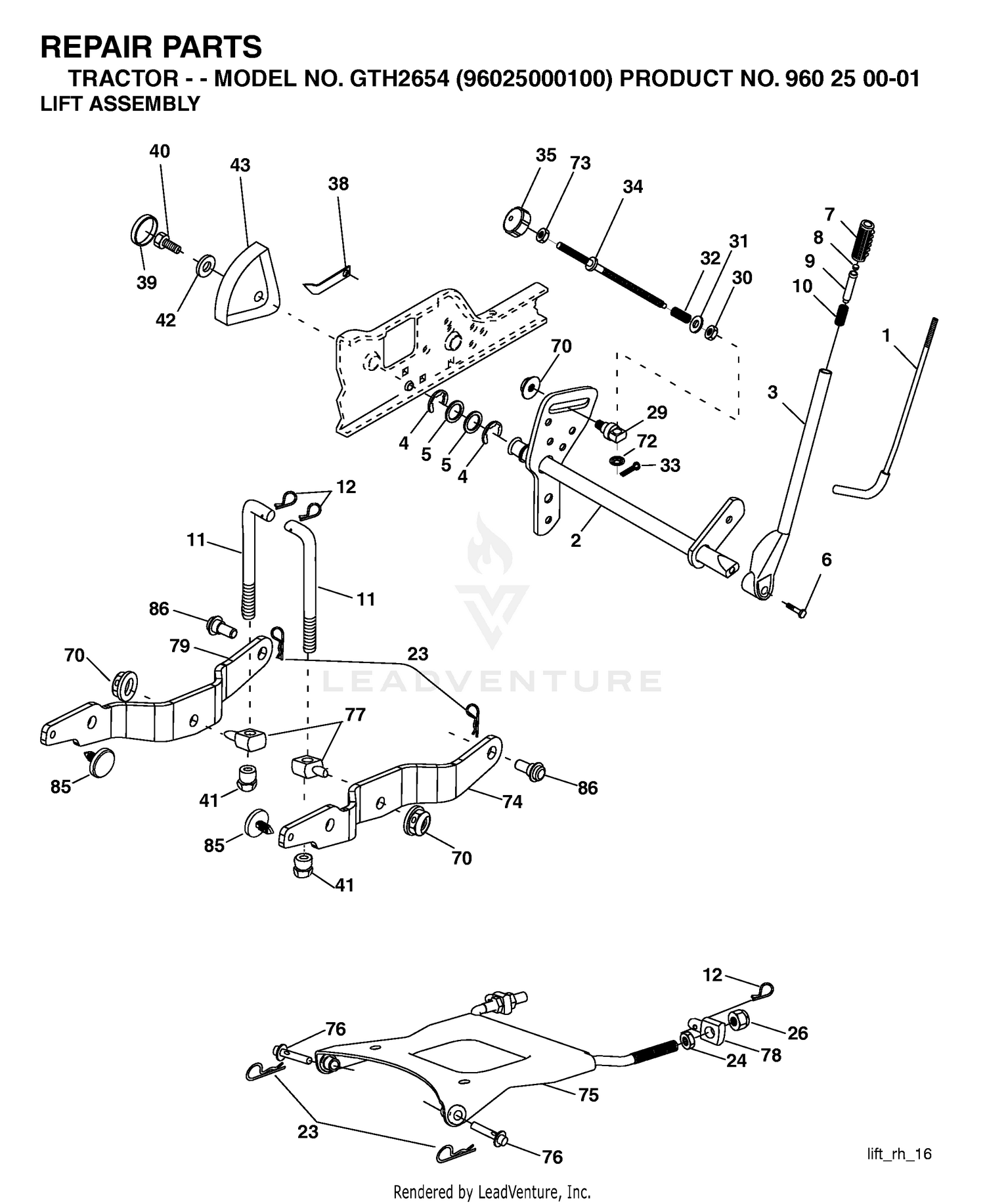

| Ref | Part Number | Description |
|---|
| 1 |
32128-20 |
NUT-HF Price: $0.99 |
| 1 |
532121006 |
LEVER ROD LT Price: $24.99 |
| 2 |
532180045 |
SHAFT ASM., LIFT VGT Price: $59.99 |
| 2 |
93-7703-03 |
PLATE-CLAMP, GUARD Price: $28.49 |
| 3 |
32153-3 |
NUT-HEX, SIDE DEFORM Price: $5.59 |
| 3 |
532159189 |
LEVER ASSY-LIFT RH Price: $79.99 |
| 4 |
812000022 |
E-RING Price: $3.99 |
| 4 |
94-1756 |
CLAMP - MUFFLER Price: $12.55 |
| 5 |
93-4418-03 |
GUARD-MANIFOLD Price: $523.00 |
| 6 |
871110624 |
Bolt, Fin Hex 3/8-16 x 1-1/12 Price: $2.99 |
| 7 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 7 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 9 |
323-9 |
SCREW-HH Price: $1.29 |
| 9 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122364. Price: $5.99 |
| 10 |
32128-29 |
NUT-LOCK, FLANGE Price: $1.63 |
| 10 |
532183894 |
SPRING 0.620D X 2.125 Price: $4.99 |
| 11 |
47-2830 |
SCREW Price: $0.34 |
| 11 |
532181576 |
LIFT LINK This part replaces 532175375. Price: $9.99 |
| 12 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 12 |
93-4419-03 |
GUARD-MUFFLER, REAR Price: $298.94 |
| 13 |
322-6 |
SCREW-HH Price: $0.45 |
| 14 |
93-4417 |
U-BOLT Price: $30.13 |
| 15 |
3256-82 |
WASHER-FLAT Price: $0.47 |
| 16 |
93-4416-03 |
BRACKET-SUPPORT MUFFLER Price: $58.91 |
| 17 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 18 |
93-0198-03 |
BRACKET-SUPPORT, MUFFLER Price: $70.77 |
| 19 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 22 |
93-4000-03 |
STRAP-SUPPORT, MUFFLER Price: $51.06 |
| 23 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 23 |
93-0199-03 |
STRAP-SUPPORT, MUFFLER Price: $61.23 |
| 24 |
33114-016 |
SCREW-HH Price: $0.27 |
| 24 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 25 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 26 |
2112-11 |
CLAMP-MUFFLER Price: $7.37 |
| 26 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 27 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 29 |
532150233 |
TRUNNION Price: $9.99 |
| 30 |
2412-103 |
CLAMP Price: $2.51 |
| 30 |
532110807 |
NUT T Price: $3.99 |
| 31 |
13-2650 |
BELT-V Price: $177.37 |
| 31 |
819131016 |
WASHER Price: $2.99 |
| 32 |
3-9155 |
KEY-SQUARE Price: $11.44 |
| 32 |
532137150 |
SPRING.COMP.INF.H Price: $4.99 |
| 33 |
13-3330 |
BUSHING Price: $47.20 |
| 33 |
596917601 |
Pins This part replaces 876020308. Price: $1.99 |
| 34 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 34 |
532137167 |
ROD.LIFT.ADJUSTABLE Price: $5.99 |
| 35 |
321-6 |
SCREW-HH Price: $0.25 |
| 35 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 36 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 37 |
323-10 |
SCREW-HH Price: $0.89 |
| 38 |
4-1920 |
WASHER Price: $26.67 |
| 38 |
532155097 |
POINTER, HEIGHT INDICATOR(2 2) Price: $4.99 |
| 39 |
13-3320 |
SHEAVE Price: $893.43 |
| 39 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 40 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 40 |
593337601 |
Screws This part replaces 817060516. Price: $3.99 |
| 41 |
107-1050 |
CLUTCH-CENTRIFUGAL This part replaces 106-9652. Price: $5,481.65 |
| 41 |
589464902 |
NUT.LIFT LNK.7/16-2 This part replaces 532175994. Price: $3.99 |
| 42 |
324-31 |
SCREW-HH Price: $6.65 |
| 42 |
819112410 |
WASHER Price: $3.99 |
| 43 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 43 |
532123934 |
HEIGHT INDICATOR Price: $2.99 |
| 44 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 46 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 47 |
3255-16 |
WASHER-LOCK/EXT Price: $0.61 |
| 70 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 72 |
532110452 |
NUT PUSH M Price: $2.99 |
| 73 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 74 |
532187277 |
ARM.SUSP.REAR.RH Price: $37.99 |
| 75 |
532175805 |
PLATE ASM SUSP FRONT Price: $69.99 |
| 76 |
532175560 |
PIN.FLANGE Price: $11.99 |
| 77 |
532176205 |
TRUNNION Price: $6.99 |
| 78 |
532175689 |
TRUNNION Price: $3.99 |
| 79 |
532187276 |
ARM SUSPENSION LH Price: $35.99 |
| 85 |
532189013 |
INSERT WEAR (3 2) Price: $6.99 |
| 86 |
532188528 |
BOLT.SHOULDER Price: $5.99 |
