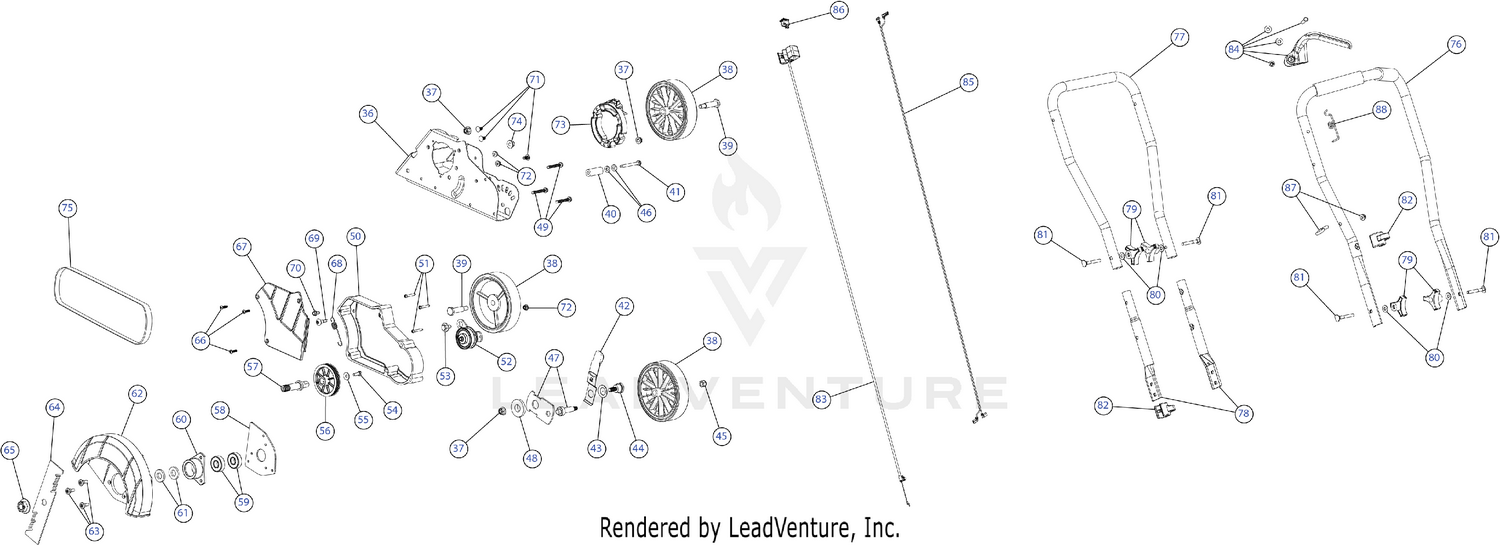

| Ref | Part Number | Description |
|---|
| 36 |
753-06547 |
FRAME Price: $43.79 |
| 37 |
712-04065 |
NUT Price: $3.68 |
| 38 |
734-04261 |
WHEEL 5-1.5 GRAY Price: $18.51 |
| 39 |
938-0373 |
SHOULDER SCREW Price: $8.45 |
| 40 |
750-04783 |
SPACER Price: $3.36 |
| 41 |
710-1206 |
SCREW 1/4-20 x 2.375 Price: $6.20 |
| 42 |
687-02583S |
Height Adjustment Lever Assembly Price: Call Us |
| 43 |
736-0741 |
BELL WASHER Price: $3.99 |
| 44 |
738-1172 |
SHOULDER SCREW .75 X.50 X3/8-16 Price: $5.01 |
| 45 |
712-0130 |
HEX NUT INS L-3/8-16 Price: $3.61 |
| 46 |
750-04929 |
SPACER Price: $3.88 |
| 47 |
687-02582S |
PIVOT ARM Price: $3.43 |
| 48 |
753-06287 |
BEARING Price: $2.16 |
| 49 |
710-1026 |
SCREW 1/4-20 x 1.750 Price: $5.94 |
| 50 |
753-06556 |
SPACER Price: $2.83 |
| 51 |
753-06559 |
SCREW 8-16X1.25 Price: $2.32 |
| 52 |
753-05540 |
IDLER PULLEY ASSEMBLY Price: $33.52 |
| 53 |
738-0930 |
SHOULDER SCREW .560X.165: 5/16-18 Price: $6.07 |
| 54 |
710-3015 |
SCREW 1/4-20X.75 GR5 Price: $3.65 |
| 55 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 56 |
756-04087B |
PULLEY Price: $11.10 |
| 57 |
753-05543 |
BLADE SPINDLE Price: $18.96 |
| 58 |
787-01505 |
SPINDLE MOUNT PLATE Price: $6.17 |
| 59 |
741-04547 |
BALL BEARING Price: $8.29 |
| 60 |
718-04012 |
BEARING CUP Price: $19.55 |
| 61 |
736-04088 |
Flat Washer, .635 x 1.24x x.181 This part replaces 936-04088. Price: $3.90 |
| 62 |
731P05064 |
EDGER BLADE GUARD (W/LABEL) Price: $23.87 |
| 63 |
738-0706D |
SHOULDER SCREW .375X.280:1/4-14 Price: $3.89 |
| 64 |
781-0080-0637 |
EDGER BLADE Price: $7.95 |
| 65 |
712-0417A |
HEX NUT Price: $6.50 |
| 66 |
710-04194 |
SCREW 8-16 x 3/4 Price: $3.66 |
| 67 |
731-05822 |
BELT COVER Price: $9.85 |
| 68 |
753-06562 |
SPRING Price: $2.83 |
| 69 |
753-06563 |
BOLT 1/4-20 Price: $2.32 |
| 70 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 71 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 753-06565. Price: $4.26 |
| 72 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 73 |
753-06566 |
SPACER Price: $5.34 |
| 74 |
753-06564 |
NUT 5/16X18 Not Available Price: |
| 75 |
754-04149 |
BELT Price: $26.86 |
| 76 |
753-06542 |
HANDLE UP Price: $25.15 |
| 77 |
753-06543 |
HANDLE MID Price: $19.36 |
| 78 |
753-06544 |
HANDLE EXT Price: $6.10 |
| 79 |
791-182677 |
KNOB, 3-PRONG ¼ "- Price: $12.48 |
| 80 |
4150 |
WASH, FLAT SPECIAL Price: $2.63 |
| 81 |
791-182899 |
BOLT, CARRIAGE CRV Price: $6.82 |
| 82 |
731-1820 |
CABLE GUIDE Price: $7.65 |
| 83 |
753-06546 |
THROTTLE CABLE Price: $8.76 |
| 84 |
753-10504 |
THROTTLE LEVER This part replaces 753-06592. Price: $5.44 |
| 85 |
9681 |
WIRE LEAD Price: $6.17 |
| 86 |
791-182405 |
SW, MOMENTARY ON/O Price: $9.29 |
| 87 |
753-05524 |
ROPE GUIDE Price: $6.01 |
