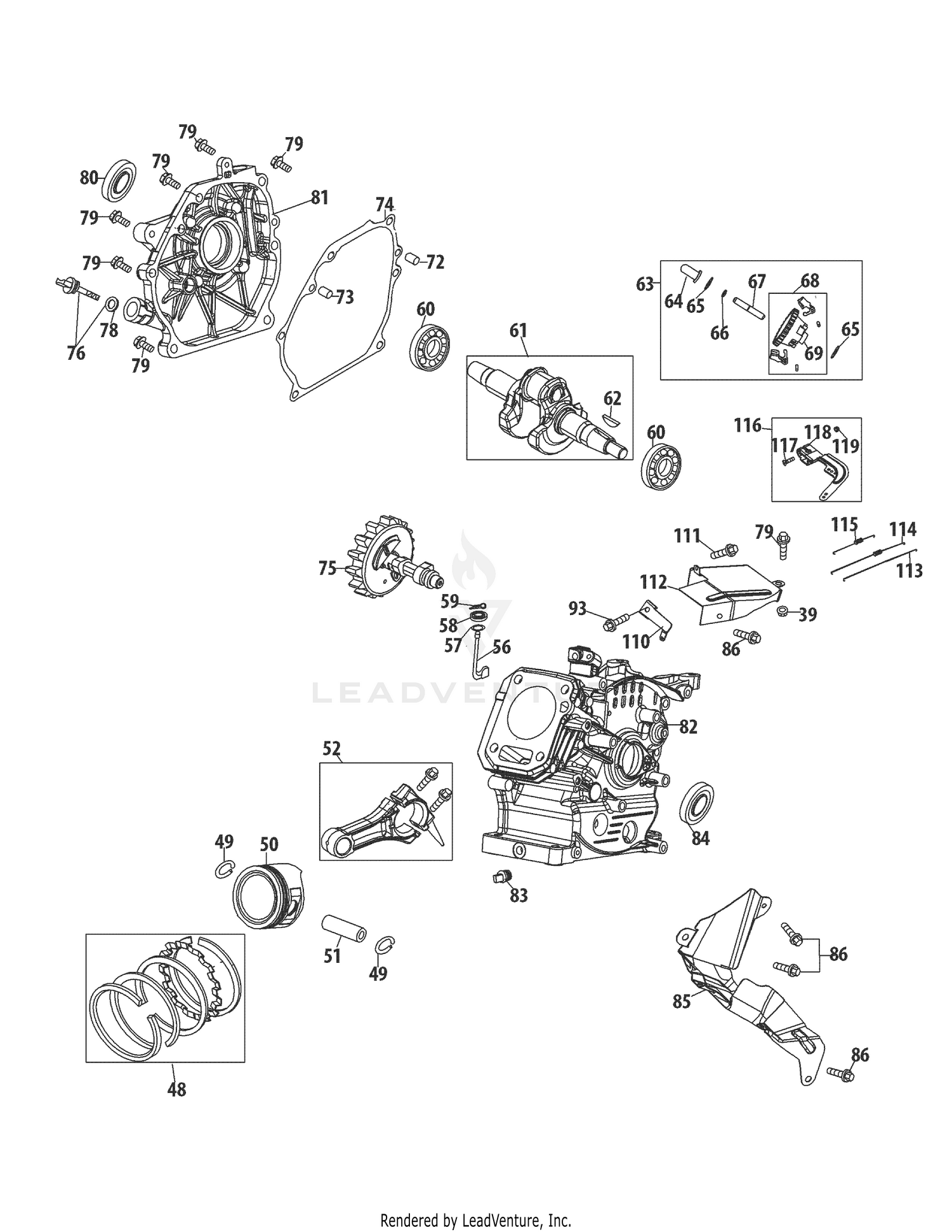

| Ref | Part Number | Description |
|---|
| 39 |
712-05015 |
Flange Nut M6 Price: $5.78 |
| 48 |
951-12615 |
Piston Ring Set Price: $16.62 |
| 49 |
951-11603 |
Piston Pin Snap Ring Price: $3.53 |
| 50 |
951-11828 |
PISTON Not Available Price: |
| 51 |
951-11604 |
Piston Pin Price: $6.66 |
| 52 |
951-12616 |
Connecting Rod Price: $67.65 |
| 56 |
951-14053 |
Shaft,Governor Arm Price: $13.94 |
| 57 |
736-04461 |
O-Ring 5.2×1.9 Price: $3.50 |
| 58 |
951-11902A |
OIL SEAL This part replaces 951-11902. Price: $3.36 |
| 59 |
714-04078 |
Cotter Pin Price: $3.66 |
| 60 |
951-11369 |
Bearing Price: $30.42 |
| 61 |
951-14080 |
CRANKSHAFT Not Available This part replaces 751-14080. Price: |
| 62 |
751P10307A |
WOODRUFF KEY This part replaces 951-10307. Price: $2.01 |
| 63 |
951-12617 |
Governor Gear Price: $10.07 |
| 64 |
931-09595 |
Governor Cup Price: $4.85 |
| 65 |
936-05038 |
Washer 6.2×0.6×15 Price: $4.07 |
| 66 |
916-05003 |
Retaining Rings, Governor Shaft Price: $4.89 |
| 67 |
911-06137 |
Governor Shaft Price: $6.03 |
| 68 |
917-05007 |
Governor Body Price: $11.42 |
| 69 |
917-05152 |
Governor Gear Price: $10.22 |
| 72 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04096. Price: $3.66 |
| 73 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04092. Price: $3.66 |
| 74 |
951-12618 |
Gasket, Crankcase Cover Price: $12.27 |
| 75 |
951-12046 |
Camshaft Price: $57.39 |
| 76 |
951-12619 |
Dipstick Price: $9.97 |
| 78 |
951-11577 |
O-RING 15.8 x 2.5 Price: $3.53 |
| 79 |
710-04943 |
Bolt M6×28 Price: $3.76 |
| 80 |
751P11368A |
OIL SEAL This part replaces 951-11368. Price: $2.70 |
| 81 |
951-14081 |
CRANKCASE COVER Not Available This part replaces 751-14081. Price: |
| 82 |
951-14671 |
CRANKCASE This part replaces 751-14671. Price: $174.76 |
| 83 |
951-12514A |
Oil Drain Plug This part replaces 710-04907. Price: $5.48 |
| 84 |
951-12622 |
Oil Seal 22×35×7 Price: $12.42 |
| 85 |
951-14781 |
SHROUD This part replaces 751-14781. Price: $10.34 |
| 86 |
710-04914 |
Bolt M6×10 Price: $3.71 |
| 93 |
710-04915 |
Bolt M6×12 Price: $3.82 |
| 110 |
951-11104 |
Governor Spring Bracket Price: $3.18 |
| 111 |
710-04921 |
Bolt M8×14 Price: $4.75 |
| 112 |
951-14845 |
GOVERNOR SHIELD Not Available This part replaces 751-14845. Price: |
| 113 |
951-11152 |
Throttle Linkage Price: $6.25 |
| 114 |
951-10954 |
Idle Spring Price: $5.68 |
| 115 |
951-10953 |
Governor Return Spring Price: $5.42 |
| 116 |
951-14089 |
Governor Lever Price: $6.67 |
| 117 |
710-04908 |
Bolt M6×21 Price: $5.65 |
| 118 |
951-11106 |
Governor Lever Price: $6.89 |
