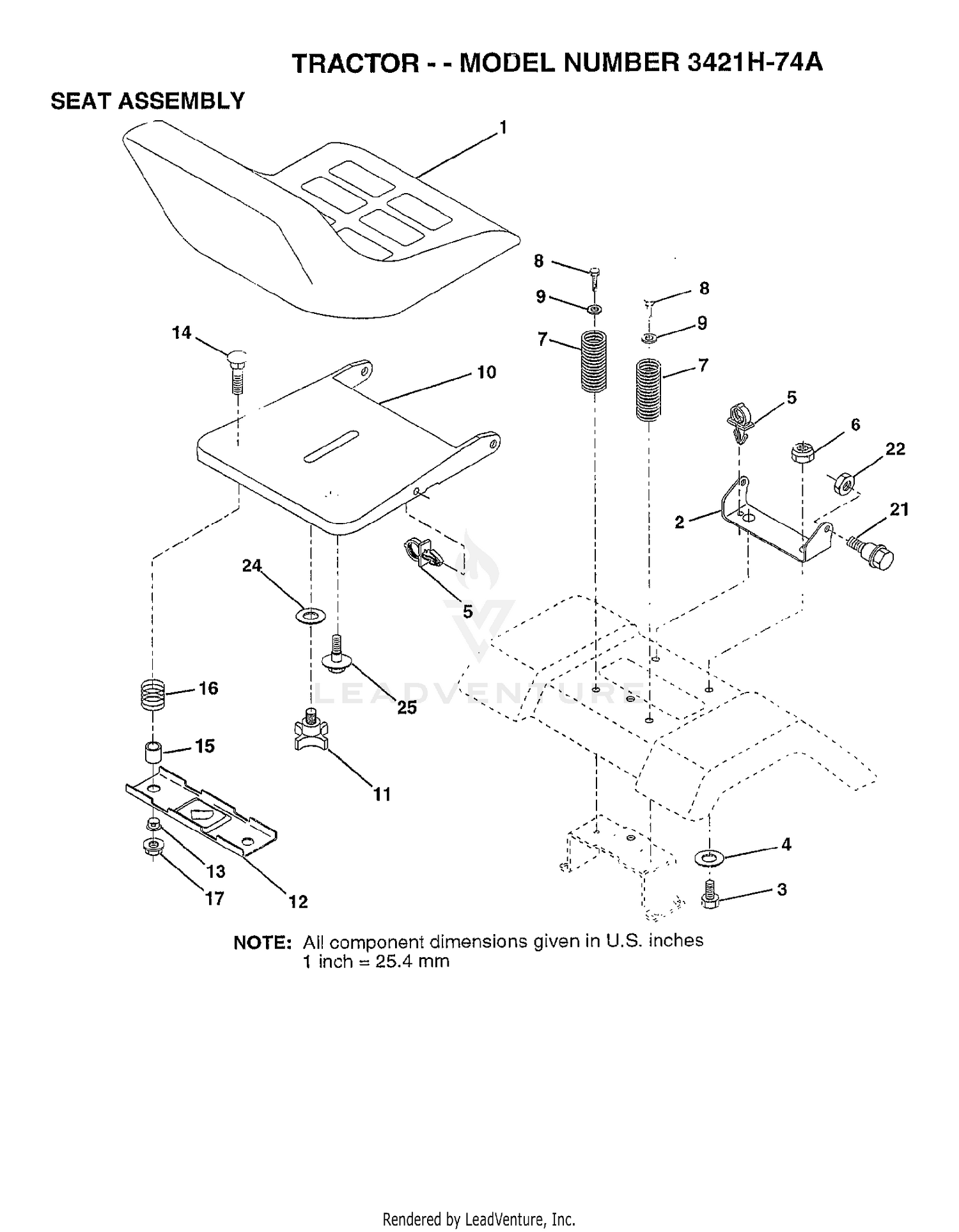

| Ref | Part Number | Description |
|---|
| 1 |
532127429 |
Seat V550 Blk/blk Std (AYP part number) Price: $129.99 |
| 2 |
18-4330 |
DISCONTINUED Price: Call Us |
| 2 |
532126656 |
Bracket, Pivot Seat (AYP part number) This part replaces 532105513. Price: $5.46 |
| 3 |
874780616 |
BOLT This part replaces 874760614. Price: $3.99 |
| 4 |
819131610 |
WASHER PM Price: $3.99 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
873680600 |
LOCKNUT This part replaces 532062336. Price: $1.99 |
| 7 |
18-4280 |
DISCONTINUED Price: Call Us |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 8 |
18-4260 |
SCREW-LOCKWASHER ASM Price: $4.08 |
| 8 |
817000616 |
SCREW 3/8-16X1 This part replaces 817490616. Price: $3.99 |
| 9 |
18-4270 |
CLAMP-BALL RETURN Price: $3.11 |
| 9 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532155925. Price: $14.99 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $4.99 |
| 13 |
532121248 |
BUSHING Price: $3.99 |
| 14 |
872050411 |
BOLT CARRIAGE 1/4-20X1 3/8 Price: $2.99 |
| 15 |
532121249 |
SPACER SPLIT Price: $3.99 |
| 16 |
28-8220 |
ADJUSTER-NUT LASH Price: $15.11 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 17 |
28-8210 |
BOLT-FLANGE HEX HD Price: $12.00 |
| 17 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 19 |
28-8280 |
SEAL KIT-HOUSING COVER This part replaces 18-4180. Price: $43.80 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532153236. Price: $1.99 |
| 22 |
39-7430 |
O-Ring, Spool Valve Price: Call Us |
| 22 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 24 |
18-4240 |
DISCONTINUED Price: Call Us |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 28 |
18-4320 |
DISCONTINUED Price: Call Us |
| 30 |
28-8200 |
SEAL-O RING Price: $11.19 |
| 44 |
39-7440 |
DISCONTINUED Price: Call Us |
| 45 |
39-7420 |
DISCONTINUED Price: Call Us |
| 50 |
18-4200 |
PITMAN SHAFT BRG Price: $161.03 |
| 55 |
18-4340 |
PLUG-END, RACK PISTON Price: $25.30 |
