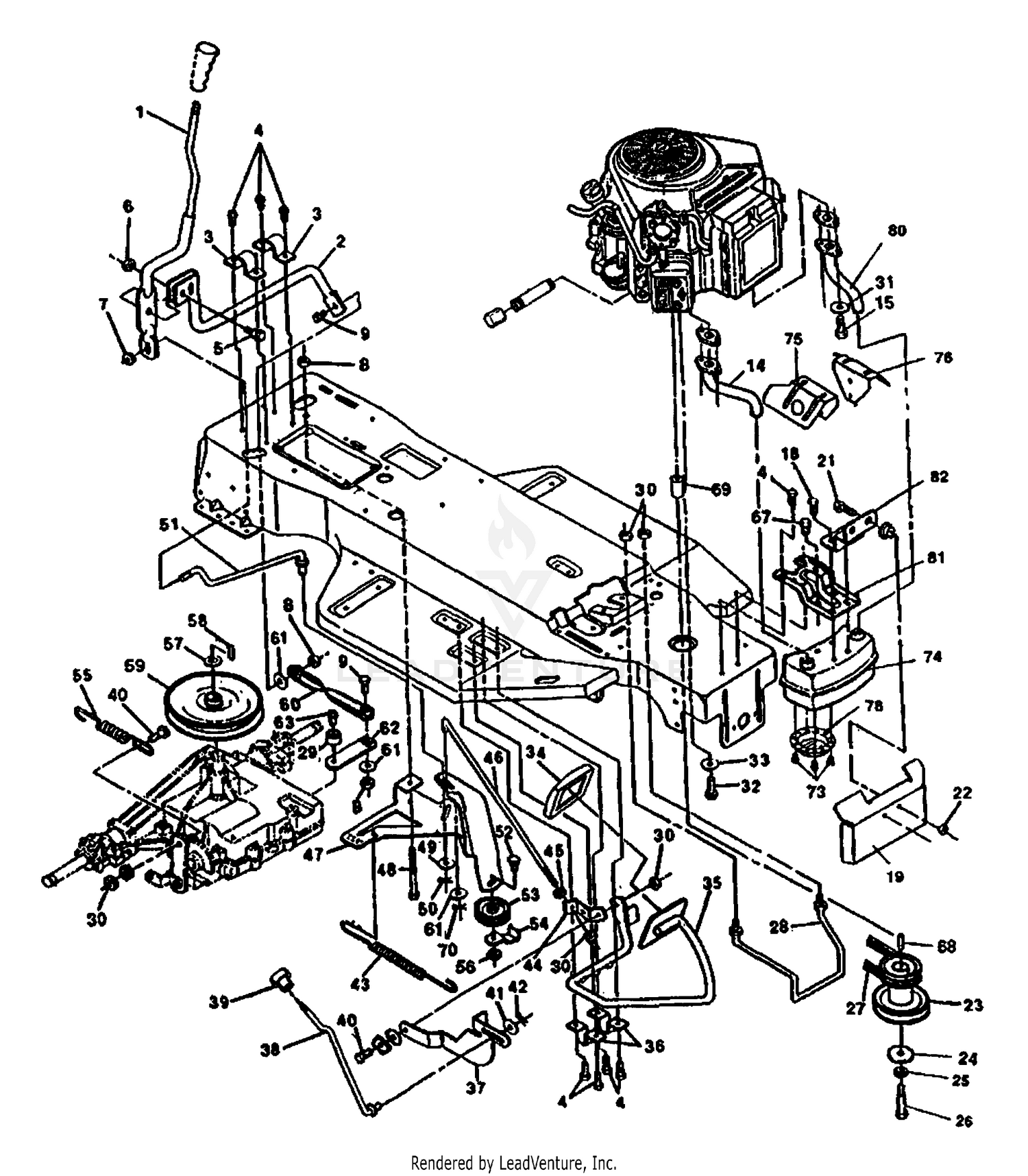

Engine Mount Assembly
Parts (67)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 533304406 | LEVER Price: $249.99 |
| 2 | 533304024 | SHIFT Price: $32.99 |
| 3 | 533302538 | CLIP Price: $6.01 |
| 4 | 596030701 | Screws This part replaces 533035497. Price: $2.99 |
| 5 | 533304086 | BOLT NLA Price: $8.03 |
| 6 | 601002318 | RP NUT This part replaces 533001502. Price: $9.99 |
| 7 | 596322601 | Nuts This part replaces 533071046. Price: $2.99 |
| 8 | 596322601 | Nuts This part replaces 533001499. Price: $2.99 |
| 9 | 874760620 | BOLT This part replaces 533122145. Price: $4.99 |
| 14 | 533305554 | PIPE, R.H. Price: $93.99 |
| 15 | 596030501 | SCREW HEXAGON HEAD SCREW 5/16- This part replaces 533180077. Price: $3.99 |
| 18 | 533995346 | SCREW Price: $8.99 |
| 21 | 596136401 | Bolts This part replaces 533126211. Price: $2.99 |
| 22 | 533055273 | NUT Price: $1.99 |
| 23 | 533306590 | PULLEY, ASSY ENG. Price: $599.99 |
| 24 | 533056431 | WASHER Price: $6.49 |
| 25 | 533120383 | LOCK WASHER Price: $3.99 |
| 26 | 533428644 | SCREW Price: $27.99 |
| 27 | 533303241 | BELT Price: $50.93 |
| 28 | 533310162 | BELT GUIDE Price: $17.99 |
| 29 | 533057157 | WASHER Price: $3.53 |
| 30 | 601000059 | NUT, 5/16-18 REGHEXCTRLK This part replaces 533001498. Price: $5.99 |
| 31 | 596238801 | WASHER SPRING LOCK WASHER WITH This part replaces 533120638. Price: $2.99 |
| 32 | 874760620 | BOLT This part replaces 533050947. Price: $4.99 |
| 33 | 533138489 | WASHER Price: $3.99 |
| 34 | 533302335 | PAD This part replaces 533304490. Price: $35.95 |
| 35 | 533308642 | ARM Price: $229.99 |
| 36 | 533313271 | BRACKET NLA This part replaces 533302337. Price: $9.03 |
| 37 | 533304208 | ARM Price: $59.99 |
| 38 | 533304217 | ROD Price: $89.99 |
| 39 | 533304367 | KNOB Price: $24.99 |
| 40 | 533025086 | BOLT Price: $24.99 |
| 41 | 734115301 | Washer This part replaces 533120385. Price: $0.34 |
| 42 | 533121223 | PIN Price: $3.99 |
| 43 | 601000212 | SPRING, CLUTCH This part replaces 533035410. Price: $18.19 |
| 44 | 533304125 | BRACKET NLA Price: $11.60 |
| 45 | 533271184 | NUT 5/16X18 Price: $2.99 |
| 46 | 533304212 | ROD Price: $69.99 |
| 47 | 533304049 | ARM Price: $229.99 |
| 48 | 533051189 | BOLT NLA Price: $15.50 |
| 49 | 734117171 | Washer This part replaces 533274517. Price: $2.53 |
| 50 | 533036368 | PIN Price: $4.99 |
| 51 | 533304083 | ROD Price: $69.99 |
| 52 | 596136301 | Bolts This part replaces 533057325. Price: $2.99 |
| 53 | 533040223 | TENSIONER Price: $37.99 |
| 54 | 533304105 | HOLDER NLA Price: $7.51 |
| 55 | 533304130 | SPRING Price: $14.99 |
| 56 | 596322601 | Nuts This part replaces 533045171. Price: $2.99 |
| 57 | 533022053 | RETAINING RING Price: $4.99 |
| 58 | 533003021 | KEY Price: $5.99 |
| 59 | 533303109 | PULLEY Price: $89.99 |
| 60 | 533309546 | LINK Price: $69.99 |
| 61 | 596134901 | GSPH This part replaces 533120394. Price: $2.99 |
| 62 | 533302582 | ARM Price: $29.99 |
| 63 | 874610412 | BOLT This part replaces 533056255. Price: $2.99 |
| 67 | 596582501 | Bolts This part replaces 533995338. Price: $2.99 |
| 68 | 533057791 | KEY, SQUARE1/4 Price: $8.99 |
| 69 | 533304246 | SPACER Price: $32.99 |
| 70 | 533121222 | PIN Price: $6.99 |
| 73 | 874980806 | This part replaces 533035287. Price: $2.59 |
| 74 | 533305553 | MUFFLER Price: $211.63 |
| 75 | 533313044 | Price: Call Us |
| 76 | 533313043 | Price: Call Us |
| 78 | 533056472 | Price: Call Us |
| 79 | 533308144 | Price: Call Us |
| 80 | 533305555 | PIPE, L.H. Price: $93.99 |
| 81 | 533306577 | BRACKET Price: $69.99 |
