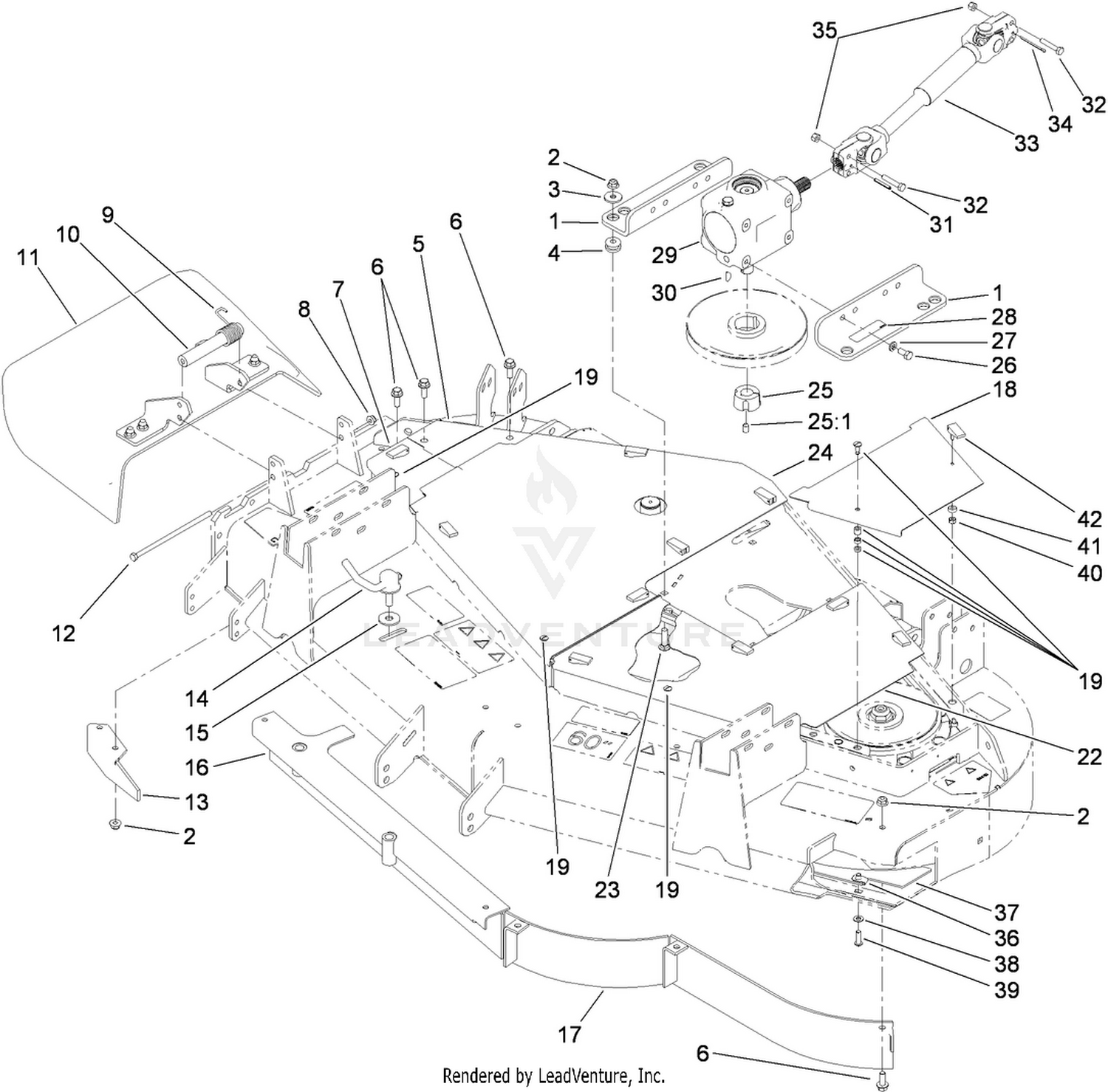

| Ref | Part Number | Description |
|---|
| 1 |
108-4376-03 |
BRACKET-GEARBOX Price: $106.67 |
| 2 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 3 |
63-8410 |
WASHER Price: $1.76 |
| 4 |
63-9750 |
MOUNT Price: $18.92 |
| 5 |
108-6064-03 |
COVER-OUTSIDE, REAR (RH) Price: $38.46 |
| 6 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 7 |
119-4798-03 |
COVER-FRONT OUTSIDE, RH Price: $25.33 |
| 8 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 9 |
108-4052 |
SPRING-TORSION Price: $23.99 |
| 10 |
105-4622 |
SPACER Price: $9.99 |
| 11 |
108-2792 |
RUBBER DEFLECTOR ASM Price: $217.99 |
| 12 |
112-9557 |
SCREW-HH Price: $3.94 |
| 13 |
106-3216-01 |
BAFFLE-DISCHARGE Price: $23.99 |
| 14 |
107-1664 |
LEVER ASM Price: $71.99 |
| 15 |
105-7697 |
WASHER-PLASTIC Price: $2.29 |
| 16 |
105-7669-01 |
BAFFLE Price: $256.99 |
| 17 |
105-7657-01 |
BAFFLE Price: $141.99 |
| 18 |
119-4795-03 |
COVER-OUTSIDE, LH Price: $32.60 |
| 19 |
117-6989 |
FRACTIONAL TURN OVAL HEAD STUD ASM Price: $13.02 |
| 22 |
119-4796-03 |
COVER-MIDDLE, LH Price: $100.33 |
| 23 |
3231-26 |
SCREW-CARR Price: $0.86 |
| 24 |
119-4797-03 |
COVER-MIDDLE, RH Price: $148.46 |
| 25 |
23-1640 |
BUSHING-TAPERLOCK Price: $68.50 |
| 26 |
323-4 |
SCREW-HH Price: $1.02 |
| 27 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 28 |
93-6697 |
DECAL-LUBE Price: $11.38 |
| 29 |
108-1370 |
GEARBOX REPLACEMENT KIT Price: $862.61 |
| 30 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 31 |
32121-34 |
PIN-ROLL Price: $1.31 |
| 32 |
322-9 |
SCREW-HH Price: $3.09 |
| 33 |
110-4704 |
PTO DRIVE SHAFT ASM Price: $1,078.90 |
| 34 |
3272-15 |
PIN-COTTER Price: $0.47 |
| 35 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 36 |
112-3306 |
NUT Price: $0.82 |
| 37 |
115-1421 |
PLATE-TURBO Price: $37.08 |
| 38 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 39 |
3274-104 |
SCREW-HSBH Price: $0.54 |
| 40 |
1-804254 |
NUT-LOCK, HH Price: $1.29 |
| 41 |
106-6778 |
BUSHING-LATCH, SWELL Price: $1.28 |
