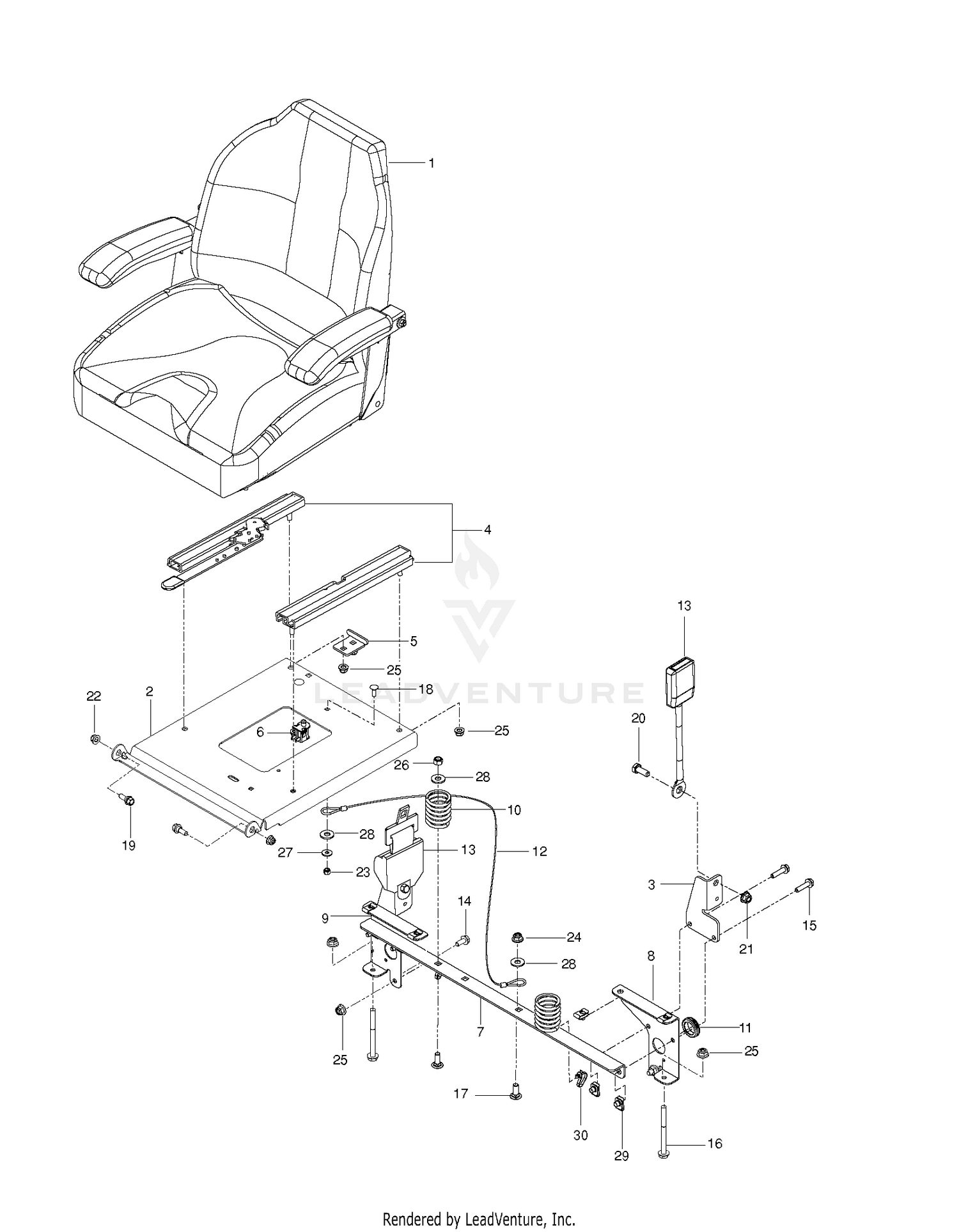

| Ref | Part Number | Description |
|---|
| 1 |
501580402 |
SEAT.ASM.907.TRACK.W/O.BELT This part replaces 576702001. Price: $699.99 |
| 2 |
596300901 |
Seat pan This part replaces 586867802. Price: $64.99 |
| 3 |
584916802 |
MOUNT.SEAT.BELT.BLACK Price: $2.99 |
| 5 |
539130794 |
STOP SEAT BLACK This part replaces 539130793. Price: $3.99 |
| 6 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 539119741. Price: $12.99 |
| 7 |
539131656 |
SUPPORT, SEAT Price: $109.99 |
| 8 |
575224002 |
SUPPORT, RT, BLK Price: $24.99 |
| 9 |
575224102 |
SUPPORT, LT, BLK Price: $22.99 |
| 10 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 11 |
539105974 |
RUBBER GROMMET Price: $2.99 |
| 12 |
539103247 |
SEAT LANYARD Price: $14.99 |
| 13 |
596322701 |
SEAT.BELT This part replaces 539130359. Price: $119.99 |
| 14 |
525464701 |
HHFS 5/16-18 X 3/4 Price: $2.99 |
| 15 |
525544002 |
Bolts This part replaces 525544001. Price: $3.99 |
| 16 |
583613301 |
BOLT.HEX.FLNG.5/16-18X3.75 This part replaces 874490560. Price: $4.99 |
| 17 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 18 |
582735501 |
BOLT.CARRIAGE.1/4-20X3/4 This part replaces 872110406. Price: $6.99 |
| 19 |
539130896 |
SB 5/16-18 HEX HD GD5, BLK ZN Price: $9.99 |
| 20 |
539124775 |
SCREW 7/16-20 X 1 HHB GR5 Price: $6.99 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 23 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 24 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 25 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 26 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 27 |
596204201 |
Washers This part replaces 819091216. Price: $2.99 |
| 28 |
596433701 |
GSPW Washers This part replaces 819141614. Price: $2.99 |
| 29 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 30 |
505280001 |
TIE WRAP, 8-3/8", W/CLIP Price: $2.99 |
