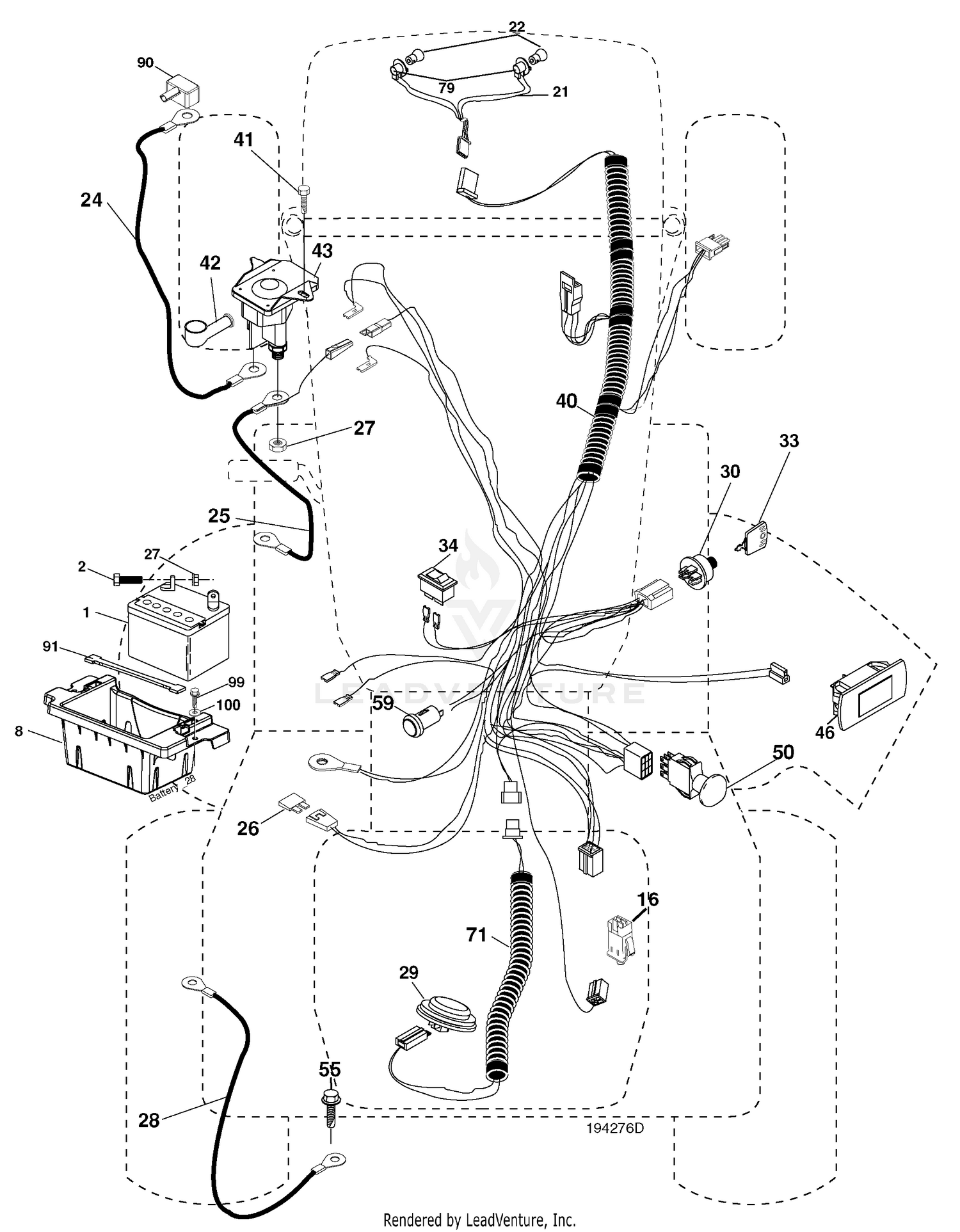

| Ref | Part Number | Description |
|---|
| 1 |
144927 |
Battery Price: Call Us |
| 2 |
74760412 |
Bolt Hex Head 1/4-20 x 3/4 Price: Call Us |
| 8 |
186491 |
Box Battery Price: Call Us |
| 10 |
112-7018 |
VALVE-INLET This part replaces 98-9494. Price: $41.87 |
| 16 |
176138 |
Switch Interlock Push-In Price: Call Us |
| 20 |
120-2564 |
VALVE-EXHAUST This part replaces 98-9495. Price: $34.21 |
| 21 |
175688 |
Harness Socket Light W/4152J Price: Call Us |
| 22 |
4152J |
Bulb Light Price: Call Us |
| 24 |
400253 |
Cable Battery Price: Call Us |
| 25 |
198893 |
Cable Start Red Price: Call Us |
| 26 |
175158 |
Fuse Price: Call Us |
| 27 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 28 |
145491 |
Cable, Ground Price: Call Us |
| 29 |
401545 |
Switch, Seat Price: Call Us |
| 30 |
193350 |
Switch, Ignition Price: Call Us |
| 30 |
98-9648 |
SPRING-VALVE Price: $13.49 |
| 33 |
140401 |
Key, Ignition Price: Call Us |
| 34 |
110712X |
Switch Light / Reset Price: Call Us |
| 40 |
107-9092 |
RETAINER-SPRING Price: $2.58 |
| 40 |
194276 |
Harness Ignition Price: Call Us |
| 41 |
17720408 |
Screw Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 42 |
131563 |
Cover, Terminal Price: Call Us |
| 43 |
192507 |
Solenoid Price: Call Us |
| 46 |
198138 |
Gauge Hourmeter Price: Call Us |
| 50 |
117-7572 |
COLLET-SPRING, VALVE This part replaces 98-9390. Price: $9.43 |
| 50 |
174653 |
Switch, PTO Price: Call Us |
| 55 |
17490512 |
Screw Thdrol 5/16-18 x 3/4 TYTT Price: Call Us |
| 59 |
400303 |
Outlet 12-Volt Price: Call Us |
| 60 |
99-8385 |
SEAL-STEM, VALVE Price: $7.29 |
| 70 |
98-9497 |
CAP-VALVE Price: $8.36 |
| 71 |
400260 |
Harness Ign. Dash Price: Call Us |
| 79 |
175242 |
Bulbholder Asm. Incan Descent Price: Call Us |
| 80 |
105-3790 |
R-ARM SHAFT ASM Price: $28.61 |
| 90 |
100-1762 |
BOLT This part replaces 100-9265. Price: $1.68 |
| 90 |
400724 |
Cover Terminal Battery Price: Call Us |
| 91 |
190270 |
Strap Battery Mount Front Price: Call Us |
| 99 |
17670412 |
Screw Hexwsh Thdrol 1/4-20 x 3/4 Price: Call Us |
| 100 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 100 |
98-9505 |
BRACKET-ARM, ROCKER Price: $22.17 |
| 110 |
105-3758 |
PIN-SPRING Price: $0.57 |
| 120 |
98-9507 |
WASHER-SHAFT, ROCKER ARM Price: $0.85 |
| 130 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 140 |
98-9504 |
SPRING-ARM, ROCKER Price: $0.66 |
| 160 |
98-9501 |
ROCKER ARM ASM Price: $28.78 |
| 170 |
98-9502 |
SCREW-ADJUSTING Price: $2.78 |
| 180 |
98-9503 |
NUT Price: $1.33 |
| 190 |
98-9506 |
STUD Price: $5.98 |
| 200 |
98-9393 |
NUT Price: $2.72 |
