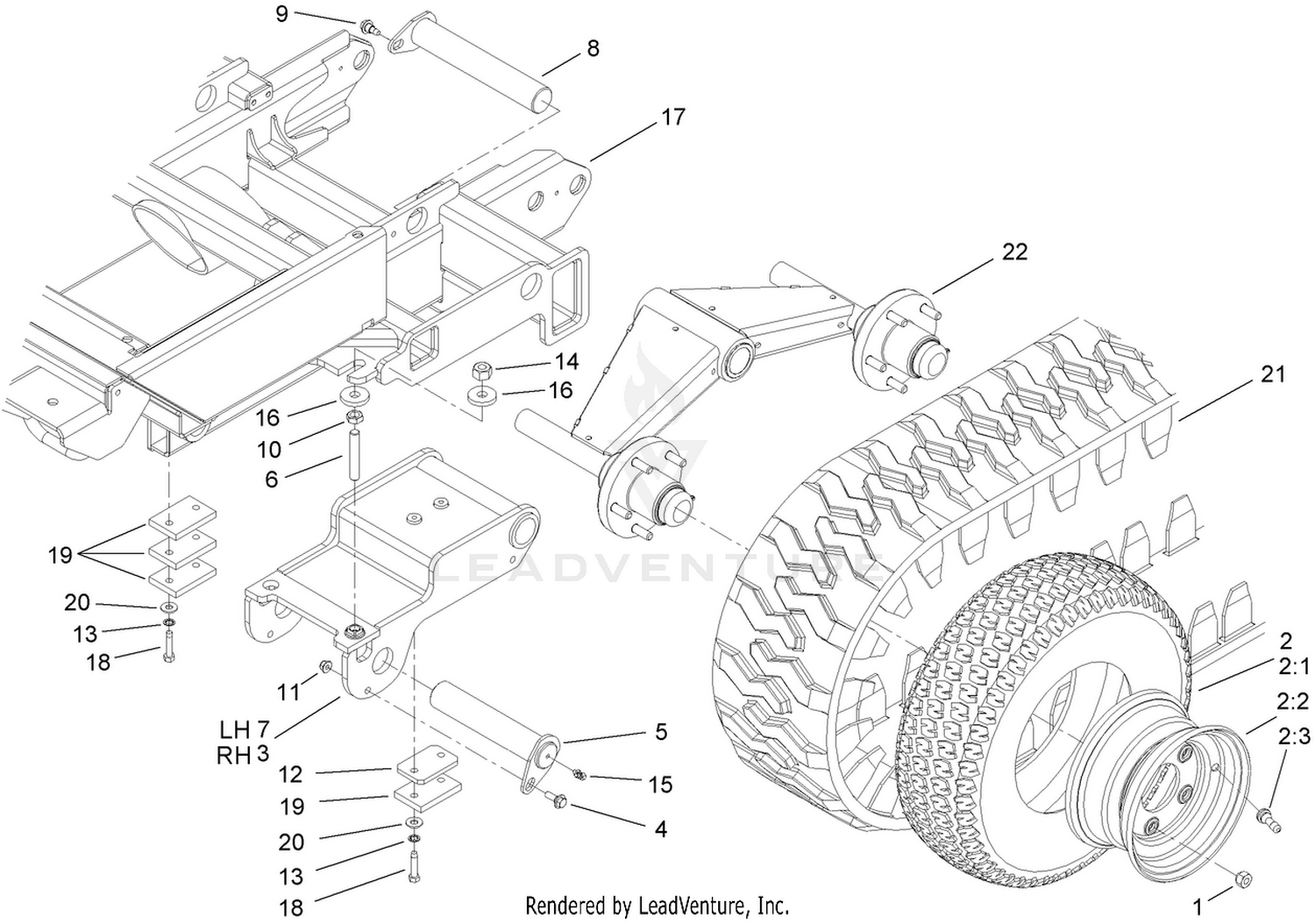

| Ref | Part Number | Description |
|---|
| 1 |
23-7270 |
NUT-LUG Price: $10.37 |
| 2 |
136-4476 |
WHEEL AND TIRE ASM This part replaces 110-5465. Price: $349.87 |
| 3 |
110-9793-03 |
PIVOT-RH Price: $734.01 |
| 4 |
27-0410 |
SCREW-SHOULDER Price: $2.59 |
| 5 |
108-9857 |
PIN-PIVOT, LOWER Price: $249.83 |
| 6 |
105-1088 |
STUD Price: $6.88 |
| 7 |
108-5195-03 |
PIVOT-LH Price: $823.73 |
| 8 |
110-9765 |
PIN-PIVOT, UPPER Price: $114.08 |
| 9 |
99-5105 |
BOLT-SHOULDER Price: $5.89 |
| 10 |
3218-5 |
NUT-JAM Price: $0.27 |
| 11 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 12 |
110-5454 |
PLATE-SPACER Price: $10.72 |
| 13 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 14 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 15 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 16 |
30-8770 |
WASHER Price: $3.43 |
| 17 |
110-9767-03 |
FRAME Price: $4,553.58 |
| 18 |
32104-107 |
SCREW-HH Price: $6.99 |
| 19 |
69-9290 |
PAD-BUMPER Price: $9.52 |
| 20 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 21 |
108-5164 |
DRIVE TRACK ASM Price: $3,393.97 |
