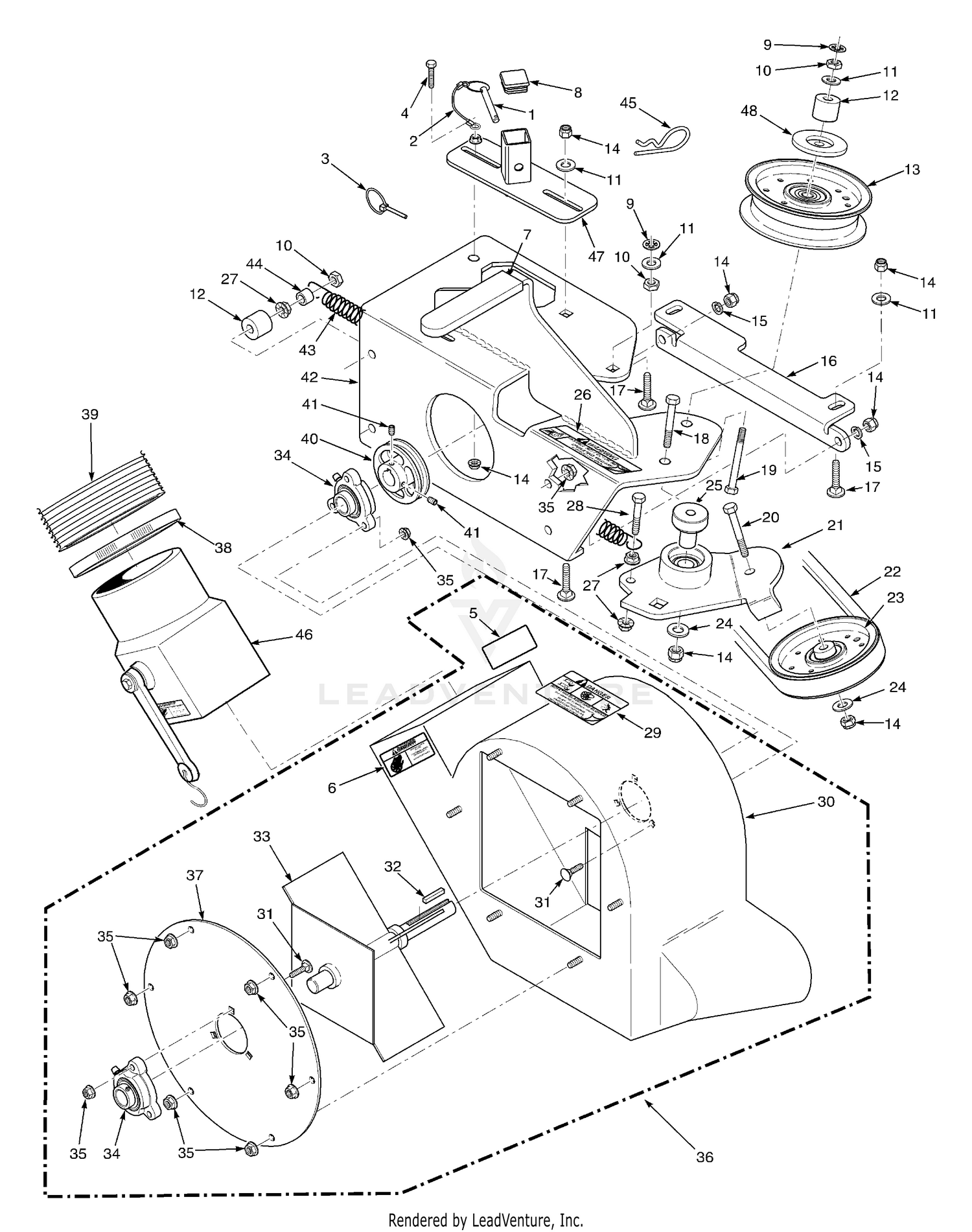

| Ref | Part Number | Description |
|---|
| 1 |
04067-10 |
Pin, Ring 2-1/4" Long Price: Call Us |
| 2 |
481547 |
Lanyard, Deck Height Pin Price: Call Us |
| 3 |
04066-04 |
Quick Pin, 5/16" Dia. Price: Call Us |
| 4 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" Price: Call Us |
| 5 |
483392 |
Decal, Blower Price: Call Us |
| 6 |
483393 |
Decal, Rotating Blower Price: Call Us |
| 7 |
481428 |
Grip, Blower Lever Price: Call Us |
| 8 |
483223 |
Cap, Square Price: Call Us |
| 9 |
04024-02 |
Nut, Push On 3/8 Thread Price: Call Us |
| 10 |
04021-05 |
Lock Nut, 3/8-16 Price: Call Us |
| 11 |
04041-07 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 12 |
43277 |
Spacer Price: Call Us |
| 13 |
483209 |
Pulley, Idler 4" Dia. Price: Call Us |
| 14 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 15 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 16 |
424361 |
Plate, Catcher Mounting Price: Call Us |
| 17 |
04003-05 |
Bolt, Carr. 3/8-16 x 1-1/2" Price: Call Us |
| 18 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" Price: Call Us |
| 19 |
04001-81 |
Bolt, Hex Head 3/8-16 x 3-1/2" Price: Call Us |
| 20 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" Price: Call Us |
| 21 |
461928 |
Idler Arm Assembly Price: Call Us |
| 22 |
483182 |
Belt, GC-STC Price: Call Us |
| 23 |
483189 |
Pulley, 3-1/2" O.D., GC-STC Price: Call Us |
| 24 |
04043-04 |
Washer, 3/8 Hardened Price: Call Us |
| 25 |
43575 |
Pivot, Idler Price: Call Us |
| 26 |
483402 |
Decal, Belt Cover Price: Call Us |
| 27 |
04019-04 |
Nut, Serr. Flange 3/8-16 Price: Call Us |
| 28 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2 Gr. 8 Price: Call Us |
| 29 |
483391 |
Decal, Danger Price: Call Us |
| 30 |
461931 |
Blower Housing Weldment Price: Call Us |
| 31 |
04003-12 |
Bolt, Carr. 5/16-18 x 3/4" Gr. 5 Price: Call Us |
| 32 |
04063-06 |
Key, 1/4 x 1/4 x 1-1/2" Price: Call Us |
| 33 |
461796 |
Fan Weldment Price: Call Us |
| 34 |
483034 |
Bearing Assembly Price: Call Us |
| 35 |
04019-03 |
Nut, Serr. Flange 5/16-18 Price: Call Us |
| 36 |
461930 |
Blower Housing Assembly, GC-STT Price: Call Us |
| 37 |
421319 |
Cover, Blower Housing Price: Call Us |
| 38 |
48136-02 |
Clamp, 8-5/8" Max Dia. Price: Call Us |
| 39 |
48135-14 |
Hose, 8.00" Dia. x 60.50" Long Price: Call Us |
| 40 |
482298 |
Pulley, 4-3/4" O.D. - 1" Bore Price: Call Us |
| 41 |
04012-04 |
Set Screw, 5/16-18 x 3/8" Price: Call Us |
| 42 |
461932 |
Frame, Blower Mount Price: Call Us |
| 43 |
481522 |
Spring, Main Drive Price: Call Us |
| 44 |
43212 |
Spacer, Deck Assist Price: Call Us |
| 45 |
04062-04 |
Hair Pin Cotter, .177 x 3-1/4" Price: Call Us |
| 46 |
461723 |
Adapter w/Strap Price: Call Us |
| 47 |
451821 |
Receiver Weldment, Mounting Post Price: Call Us |
