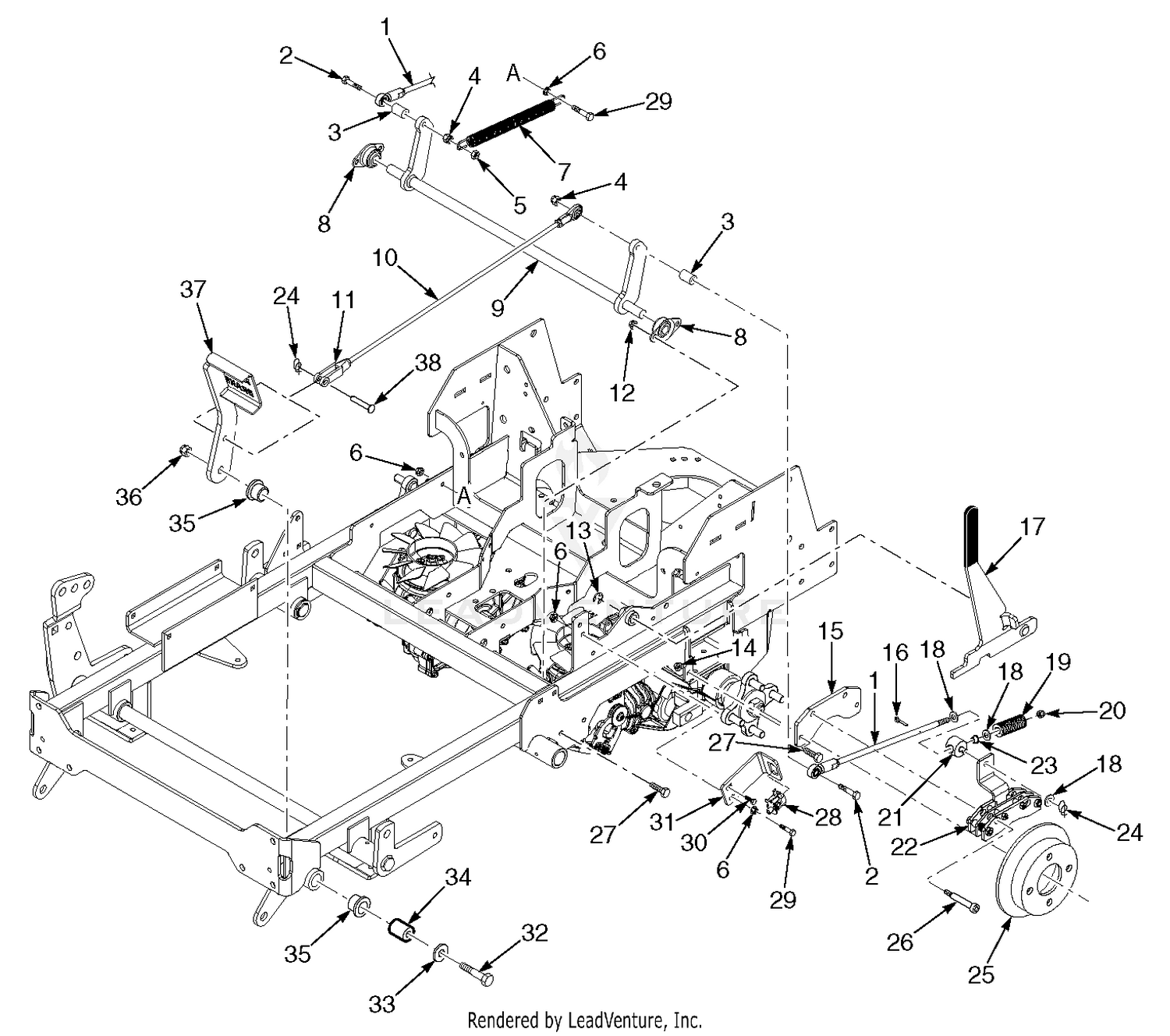

| Ref | Part Number | Description |
|---|
| 2 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" Price: Call Us |
| 3 |
43572 |
Spacer Price: Call Us |
| 4 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 5 |
04021-05 |
Nut, Center Lock 3/8-16 Price: Call Us |
| 6 |
04019-02 |
Nut, Serrated Flange 1/4-20 Price: Call Us |
| 7 |
484575 |
Spring, Brake Return Price: Call Us |
| 8 |
48796 |
Bearing, Self Align - 5/8" I.D. Price: Call Us |
| 9 |
452342 |
Brake Bellcrank Weldment Price: Call Us |
| 10 |
04020-26 |
Nut, 3/8-24 UNF LH Jam Price: Call Us |
| 10 |
483340 |
Rod End, 3/8-24 LH Price: Call Us |
| 10 |
492001 |
Brake Rod Assembly Price: Call Us |
| 11 |
04020-25 |
Nut, 3/8-24 UNF Jam Price: Call Us |
| 11 |
48343-04 |
Clevis Price: Call Us |
| 12 |
04021-10 |
Nut, Elasticc Stop 5/16-18 Price: Call Us |
| 13 |
04050-01 |
Retaining Ring, .625 Ext "E" Price: Call Us |
| 14 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 15 |
425706 |
Mounting Bracket, Brake Price: Call Us |
| 16 |
04061-02 |
Cotter Pin, 3/32 x 3/4" Price: Call Us |
| 17 |
462466 |
Lever w/Grip, Parking Brake Price: Call Us |
| 17 |
482102 |
Grip, Brake Lever Price: Call Us |
| 18 |
04040-05 |
Flatwasher, 3/8-.406 x .812 x .065 Price: Call Us |
| 19 |
484535 |
Spring, Brake Price: Call Us |
| 20 |
04021-18 |
Nut, Elastic Stop 3/8-24 Price: Call Us |
| 21 |
462452 |
Swivel Assembly, Brake Price: Call Us |
| 22 |
483701 |
Brake Caliper Price: Call Us |
| 23 |
483453-23 |
Bearing Price: Call Us |
| 24 |
04069-01 |
Pin, Rue Cotter - 3/8" Dia. Price: Call Us |
| 25 |
43853 |
Brake Hub Price: Call Us |
| 26 |
04009-10 |
Bolt, 1/2 x 2-3/4" Shoulder Price: Call Us |
| 27 |
04001-59 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 28 |
481638 |
Switch Price: Call Us |
| 29 |
04001-59 |
Bolt, Hex Head 1/4-20 x 1-1/4" Price: Call Us |
| 30 |
04003-07 |
Bolt, Carriage 1/4-20 x 1/2" Price: Call Us |
| 31 |
426064 |
BRAKE SWITCH MNT This part replaces 425858. Price: Call Us |
| 32 |
04001-194 |
Bolt, Hex Head 1/2-13 x 4-1/4" Price: Call Us |
| 33 |
04040-13 |
Flatwasher, 1/2-.562 x 1.375 x .109 Price: Call Us |
| 34 |
43872 |
Sleeve, Brake Pivot Price: Call Us |
| 35 |
483453-03 |
Bearing Price: Call Us |
| 36 |
04021-07 |
Nut, Elastic Stop 1/2-13 Price: Call Us |
| 37 |
452327 |
Brake Pedal Weldment Price: Call Us |
