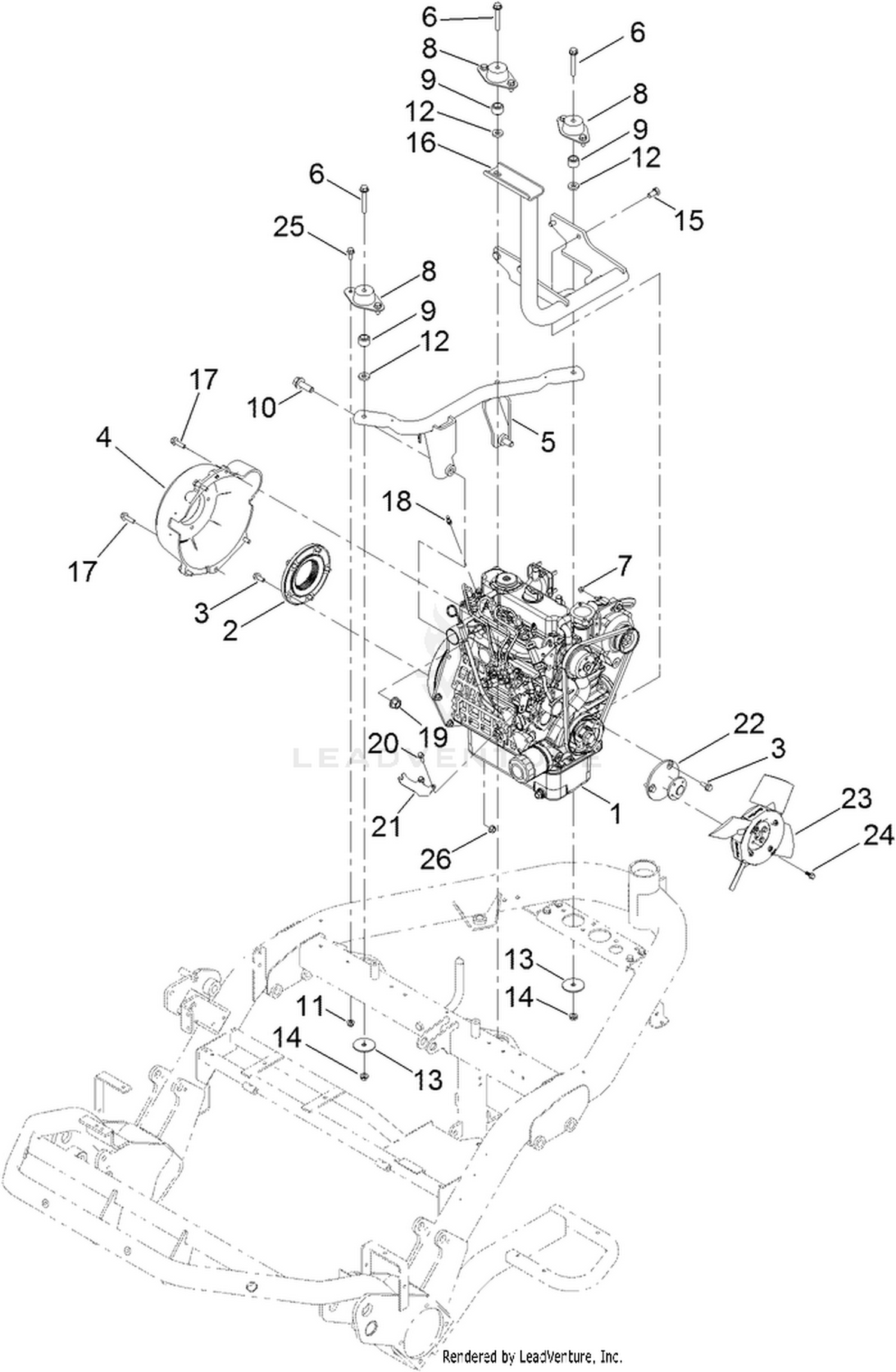

Engine Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 138-6903 | ENGINE-KUBOTA, D902 Price: $6,946.08 |
| 2 | 115-8727 | FLANGE-COUPLING Price: $94.44 |
| 3 | 33104-020 | SCREW-HHF Price: $2.07 |
| 4 | 132-6994 | HOUSING-BELL Price: $272.96 |
| 5 | 120-5313-03 | MOUNT-ENGINE Price: $208.90 |
| 6 | 3234-39 | SCREW-HHF Price: $1.09 |
| 7 | 33003-00 | NUT-HF Price: $0.25 |
| 8 | 121-9076 | MOUNT-ENGINE Price: $37.76 |
| 9 | 94-4538 | SPACER-MOUNT Price: $9.70 |
| 10 | 100-6116 | SCREW-HHF Price: $6.41 |
| 11 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 12 | 66-6480 | WASHER Price: $1.29 |
| 13 | 83-1040 | WASHER-FLAT Price: $2.31 |
| 14 | 3290-357 | NUT-HHF, WHIZ Price: $0.61 |
| 15 | 63-7790 | SCREW-CAP Price: $1.46 |
| 16 | 133-2346-03 | SUPPORT-ENGINE Price: $216.12 |
| 17 | 33104-030 | SCREW-HHF Price: $4.66 |
| 18 | 108-5928 | SWIVEL-STOP, CABLE Price: $10.14 |
| 19 | 99-5107 | NUT-LOCK Price: $1.77 |
| 20 | 33103-020 | SCREW-HHF Price: $2.16 |
| 21 | 120-5316 | BRACKET-SUPPORT, THROTTLE Price: $9.45 |
| 22 | 119-4421 | ADAPTOR-FAN Price: $135.28 |
| 23 | 120-5287 | FAN-35 DEG Price: $277.20 |
| 24 | 99-6810 | SCREW-HHF Price: $3.09 |
| 25 | 3234-47 | SCREW-HHF Price: $1.79 |
