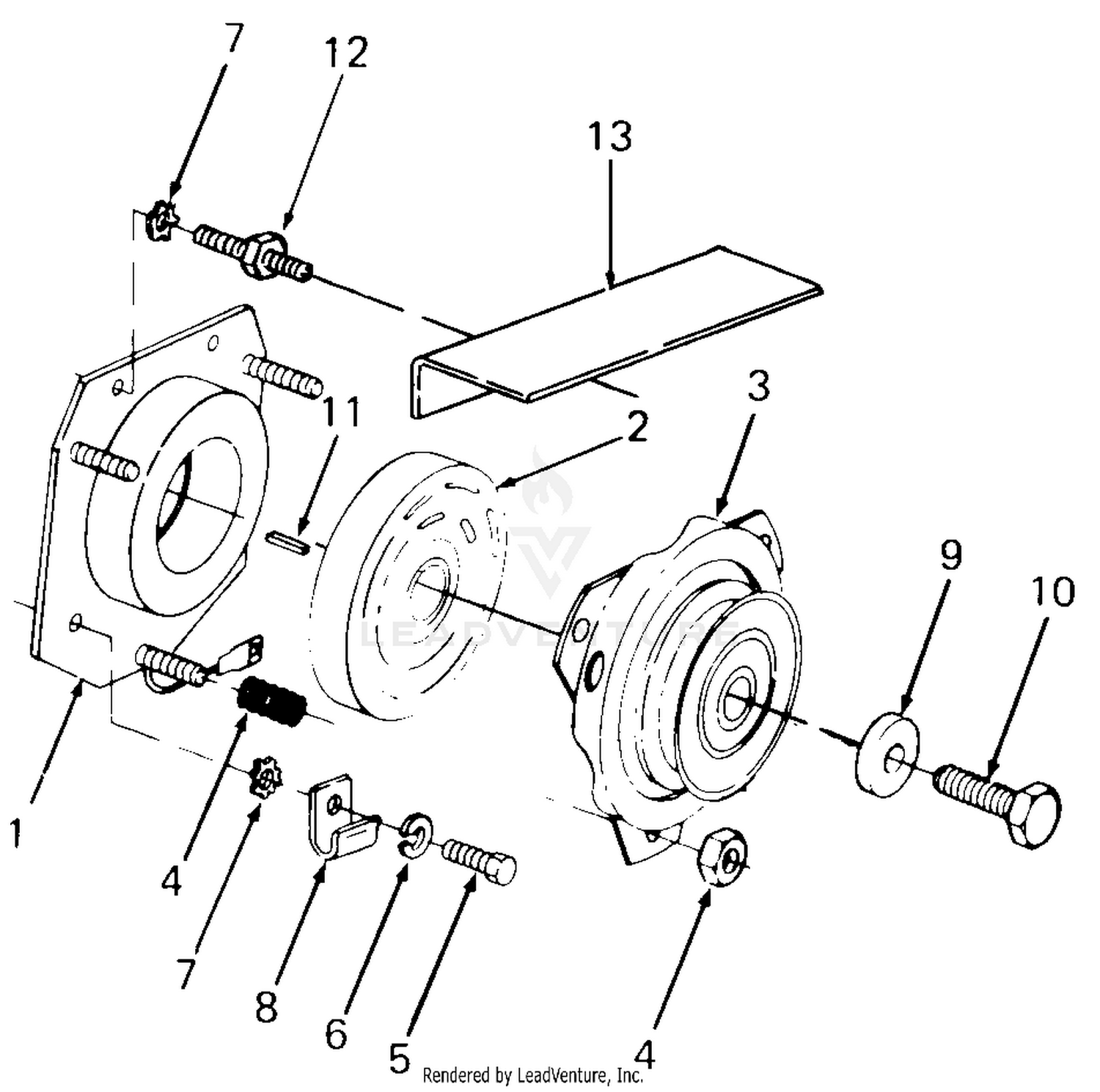

| Ref | Part Number | Description |
|---|
| 1 |
759-3300 |
ASSEMBLY-FIELD 5209-101-055 Not Available Price: |
| 2 |
532186211 |
KEY.SQUARE.187X2.500 Price: $3.99 |
| 2 |
759-3301 |
ROTOR ASSEMBLY Not Available Price: |
| 3 |
759-3646 |
ARMATURE ASSEMBLY 5209-101-062 Not Available Price: |
| 4 |
759-3306 |
PKG-SPRING AND NUT 5208-101-017 Not Available Price: |
| 5 |
710-3030 |
SCREW 7/16-14X .750 GR5 Not Available Price: |
| 6 |
736-0171 |
Washer, Lock, 7/16 Price: $3.86 |
| 7 |
531170101 |
SERVICE.KIT HUB ASM HUB.ASM.WH This part replaces 532199844. Price: $49.99 |
| 7 |
736-3086 |
WASHER-EXT LOCK .450X.750X.0 Not Available Price: |
| 8 |
726-3008 |
Clamp, Cable Price: $4.26 |
| 9 |
596218701 |
Bolts This part replaces 532140080. Price: $2.99 |
| 9 |
736-3017 |
Washer, Flat, .47 X 1.5 X .225 Thk Price: $10.08 |
| 10 |
710-3029 |
Screw, Hex Cap, 7/16-20 X 1.25 Lg GR5 Price: $3.82 |
| 11 |
714-0119 |
Key, Square, 1/4 X .75 Lg Price: $7.27 |
| 12 |
711-3006 |
STUD 7/16-14 Not Available Price: |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
3220-6 |
NUT-JAM Price: $1.25 |
| 28 |
66-9770 |
SEAL Price: $20.05 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 29 |
66-9780 |
BUSHING Price: $11.69 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 36 |
93-3609 |
BOLT-SPECIAL Price: $23.98 |
| 37 |
66-9860 |
UPPER COVER AND JACKET ASM Price: $222.25 |
| 38 |
66-9870 |
PLATE-RETAINING Price: $9.64 |
| 39 |
66-9880 |
WASHER-PLATE, RETAINING Price: $0.98 |
| 40 |
66-9890 |
RING-RETAINING Price: $4.93 |
| 41 |
66-9900 |
SHAFT-INPUT Price: $170.42 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 42 |
66-9970 |
SPRING KIT Price: $26.90 |
| 43 |
66-9980 |
SEAL KIT Price: $140.48 |
| 44 |
66-9990 |
NEEDLE ROLLER KIT Price: $7.16 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855201 |
Belts This part replaces 532130969. Price: $27.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 70 |
532439661 |
CONSOLE.ASM.RH.GT.FC.HUSQ This part replaces 532400530. Price: $79.99 |
| 73 |
583613301 |
BOLT.HEX.FLNG.5/16-18X3.75 This part replaces 874490560. Price: $4.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
531064101 |
SERVICE KIT TORQUE STRAP BLACK This part replaces 532410024. Price: $19.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
532415743 |
ROD.SPRING.BYPASS.K46.TEX.GT Price: $6.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 162 |
580457401 |
SPACER.TRANSAXLE.1" This part replaces 532195785. Price: $12.99 |
| 163 |
593861001 |
Rods This part replaces 532401034. Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 This part replaces 532197290. Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 171 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 183 |
532400424 |
SPACER.SPLIT.800X.350 Price: $4.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
596435101 |
Bolts This part replaces 872110620. Price: $2.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532199769 |
BRKT.ANIT-ROTATION.CLUTCH Price: $6.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532197860 |
ROCKER.ASM.PEDAL.CONTR Price: $44.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX This part replaces 532401722. Price: $6.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 220 |
532198908 |
REFLECTOR.RH.TEX GT Price: $14.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
734118571 |
WASHER This part replaces 819212010. Price: $1.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 226 |
529846701 |
SERVICE KIT BRKT.MOUNT.TORQUE. This part replaces 532400831. Price: $4.99 |
| 230 |
532188967 |
WASHER.HARDENED Price: $3.99 |
