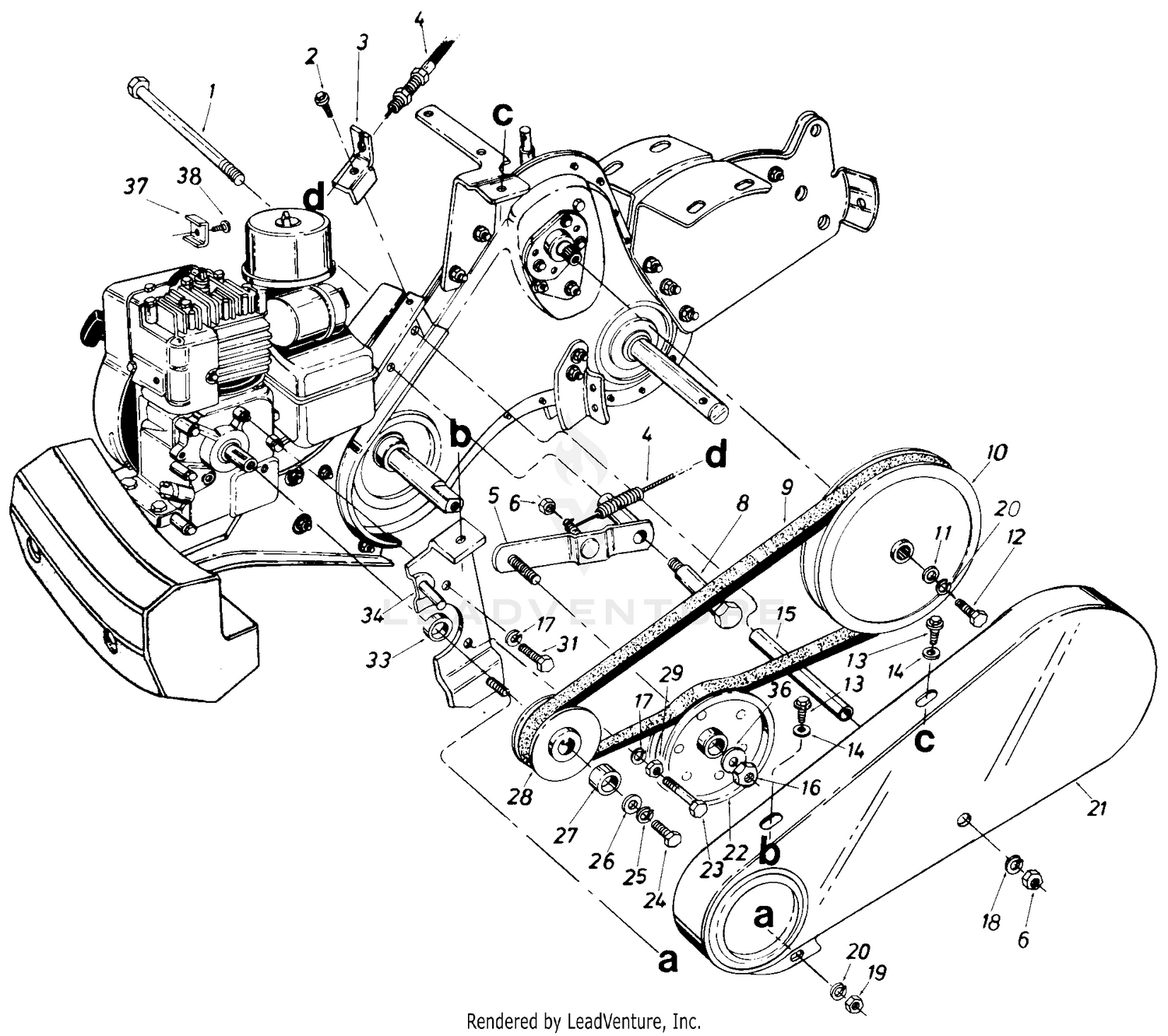

Parts (32)

RefPart NumberDescription
1 710-0974 Hex Bolt 5/16-18 x 4.75" Lg.-Gr. 2 Price: $10.48
2 710-0604A Screw, 5/16-18 x .625 This part replaces 710-0604. Price: $3.96
3 784-0203 BRACKET Not Available Price:
4 946-0612 Clutch Control Cable 53" Lg. This part replaces 746-0612. Price: $62.93
5 784-0175 BRACKET ASSY-IDLER Not Available Price:
6 912-0158 Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83
8 738-0681 SHOULDER SCREW Not Available Price:
9 954-0325 V-BELT 1/2 x 57.0 Not Available This part replaces 754-0325. Price:
10 756-0472 V-PULLEY Not Available Price:
11 736-0176 Fl-Wash. 1/4" I.D. x .93" O.D. Price: $3.95
12 710-0412 Hex Bolt 1/4-28 x .75" Lg. Price: $4.95
13 710-0599 Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86
14 736-0463 Fl-Wash. .281" I.D. x .625" Price: $3.91
15 750-0688 SPACER Not Available Price:
16 712-0262 Hex Cent. L-Nut 3/8-24 Thd. Price: $3.90
17 936-0119 Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29
18 936-0123 WASHER-FL NLAUD Not Available This part replaces 736-0123. Price:
19 912-0287 HEX NUT 1/4-20 Not Available This part replaces 7120287. Price:
20 936-0329 L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90
21 784-0158B BELT COVER This part replaces 784-0158. Price: $67.55
22 756-0405 Fl-Idler w/Flanges 3.75" O.D. Price: $66.84
23 710-0409 Hex Bolt 5/16-24 x 1.751' Price: $4.02
24 710-1039 Hex Bolt 3/8-24 x 1" Lg. This part replaces 710-0152. Price: $4.02
25 736-0169 L-Wash. 3/8" I.D. Price: $3.33
26 736-0258 Fl-Wash. 3/8" I.D. x 1.00" Price: $3.93
27 750-0345 SPACER Not Available Price:
28 748-0282 HALF PULLEY-ENGINE Not Available Price:
29 912-3057 Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94
31 710-0237 Hex Bolt 5/16-24 x .62" Lg. Price: $3.93
34 784-0197 BELT KEEPER ASS'Y. Not Available Price:
36 736-0258 Fl-Wash. 3/8" I.D. x 1.001' Price: $3.93
37 751B221535 Casing Clamp This part replaces 751-0360. Price: $8.93
