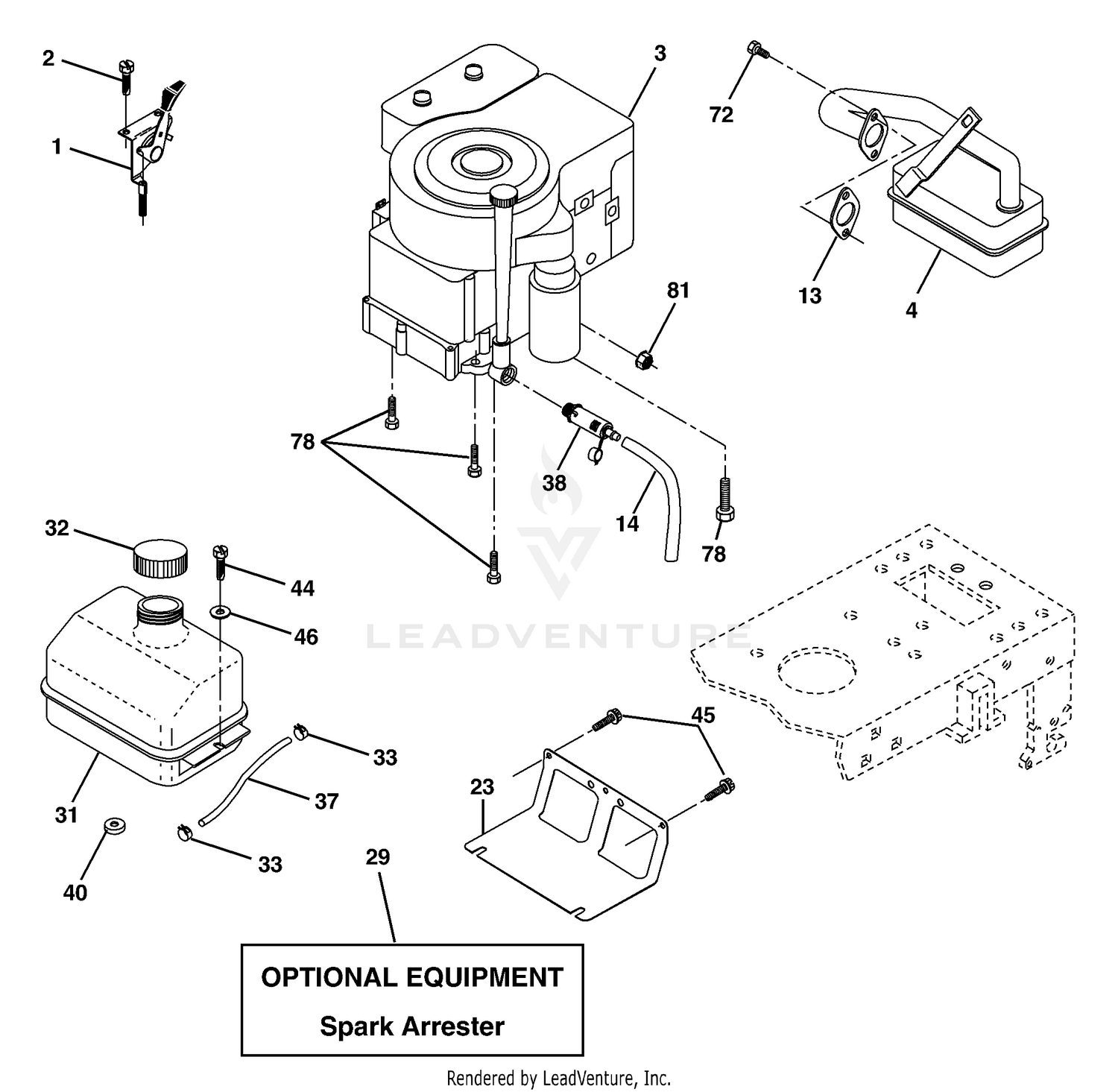

| Ref | Part Number | Description |
|---|
| 1 |
170551 |
Control Throttle/Choke Price: Call Us |
| 1 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 2 |
139-2650 |
CYLINDER, HYD This part replaces 105-3820. Price: $608.23 |
| 2 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 3 |
283-68 |
PIN-CLEVIS Price: $11.26 |
| 4 |
137352 |
Muffler Exhaust B&S Price: Call Us |
| 4 |
99-4126 |
CENTER LIFT ARM ASM Price: $322.79 |
| 5 |
105-9781 |
SPRING-TORSION Price: $24.02 |
| 6 |
98-2197 |
BUSHING-FLANGE Price: $1.82 |
| 7 |
99-4116 |
REAR LIFT FRAME ASM Price: $376.66 |
| 8 |
105-9779 |
GUIDE-SPRING Price: $50.19 |
| 13 |
165291 |
Gasket Eng 1 313 Id Tin Plated Price: Call Us |
| 14 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 15 |
33096-00 |
WASHER-FLAT Price: $1.76 |
| 16 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 17 |
95-1639 |
FITTING-STR,ORIF Price: $63.47 |
| 18 |
32120-72 |
RING-SNAP Price: $2.09 |
| 19 |
63-2290 |
WASHER-THRUST Price: $2.27 |
| 20 |
93-2258 |
HYD HOSE ASM Price: $43.64 |
| 21 |
94-3452 |
PIN Price: $10.04 |
| 22 |
94-8199 |
TUBE-PIVOT Price: $23.74 |
| 23 |
169837 |
Shield BRN/DBR Guard Price: Call Us |
| 23 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 24 |
327-25 |
SCREW-HH Price: $11.16 |
| 26 |
94-3477 |
HYD HOSE ASM Price: $65.92 |
| 28 |
3218-5 |
NUT-JAM Price: $0.27 |
| 29 |
137180 |
Kit Spark Arrestor (Flat Scrn) Price: Call Us |
| 29 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 30 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 31 |
184900 |
Tank Fuel Front Price: Call Us |
| 32 |
140527 |
Cap Asm Fuel Price: Call Us |
| 32 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 33 |
123487X |
Clamp Hose Price: Call Us |
| 33 |
32144-69 |
SCREW-HWHTF Price: $1.58 |
| 34 |
325-5 |
SCREW-HH Price: $1.20 |
| 35 |
93-7489 |
ORIFICE VALVE ASM Price: $191.40 |
| 36 |
99-4248 |
SPACER Price: $6.58 |
| 37 |
137040 |
Line Fuel 20" Price: Call Us |
| 37 |
95-2927 |
FITTING-ELBOW 90 Price: $97.89 |
| 38 |
125-5222 |
BUSHING-ECCENTRIC, MACHINED This part replaces 98-4618. Price: $44.55 |
| 38 |
181654 |
Plug Drain Oil Price: Call Us |
| 39 |
3256-74 |
WASHER-FLAT Price: $0.27 |
| 40 |
124028X |
Bushing Snap Nyl Blk Fuel Line Price: Call Us |
| 40 |
33114-016 |
SCREW-HH Price: $0.27 |
| 41 |
99-4072 |
SPACER Price: $23.67 |
| 42 |
99-4111-01 |
PLATE-TRANSPORT, 1 AND 3 Price: $49.03 |
| 43 |
99-4225 |
PAD-WEAR Price: $10.18 |
| 44 |
17670412 |
Screw Thdrol 1/4-20 x 3/4 Price: Call Us |
| 44 |
325-7 |
SCREW-HH Price: $1.53 |
| 45 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 45 |
99-4201 |
TUBE-SPACER Price: $10.91 |
| 46 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 46 |
99-4246 |
LINK BRACKET ASM Price: $62.27 |
| 48 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 49 |
3250-17 |
SCREW-PPH Price: $1.76 |
| 50 |
325-14 |
SCREW-HH Price: $2.64 |
| 51 |
3296-54 |
NUT-LOCK Price: $3.59 |
| 72 |
183906 |
Screw Socket Head 5/16-18 x 1 Price: Call Us |
| 78 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
