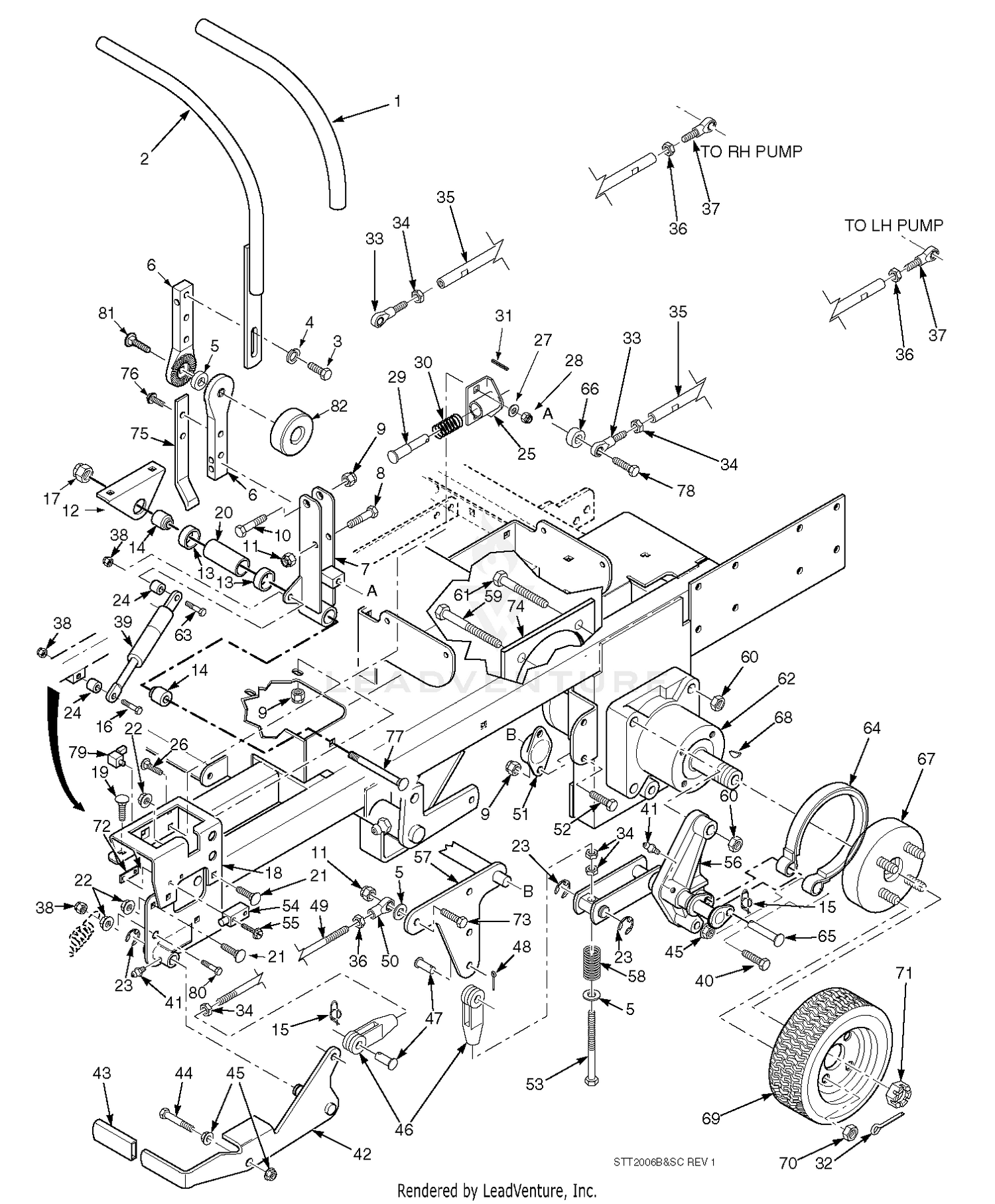

| Ref | Part Number | Description |
|---|
| 1 |
482340 |
Grip, Handle Bar Price: Call Us |
| 3 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1" Price: Call Us |
| 4 |
04030-03 |
Lockwasher, 5/16" Price: Call Us |
| 5 |
483250 |
Rubber Spacer Price: Call Us |
| 6 |
483238 |
Bar, Control Lever Price: Call Us |
| 7 |
451483 |
Control Lever Weldment, LH Price: Call Us |
| 8 |
04001-17 |
Bolt, Hex Head 5/16-18 x 2" Price: Call Us |
| 9 |
04021-10 |
Nut, Hex Elastic Stop 5/16-18 Price: Call Us |
| 10 |
04001-45 |
Bolt, Hex Head 3/8-16 x 2" Price: Call Us |
| 11 |
04021-09 |
Nut, Hex Elastic Stop Price: Call Us |
| 12 |
423488 |
Mount, Control Linkage Price: Call Us |
| 13 |
48224 |
Ball Bearings, Neutral Return Price: Call Us |
| 14 |
43607 |
Spacer Price: Call Us |
| 15 |
04069-01 |
Pin, Rue Cotter 3/8" Dia. Price: Call Us |
| 16 |
04001-13 |
Bolt, Hex Head, 5/16-18 x 2.75" Zinc Price: Call Us |
| 17 |
04021-13 |
Nut, Hex Elastic Stop 5/8-11 Price: Call Us |
| 18 |
461601 |
Bracket, Control Lever LH Price: Call Us |
| 19 |
04003-04 |
Bolt, Carriage 5/16-18 x 1" Price: Call Us |
| 20 |
43600 |
Spacer, Bearing Price: Call Us |
| 21 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 22 |
04019-03 |
Nut, Hex Serrated Flange 5/16-18 Price: Call Us |
| 23 |
04050-01 |
Ring, Retaining 5/8" External "E" Price: Call Us |
| 24 |
43602 |
Spacer Price: Call Us |
| 25 |
45918 |
Bracket, Neutral Return Price: Call Us |
| 26 |
04003-02 |
Bolt, Carriage 1/4-20 x 3/4" Price: Call Us |
| 27 |
04040-14 |
Flatwasher, 1/4" (.312 x .750 x .065") Price: Call Us |
| 28 |
04021-08 |
Nut, Hex Elastic Stop 1/4-20 Price: Call Us |
| 29 |
43477 |
Pin, Retaining Spring Price: Call Us |
| 30 |
481389 |
Spring Price: Call Us |
| 31 |
04060-01 |
Roll Pin, Spring 5/32" x 3/4" Price: Call Us |
| 32 |
04061-06 |
Pin, Cotter 9/16" x 1-1/2" Price: Call Us |
| 33 |
482586 |
Rod End, Male 3/8"-24 RH Thread Price: Call Us |
| 34 |
04020-25 |
Nut, 3/8"-24 RH Thread Price: Call Us |
| 35 |
43629 |
Tube, Control Link Air-Cooled Engine Price: Call Us |
| 36 |
04020-26 |
Nut, Hex 3/8"-24 LH Thread Price: Call Us |
| 37 |
482585 |
Rod End, Male 3/8"-24 LH Thread Price: Call Us |
| 38 |
04021-10 |
Locknut, 5/16-18, Elastic Stop Price: Call Us |
| 39 |
484193 |
Damper, Steering This part replaces 482794. Price: Call Us |
| 40 |
04001-187 |
Bolt, Hex Head 1/2-13 x 2-1/2" Grade 8 Price: Call Us |
| 41 |
48114-04 |
Grease Fitting Price: Call Us |
| 43 |
481548 |
Grip, Parking Brake Price: Call Us |
| 44 |
04001-22 |
Bolt, Hex Head 3/8-16 x 2-3/4" Price: Call Us |
| 45 |
04019-06 |
Nut, Hex Serrated Flange 1/2-13 Price: Call Us |
| 46 |
48343-04 |
Clevis, Traction Control Price: Call Us |
| 47 |
04064-02 |
Pin, Clevis 3/8-16 x 1-1/16" Price: Call Us |
| 48 |
04061-02 |
Pin, Cotter 3/32 x .75" Price: Call Us |
| 49 |
04004-34 |
Rod, Parking Brake Price: Call Us |
| 50 |
48544 |
Rod End, LH Thread Price: Call Us |
| 51 |
48796 |
Bushing, Self Align Price: Call Us |
| 52 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 53 |
04001-147 |
Bolt, Hex Hd 3/8-24 x 5-1/4", 23/4" Thrd Price: Call Us |
| 54 |
481637 |
Switch Price: Call Us |
| 55 |
04010-12 |
Screw, Hex-Slotted Washer Head #10 32 x 3/4" Price: Call Us |
| 56 |
462100 |
Brake Linkage, LH Price: Call Us |
| 57 |
45953 |
Bellcrank, Brake Actuator Price: Call Us |
| 58 |
48807 |
Spring Price: Call Us |
| 59 |
04001-163 |
Bolt, Hex Head 1/2-13 x 3-3/4" Price: Call Us |
| 60 |
04021-19 |
Locknut, Hex 1/2-13 Center Lock Price: Call Us |
| 61 |
04001-52 |
Bolt, Hex Head 1/2-13 x 2-1/2" Price: Call Us |
| 62 |
482639 |
Wheel Motor Price: Call Us |
| 63 |
04001-12 |
Bolt, Hex Head, 5/16-18 x 1.75", Zinc Price: Call Us |
| 64 |
483644 |
Brake Band Assembly Price: Call Us |
| 65 |
04064-16 |
Pin, Clevis 3/8" Dia. x 1.93" Price: Call Us |
| 66 |
43063 |
Spacer Price: Call Us |
| 67 |
461438 |
Wheel Hub/Brake Drum Assembly Price: Call Us |
| 68 |
04063-25 |
Key, Woodruff 5/16 x 1" Price: Call Us |
| 69 |
481850 |
Wheel Assembly 24 x 12-12 Turf Master Price: Call Us |
| 69 |
481851 |
Rim (61" Deck) Price: Call Us |
| 69 |
481852 |
Tire 24 x 12-12 (61" Deck) Price: Call Us |
| 70 |
04028-02 |
Lug Nut, 1/2-20 Price: Call Us |
| 71 |
48680 |
Nut, Hex Castle Price: Call Us |
| 72 |
422373 |
Threaded Plate Price: Call Us |
| 73 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 74 |
423279 |
Plate Weldment, Motor Backing Price: Call Us |
| 75 |
423491 |
Actuator Switch Price: Call Us |
| 76 |
04017-16 |
Bolt, Hex Serrated Flange 5/16-18 x 3/4" Price: Call Us |
| 77 |
04003-36 |
Bolt, Carriage 3/8-16 x 4-3/4" Price: Call Us |
| 78 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 79 |
481638 |
Switch Price: Call Us |
| 80 |
04001-168 |
Bolt, Hex Head 3/8-16 x 1-1/4" Grade 8 Price: Call Us |
| 81 |
04003-38 |
Bolt, Carriage 5/16-18 x 1-1/2" Price: Call Us |
| 43624 |
Tube, |
Control Link Liquid-Cooled Engine Price: Call Us 43624 |
| 451484 |
Control |
Lever Weldment, RH Price: Call Us 451484 |
| 461602 |
Bracket, |
Control Lever RH Price: Call Us 461602 |
| 462101 |
Brake |
Linkage, RH Price: Call Us 462101 |
