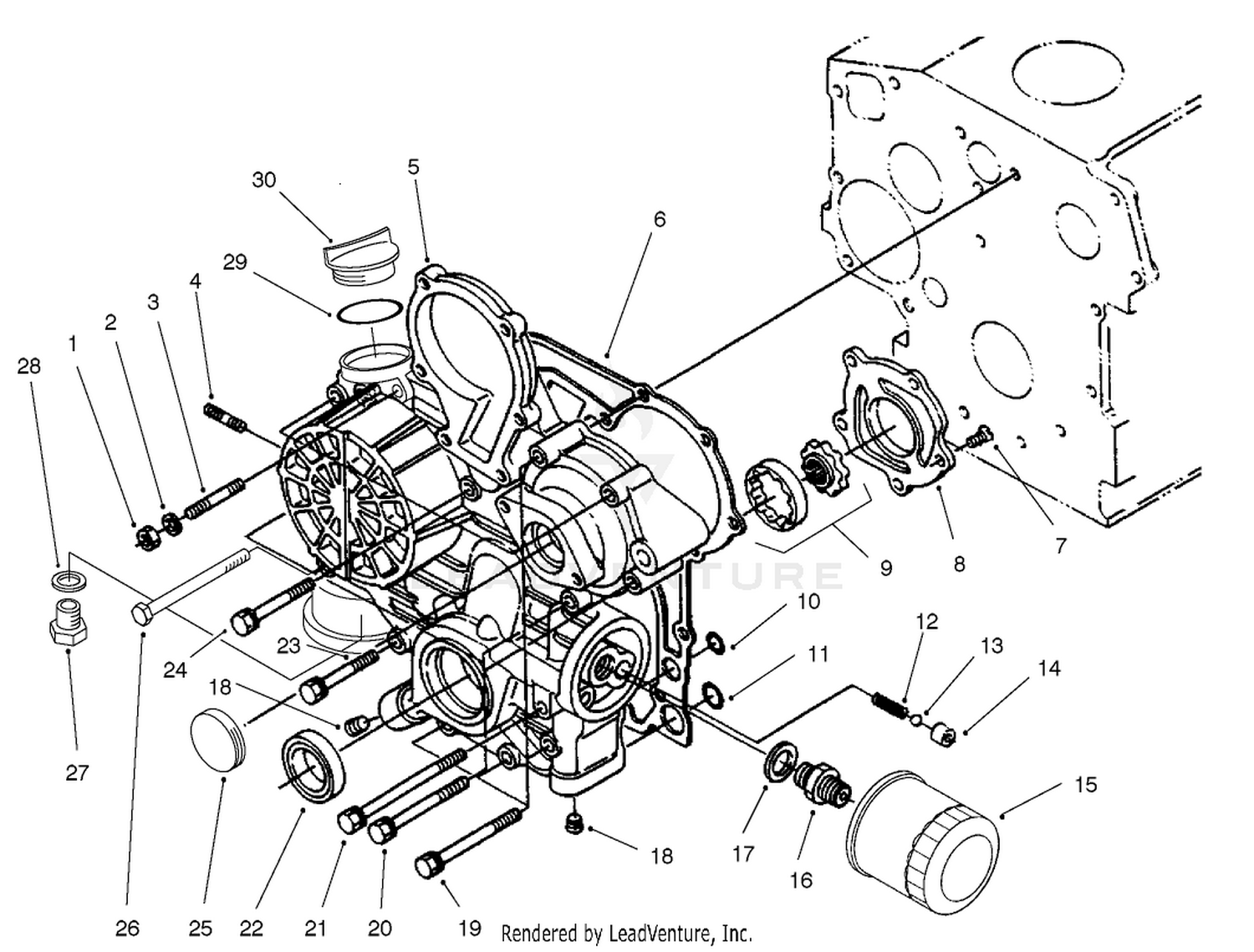

| Ref | Part Number | Description |
|---|
| 1 |
98-7572 |
NUT Price: $0.32 |
| 2 |
98-7699 |
WASHER-SPRING This part replaces 98-9367. Price: $0.44 |
| 3 |
98-9363 |
STUD Price: $1.36 |
| 4 |
98-9362 |
STUD Price: $0.66 |
| 5 |
99-3462 |
GEAR CASE ASM Price: $1,155.49 |
| 6 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 7 |
98-9592 |
SCREW Price: $0.70 |
| 8 |
98-9541 |
COVER-PUMP, OIL Price: $222.71 |
| 9 |
98-9540 |
OIL PUMP ROTOR ASM Price: $271.67 |
| 10 |
98-9372 |
O-RING Price: $1.66 |
| 11 |
98-7547 |
O-RING Price: $0.92 |
| 12 |
98-9544 |
SPRING Price: $0.94 |
| 13 |
98-9380 |
BALL Price: $0.84 |
| 14 |
98-9543 |
SEAT-VALVE Price: $26.61 |
| 15 |
108-3841 |
FILTER-OIL This part replaces 99-8384. Price: $10.81 |
| 16 |
98-9388 |
JOINT-PIPE Price: $31.66 |
| 17 |
98-7562 |
WASHER-PLAIN Price: $0.36 |
| 18 |
127-0425 |
PLUG This part replaces 98-9598. Price: $4.34 |
| 19 |
98-9356 |
BOLT Price: $2.06 |
| 20 |
105-3797 |
BOLT This part replaces 98-9355. Price: $1.40 |
| 21 |
99-3510 |
BOLT Price: $0.80 |
| 22 |
119-8038 |
SEAL-OIL This part replaces 98-9482. Price: $40.16 |
| 23 |
98-9437 |
BOLT Price: $1.05 |
| 24 |
100-1765 |
BOLT This part replaces 98-7496. Price: $1.59 |
| 25 |
99-3515 |
PLUG-GEARCASE Price: $9.00 |
| 26 |
99-3511 |
BOLT Price: $5.29 |
| 27 |
99-3450 |
PLUG Price: $3.37 |
| 28 |
99-3451 |
PLUG-PACKING Price: $2.13 |
| 29 |
98-7430 |
O-RING Price: $1.95 |
