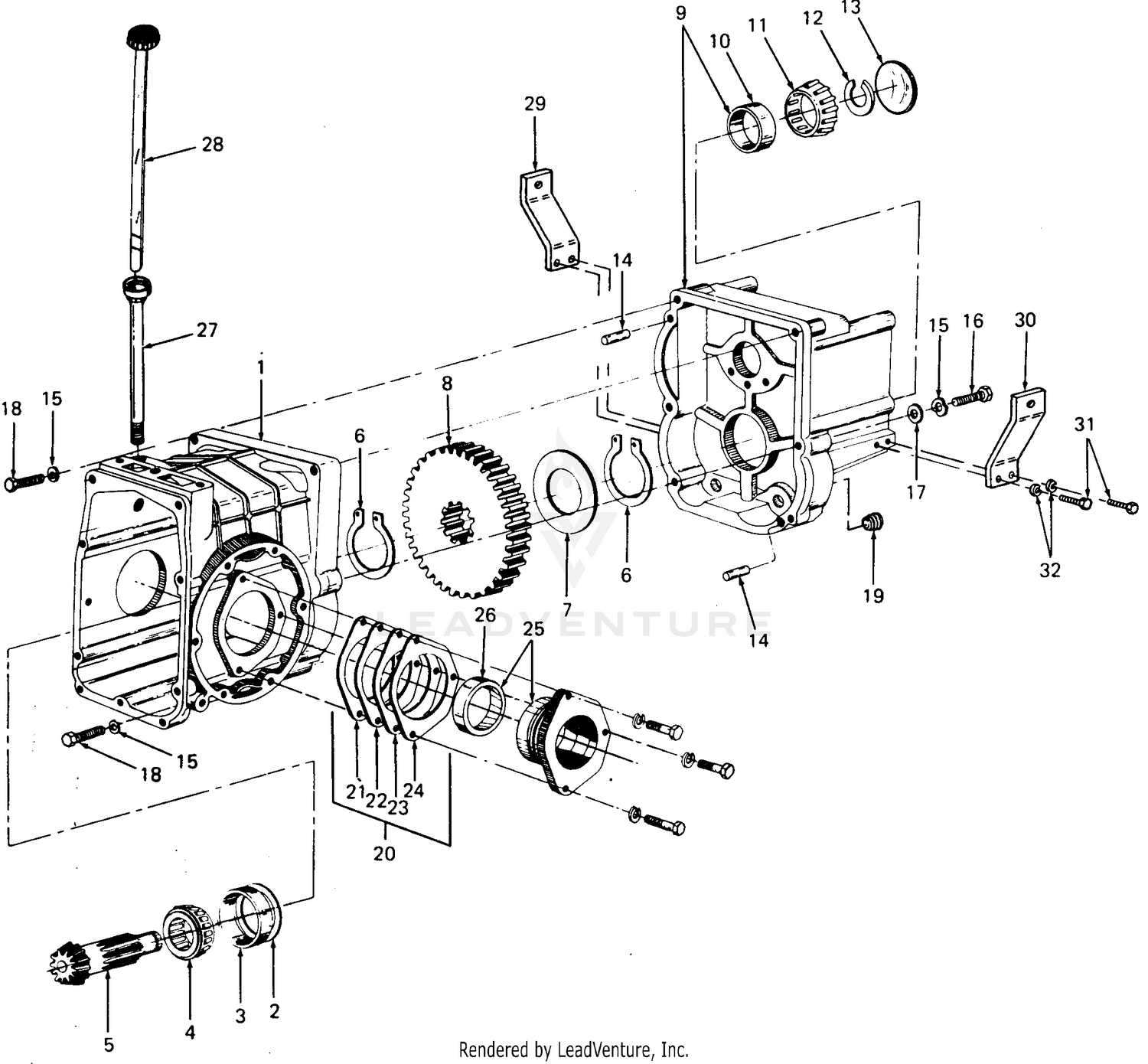

| Ref | Part Number | Description |
|---|
| 1 |
323-7 |
SCREW-HH Price: $0.65 |
| 1 |
588556701 |
SEAT.TH154.498GY.HUS.ARMRESTS This part replaces 532443263. Price: $279.99 |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $11.99 |
| 3 |
327-2 |
SCREW-HH Price: $2.44 |
| 3 |
741-0370 |
ROLLER BEARING CUP Not Available Price: |
| 4 |
741-0371 |
BEARING ASSY, PINION SHAFT REAR CONE Not Available Price: |
| 4 |
93-0064-03 |
SUPPORT ASM - AXLE This part replaces 93-0064. Price: $982.56 |
| 5 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 6 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 6 |
716-0138 |
RETAINING RING Not Available Price: |
| 7 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
717-3146 |
SPACER-GEAR Not Available Price: |
| 8 |
5-1226 |
WASHER Price: $3.90 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 8 |
717-3141 |
GEAR-REDUCTION Not Available Price: |
| 9 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 10 |
596768801 |
KIT.PLATE.SEAT This part replaces 532196977. Price: $49.99 |
| 10 |
67-1751 |
BUSHING Price: $4.89 |
| 10 |
741-04548 |
Cup Bearing This part replaces 741-0372. Price: $7.72 |
| 11 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 11 |
741-04549 |
Cone Bearing This part replaces 741-0373. Price: $17.28 |
| 12 |
256-121 |
WASHER-THRUST Price: $4.55 |
| 12 |
717-3127 |
RETAINER RING Not Available Price: |
| 13 |
67-7250 |
SPACER-RING Price: $3.32 |
| 13 |
726-0216 |
EXPANSION PLUG Not Available Price: |
| 14 |
3220-3 |
NUT-HJ Price: $0.28 |
| 14 |
715-0146 |
DOWEL PIN 3/8 x 5/8 Not Available Price: |
| 15 |
93-7001-03 |
SPINDLE-LH This part replaces 93-7001. Price: $370.29 |
| 15 |
936-0141 |
Spr. Wash. 7/16" I.D. This part replaces 736-0141. Price: $6.01 |
| 16 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 16 |
710-0850 |
HEX SCREW 7/16-14X2.5 Not Available Price: |
| 17 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 17 |
736-0226 |
Washer, Flat, .46 X .875 X .060 Thk Price: $3.64 |
| 18 |
21-2820 |
HUB Price: $269.34 |
| 18 |
710-0844 |
HEX SCREW 7/16-14 x 1.75 LG Not Available Price: |
| 19 |
231-141 |
DISCONTINUED Price: Call Us |
| 20 |
241-121 |
WHEEL ASM This part replaces 217-121. Price: $162.77 |
| 21 |
5108 |
VALVE This part replaces 232-35. Price: $6.29 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 21 |
717-3097 |
SHIM, BEARING RETAINER, .004 Not Available Price: |
| 22 |
717-3098 |
SHIM, BEARING RETAINER, .007 Not Available Price: |
| 22 |
93-0309 |
WASHER-TAB Price: $3.52 |
| 23 |
3220-7 |
NUT-JAM Price: $4.09 |
| 23 |
717-3099 |
Shim, Bearing Retainer, .014 Thk Price: $32.65 |
| 24 |
717-3100 |
SHIM .028 Not Available Price: |
| 25 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 26 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 26 |
741-0400 |
ROLLER CUP Not Available Price: |
| 27 |
111512 |
DISCONTINUED This part replaces 10-6830. Price: Call Us |
| 28 |
253-129 |
SEAL Price: $21.73 |
| 28 |
903-0911P |
DIPSTICK Not Available This part replaces 703-0911. Price: |
| 29 |
67-9410 |
WASHER Price: $2.04 |
| 29 |
703-0831 |
Bracket, Trans Mtg - LH Price: Call Us |
| 30 |
328-25 |
SCREW-HH Price: $4.07 |
| 30 |
703-0830 |
BRACKET-TRANS MTG (RH) Not Available Price: |
| 31 |
237-78 |
O-RING Price: $3.85 |
| 31 |
710-3118 |
Bolt, Hex Patch, 3/8-16 X 1.0 Lg GR5 Price: $4.77 |
| 32 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 33 |
237-21 |
O-RING Price: $0.70 |
| 34 |
75-6230 |
HOSE Price: $133.10 |
| 35 |
21-0141 |
RH BALL JOINT ASM Price: $109.12 |
| 36 |
3220-5 |
NUT-JAM Price: $0.65 |
| 37 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 37 |
75-3130-03 |
ROD-TIE This part replaces 75-3130. Price: $74.06 |
| 38 |
3220-12 |
NUT-HEX JAM LH Price: $1.83 |
| 39 |
21-0151 |
LH BALL JOINT ASM Price: $126.28 |
| 40 |
32151-77 |
RING-RETAINING, EXTERNAL Price: $4.07 |
| 40 |
595088102 |
Handles This part replaces 532197661. Price: $4.99 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $3.99 |
| 41 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 42 |
75-4410 |
DISCONTINUED Price: Call Us |
| 43 |
76-2970 |
BUSHING-STRAIGHT Price: $9.02 |
| 43 |
874760612 |
BOLT Price: $3.99 |
| 44 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133812. Price: $4.99 |
| 44 |
75-4180-03 |
MASKED PIN ASM This part replaces 75-4180. Price: $136.86 |
| 45 |
75-2900 |
REAR AXLE WA Price: $1,154.77 |
| 46 |
237-165 |
GROMMET Price: $15.70 |
| 47 |
110-4130 |
CYLINDER-STEER, HYD This part replaces 75-1200. Price: $823.03 |
| 49 |
328-27 |
SCREW HH Price: $14.79 |
| 50 |
75-6230 |
HOSE Price: $133.10 |
| 51 |
66-2990 |
CAP-SPINDLE Price: $13.27 |
| 52 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 53 |
93-0307 |
NUT-LOCK, RETAINER Price: $3.36 |
