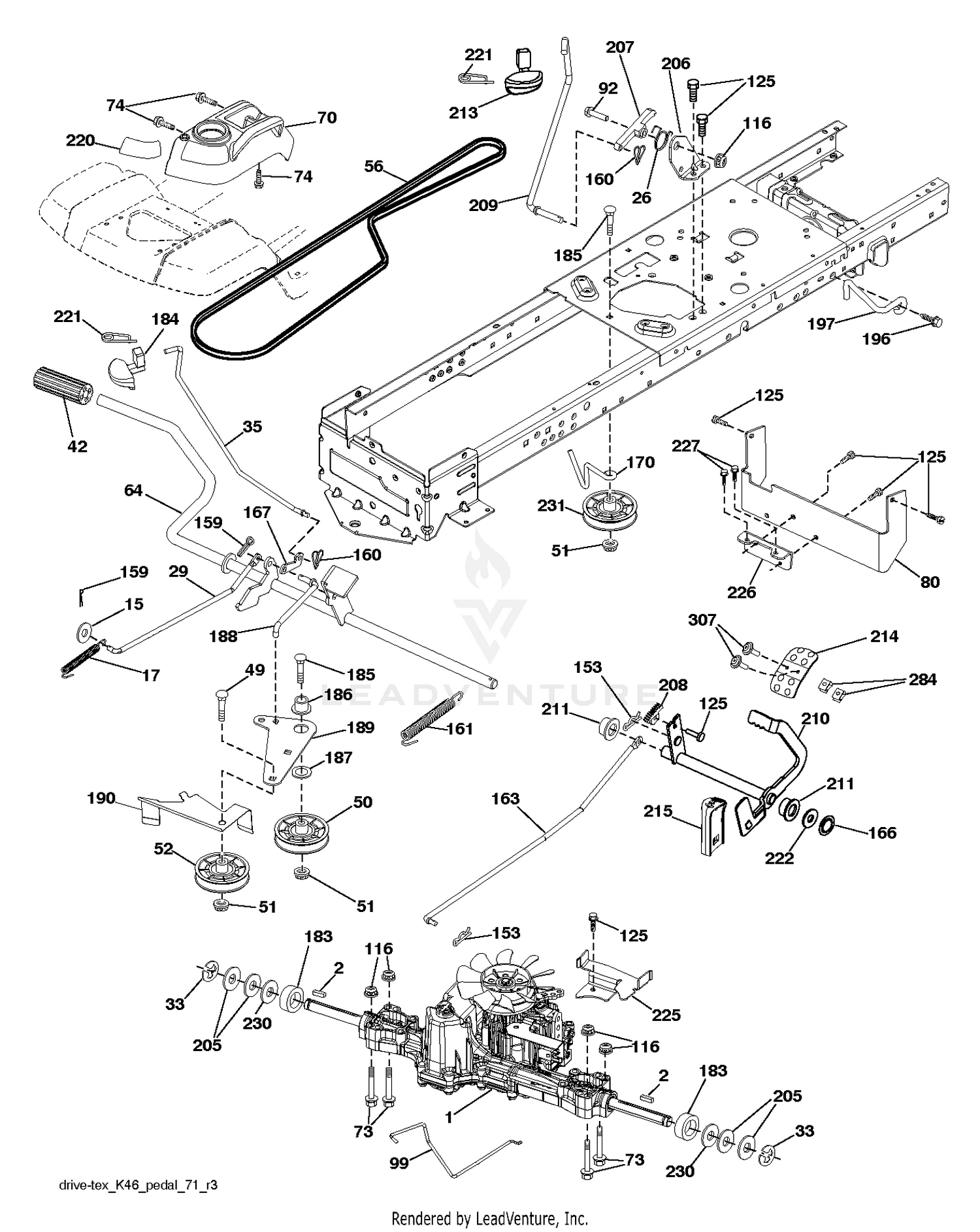

| Ref | Part Number | Description |
|---|
| 1 |
43-1911 |
FAN This part replaces 43-1910. Price: $152.80 |
| 2 |
43-3690 |
SHAFT-FAN Price: $469.68 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 3 |
3257-30 |
KEY-WOODRUFF Price: $5.35 |
| 4 |
43-3700 |
HUB - FAN Price: $144.65 |
| 5 |
38-7820 |
BEARING-BALL Price: $13.99 |
| 6 |
53-9750-03 |
MASKED FAN MOUNT ASM This part replaces 53-9750. Price: $613.60 |
| 7 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 8 |
43-3870-03 |
MUFFLER SUPPORT This part replaces 43-3870. Price: $30.07 |
| 9 |
3233-14 |
SCREW-CARR Price: $1.95 |
| 10 |
43-3880 |
PULLEY HUB WA Price: $83.15 |
| 11 |
43-5910 |
FAN BELT Price: $16.05 |
| 12 |
29-8910 |
WASHER Price: $0.75 |
| 13 |
32136-3 |
NUT-SHH Price: $1.22 |
| 14 |
3272-16 |
PIN-COTTER Price: $0.31 |
| 15 |
3-6803 |
WASHER-ADJUSTING Price: $0.75 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
32128-23 |
NUT-HF Price: $1.51 |
| 17 |
43-3850 |
MUFFLER Price: $433.18 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 18 |
66-5310-03 |
V PULLEY-IDLER This part replaces 66-5310. Price: $75.13 |
| 19 |
66-5320 |
SPACER IDLER FAN Price: $3.08 |
| 20 |
33014-00 |
NUT-HEX This part replaces 42-9580. Price: $0.25 |
| 21 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 22 |
77-3140-03 |
ENGINE MOUNT ASM This part replaces 77-3140. Price: $92.87 |
| 23 |
32128-37 |
NUT-HF Price: $3.63 |
| 24 |
43-3200 |
HEX HD CAPSCREW Price: $13.96 |
| 25 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 26 |
43-3530-03 |
FLYWHEEL PULLEY This part replaces 43-3530. Price: $512.12 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
324-11 |
SCREW-HH Price: $3.05 |
| 28 |
53-9480 |
WASHER-SNUBBER Price: $3.87 |
| 29 |
131-1821 |
MOUNT-ENGINE This part replaces 53-9680. Price: $105.39 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 30 |
42-6080 |
SHIM-AXLE Price: $29.45 |
| 31 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 32 |
66-7030 |
DISCONTINUED Price: Call Us |
| 33 |
3234-12 |
SCREW-HHF Price: $0.61 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 34 |
33114-016 |
SCREW-HH This part replaces 42-9230. Price: $0.27 |
| 35 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 35 |
583864502 |
Rods This part replaces 532435486. Price: $6.99 |
| 36 |
321-3 |
SCREW-HH Price: $0.28 |
| 37 |
68-9110 |
MOUNT SHIM Price: $8.44 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855201 |
Belts This part replaces 532130969. Price: $27.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 70 |
532439661 |
CONSOLE.ASM.RH.GT.FC.HUSQ Price: $79.99 |
| 73 |
596136501 |
Bolts This part replaces 874490540. Price: $3.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
531064101 |
SERVICE KIT TORQUE STRAP BLACK This part replaces 532440619. Price: $19.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
532415742 |
ROD.SPRING.BYPASS.K46.LT.Z Price: $7.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
593861001 |
Rods This part replaces 532401034. Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532194322 |
KEEPER.V-IDLER.CENTER. Price: $5.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532195804 |
LINK.CLUTCH.ANIT-ROTAT Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532197860 |
ROCKER.ASM.PEDAL.CONTR Price: $44.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532416863 |
PEDAL.FORWARD.HUSQVARNA.DEALER Price: $32.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 226 |
531170501 |
SERVICE KIT BRACKET This part replaces 532401564. Price: $4.99 |
| 227 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 230 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 231 |
532407287 |
IDLER.V-GROOVE.1.688.OFFSET Price: $19.99 |
| 284 |
532417693 |
NUT.U-CHNL.1/4-20.550DP.350PNL Price: $3.99 |
