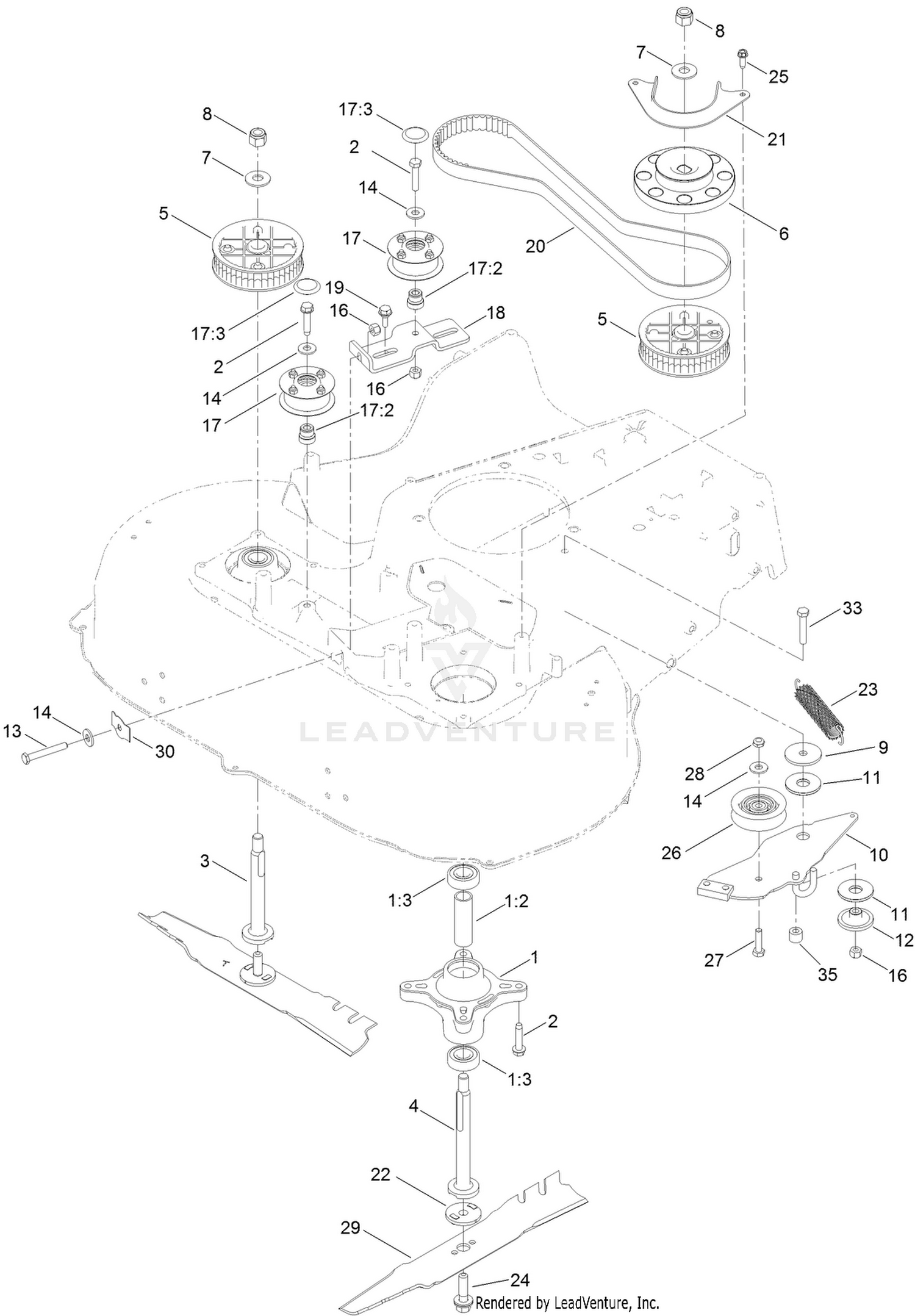

| Ref | Part Number | Description |
|---|
| 1 |
121-9107 |
SPINDLE ASM Price: $69.99 |
| 2 |
139-1731 |
SCREW-THD ROLL, HWH Price: $0.79 |
| 3 |
139-6612 |
SHAFT-SPINDLE Price: $27.99 |
| 4 |
139-6613 |
SHAFT-SPINDLE Price: $28.99 |
| 5 |
121-9100 |
SPROCKET Price: $50.99 |
| 6 |
130-6664 |
PULLEY-BRAKE, SPINDLE Price: $44.99 |
| 7 |
109-9505 |
WASHER-SPRING Price: $4.49 |
| 8 |
139-1725 |
NUT-HEX Price: $0.79 |
| 9 |
139-1726 |
Washer Price: $1.99 |
| 10 |
133-8102 |
BRAKE ARM ASM Price: $45.99 |
| 11 |
114-0463 |
WASHER-FRICTION, COMPOSITE This part replaces 121-2305. Price: $4.79 |
| 12 |
161-8318 |
SPACER This part replaces 138-3244. Price: $15.99 |
| 13 |
139-1728 |
BOLT-HH FT Price: $1.29 |
| 14 |
139-1723 |
WASHER-FLAT Price: $0.39 |
| 16 |
119-4038 |
NUT-HEX Price: $0.31 |
| 17 |
161-4815 |
IDLER-PULLEY This part replaces 139-1758. Price: $14.99 |
| 18 |
145-4016 |
BRACKET-IDLER This part replaces 138-3232. Price: $7.99 |
| 19 |
139-1730 |
Screw Price: $2.59 |
| 20 |
120-3335 |
BELT-SYNCHRONOUS Price: $52.99 |
| 21 |
120-5245-03 |
GUIDE-BELT, SPINDLE Price: $10.99 |
| 22 |
120-5236 |
ADAPTER-BLADE Price: $6.49 |
| 23 |
121-5808 |
SPRING-EXTENSION, BRAKE Price: $15.99 |
| 24 |
125-2466 |
BOLT-BLADE Price: $3.09 |
| 25 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 26 |
120-7082 |
PULLEY-IDLER Price: $21.99 |
| 27 |
120-9696 |
SCREW-HH Price: $0.31 |
| 28 |
137-3089 |
NUT-HEX Price: $0.39 |
| 29 |
116-6358-03 |
BLADE-ROTARY Price: $20.99 |
| 30 |
121-2336 |
SPRING-FLAT Price: $7.29 |
| 33 |
139-1719 |
SCREW-HH Price: $0.69 |
