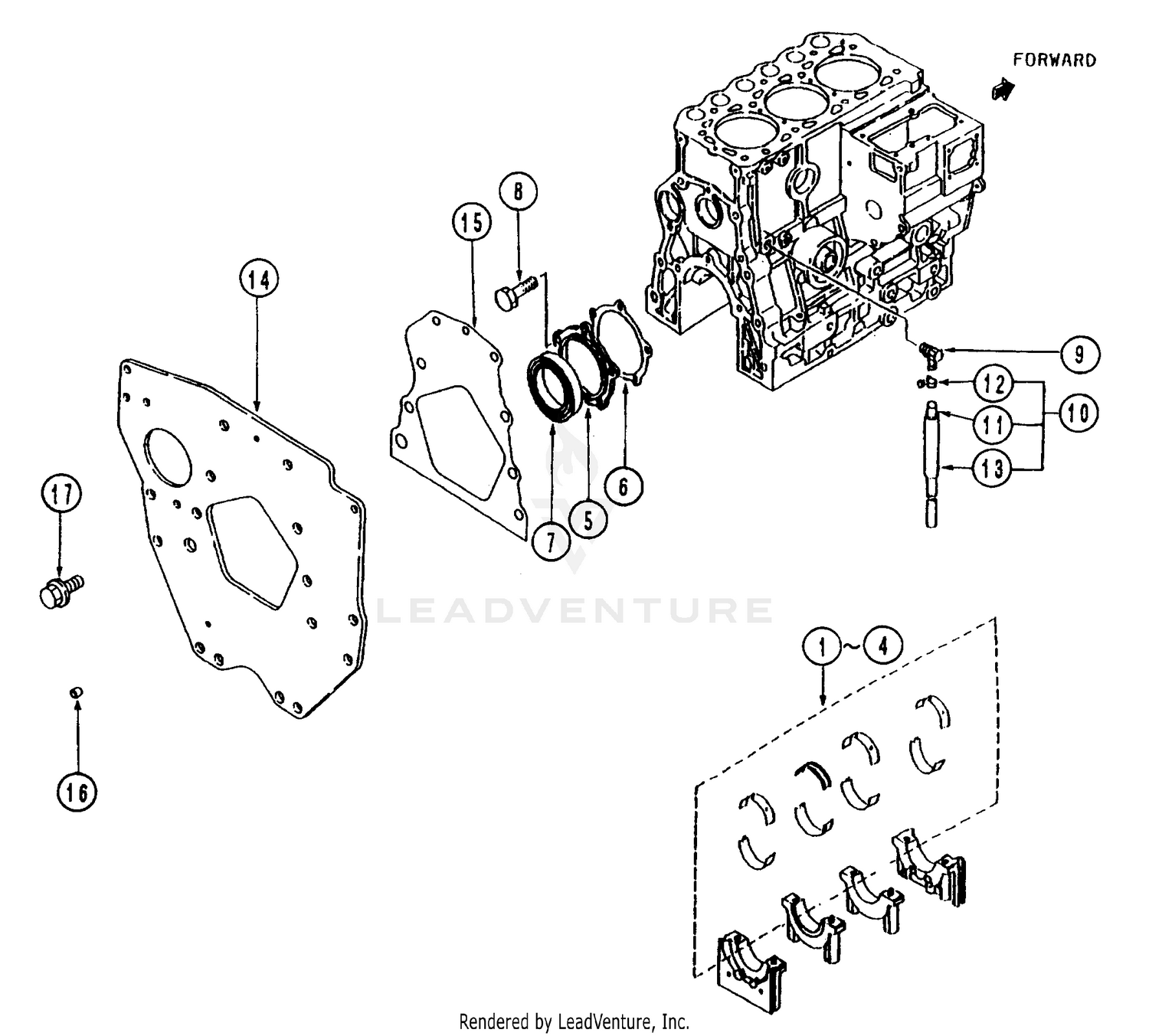

Crankcase 26 HP Engine
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | MA-31A09-01010 | BEARING SET-CRANK STD Not Available This part replaces MA-MM437880. Price: |
| 2 | MA-31A09-01020 | BEARING SET-MAIN Not Available This part replaces MA-MM437881. Price: |
| 3 | MA-31A09-01030 | BEARING SET-MAIN Not Available This part replaces MA-MM437882. Price: |
| 4 | MA-MM408163 | BEARING SET Not Available This part replaces MA-MM437883. Price: |
| 5 | MA-31A07-11601 | HOUSING-REAR OIL SEAL Not Available This part replaces MA-31A07-11600. Price: |
| 6 | MA-31A07-11701 | GASKET-OIL SEAL Not Available Price: |
| 7 | MA-31A07-02300 | OIL SEAL Not Available Price: |
| 8 | MA-F1035-08020 | BOLT Not Available Price: |
| 9 | MA-31A46-02300 | JOINT-WATER DRAIN Not Available This part replaces MA-MM408260. Price: |
| 11 | MA-MS602095 | PIPE Not Available Price: |
| 12 | MA-MS660163 | CLIP Not Available Price: |
| 13 | MA-MM43721501 | HOSE-RUBBER Not Available Price: |
| 14 | MA-31B07-24300 | PLATE-REAR Not Available Price: |
| 15 | MA-31A07-02401 | GASKET-REAR PLATE Not Available Price: |
| 16 | MA-MM408240 | PIN Not Available Price: |
| 501948701 | 501948701 | CRANKCASE NLA Price: $82.45 |
| 501948801 | 501948801 | FAN HOUSING NLA Price: $35.50 |
| 501948901 | 501948901 | Support Price: $14.25 |
| 502185101 | 502185101 | SCREW NLA Price: $3.94 |
| 503218320 | 503218320 | Screw 5x25 Price: $2.41 |
| 503260503 | 503260503 | Sealing Ring Price: $9.13 |
| 720130720 | 720130720 | PIN NLA Price: $4.46 |
