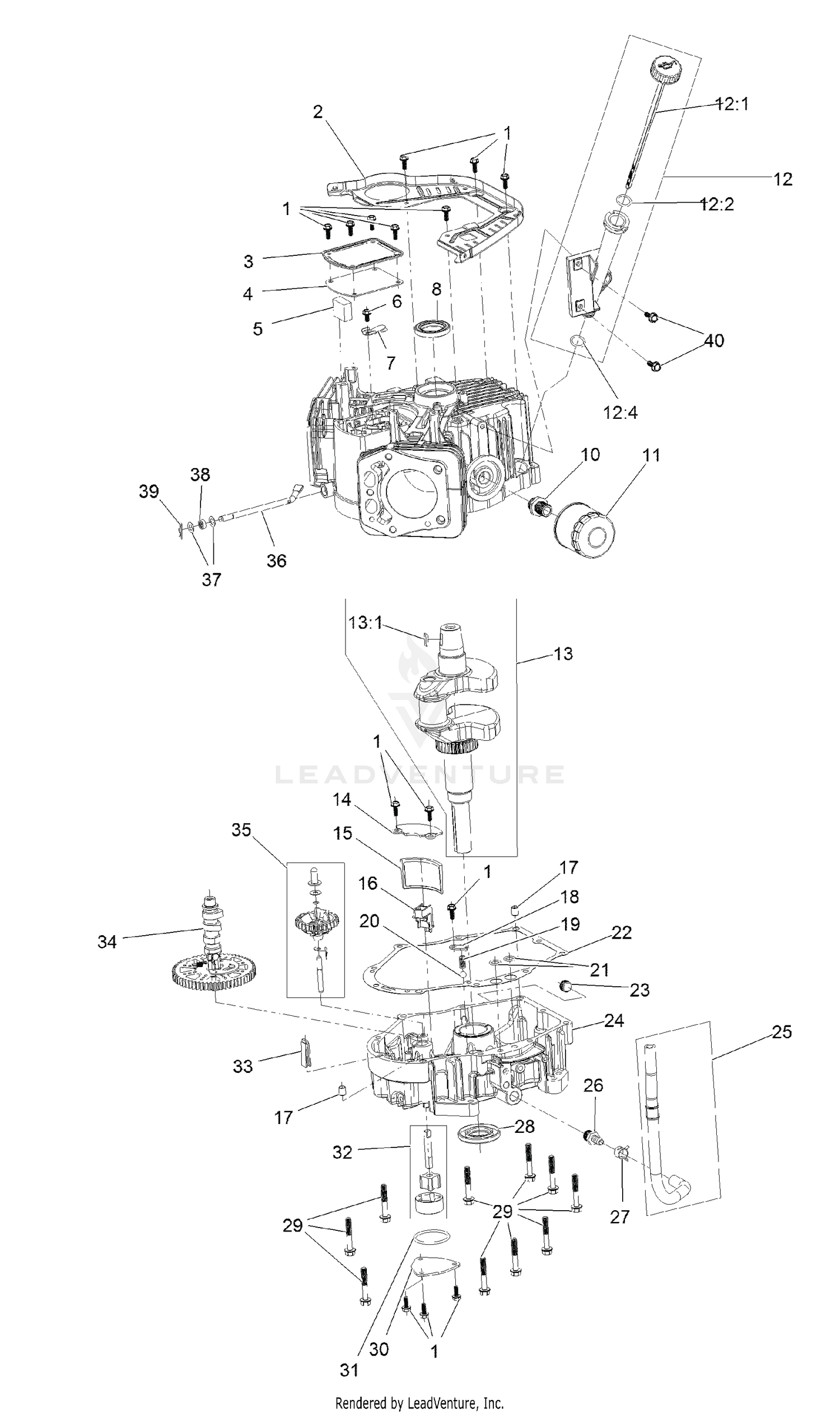

Crankcase and Crankshaft Assembly
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 120-4232 | SCREW-HHF Price: $1.29 |
| 2 | 127-9212 | BAFFLE Price: $34.99 |
| 3 | 127-9213 | COVER-BREATHER Price: $9.99 |
| 4 | 127-9214 | GASKET-BREATHER Price: $7.49 |
| 5 | 127-9215 | FILTER-BREATHER Price: $10.99 |
| 6 | 120-4216 | SCREW-HHF Price: $1.29 |
| 7 | 127-9217 | VALVE-BREATHER Price: $11.99 |
| 8 | 120-4267 | SEAL-OIL Price: $18.99 |
| 10 | 136-7884 | ADAPTOR-FILTER, OIL Price: $11.99 |
| 11 | 136-7848 | FILTER-OIL Price: $17.99 |
| 12 | 127-9218 | OIL TUBE ASM Price: $21.99 |
| 13 | 127-9255 | CRANKSHAFT Price: $281.99 |
| 14 | 127-9261 | COVER-SCREEN, OIL Price: $5.89 |
| 15 | 127-9262 | SCREEN-OIL Price: $13.99 |
| 16 | 127-9263 | RETAINER-SCREEN Price: $4.79 |
| 17 | 120-4274 | PIN-DOWEL Price: $1.29 |
| 18 | 127-9264 | PLATE-RETAINER Price: $8.29 |
| 19 | 127-9265 | SPRING Price: $1.19 |
| 20 | 127-9266 | VALVE-BALL Price: $1.19 |
| 21 | 120-4262 | O-RING Price: $1.19 |
| 22 | 127-9267 | GASKET-COVER, CRANKCASE Price: $14.99 |
| 23 | 133-9805 | PLUG-DRAIN Price: $7.19 |
| 24 | 133-9806 | COVER-CRANKCASE Price: $236.99 |
| 25 | 127-9293 | OIL DRAIN HOSE ASM Price: $44.99 |
| 26 | 127-9275 | FITTING-HOSE Price: $13.99 |
| 27 | 127-9276 | CLAMP-HOSE Price: $2.29 |
| 28 | 127-9271 | SEAL Price: $14.99 |
| 29 | 121-0473 | SCREW-HHF Price: $2.59 |
| 30 | 127-9274 | COVER-OIL PUMP Price: $8.29 |
| 31 | 127-9273 | O-RING Price: $2.29 |
| 32 | 127-9272 | OIL PUMP ASM Price: $33.99 |
| 33 | 120-4275 | DEFLECTOR-OIL, RUBBER Price: $1.29 |
| 34 | 133-1568 | CAMSHAFT Price: $93.99 |
| 35 | 136-7882 | GOVERNOR ASM Price: $25.99 |
| 36 | 127-9238 | SHAFT-GOVERNOR Price: $7.49 |
| 37 | 120-4258 | WASHER-PLAIN Price: $1.19 |
| 38 | 120-4257 | SEAL-OIL Price: $4.79 |
| 39 | 120-4256 | PIN-HAIR Price: $1.19 |
