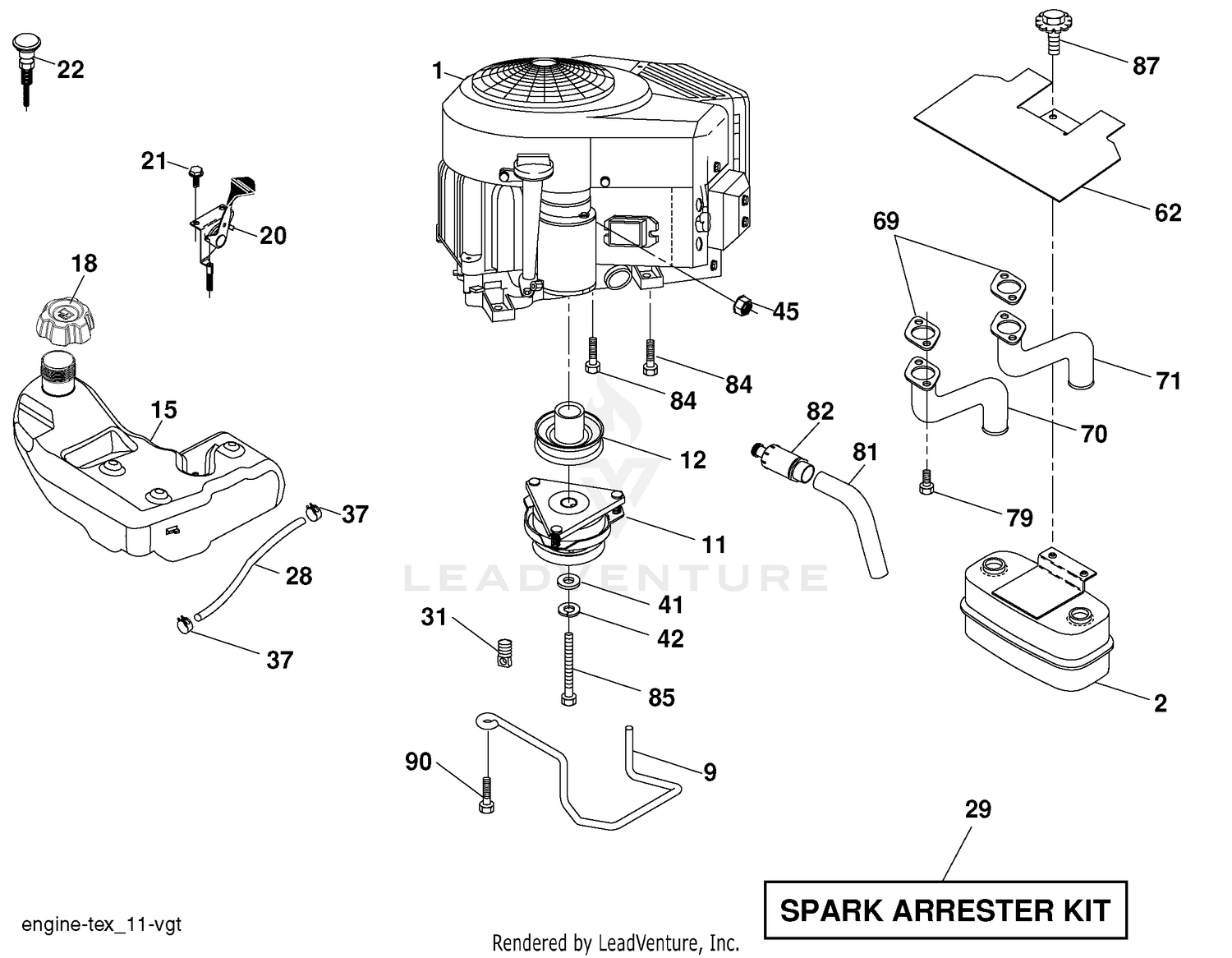

| Ref | Part Number | Description |
|---|
| 2 |
149723 |
Muffler Price: Call Us |
| 9 |
194319 |
Keeper Belt Engine Price: Call Us |
| 010 |
100-9237 |
STARTER ASM Price: $774.46 |
| 11 |
179334 |
Clutch Electric Price: Call Us |
| 12 |
402980 |
Pulley Engine Price: Call Us |
| 15 |
400021 |
Tank Fuel 3.0 Price: Call Us |
| 18 |
195951 |
Cap Asm Price: Call Us |
| 020 |
98-7735 |
STUD Price: $1.36 |
| 20 |
175437X428 |
Control Throttle Price: Call Us |
| 21 |
191611 |
Screw 10 x 3/4 Single Lead-Hex Price: Call Us |
| 22 |
187767X428 |
Control Choke Price: Call Us |
| 28 |
401135 |
Fuel Line Price: Call Us |
| 29 |
137180 |
Spark Arrester Kit Price: Call Us |
| 030 |
98-7736 |
BOLT Price: $1.66 |
| 31 |
145006 |
Clip Push-In Hinged Price: Call Us |
| 37 |
123487X |
Clamp Hose Price: Call Us |
| 040 |
99-7526 |
NUT This part replaces 98-7737. Price: $1.29 |
| 41 |
126197X |
Washer 1-1/2 OD x 15/32 ID x .250 Price: Call Us |
| 42 |
10040700 |
Washer Lock 7/16 Price: Call Us |
| 45 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 050 |
99-7527 |
WASHER-SPRING This part replaces 98-9368. Price: $1.02 |
| 060 |
98-7739 |
NUT Price: $1.08 |
| 62 |
146629 |
Shield Heat Muffler Price: Call Us |
| 69 |
165391 |
Gasket Price: Call Us |
| 70 |
159955 |
Exhaust Tube RH Price: Call Us |
| 71 |
160589 |
Exhaust Tube LH Price: Call Us |
| 79 |
183906 |
Screw Socket Head 5/16-18 x 1 Price: Call Us |
| 81 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 82 |
181654 |
Plug Drain Oil Price: Call Us |
| 84 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 85 |
150280 |
Bolt Hex 7/16-20 x 4 x 1/4 5 Ga. Price: Call Us |
| 87 |
171877 |
Bolt 5/16-18 x 3/4 Price: Call Us |
