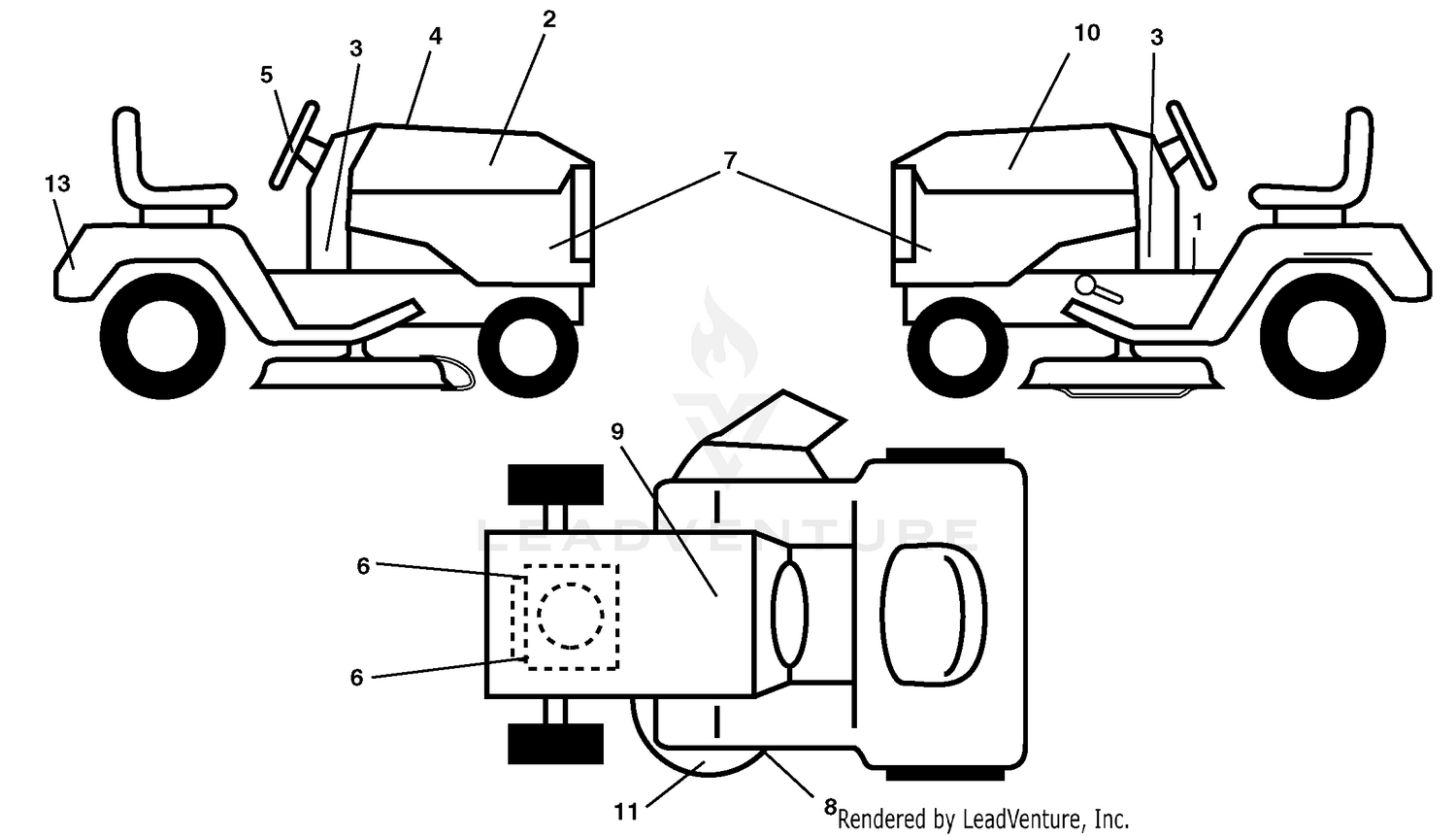

| Ref | Part Number | Description |
|---|
| 1 |
402587 |
Decal, Operator's Price: Call Us |
| 2 |
190425 |
Decal, Hood RH Price: Call Us |
| 3 |
402458 |
Decal, Dash Lower Price: Call Us |
| 4 |
404425 |
Decal, Replacement Price: Call Us |
| 5 |
190430 |
Decal, Strg Whl Price: Call Us |
| 6 |
405276 |
Decal, Engine HP Price: Call Us |
| 7 |
404557 |
Decal, Side Panel Price: Call Us |
| 8 |
198785 |
Decal, Mower Sch. Price: Call Us |
| 9 |
145005 |
Decal, Battery Dnge/Poi Price: Call Us |
| 010 |
98-9643 |
INJECTION PUMP ASM Price: $2,551.99 |
| 10 |
190426 |
Decal, Hood LH Price: Call Us |
| 11 |
178455 |
Decal, Mower Caution Price: Call Us |
| 12 |
190429 |
Decal, Fender Price: Call Us |
| 13 |
166960 |
Decal, Bypass Price: Call Us |
| 14 |
193279X428 |
Pad, Footrest, RH Price: Call Us |
| 15 |
193101X428 |
Pad, Footrest, LH Price: Call Us |
| 17 |
402670 |
Manual, Operator's E&SP Price: Call Us |
| 19 |
405247 |
Manual, Parts Price: Call Us |
| 020 |
98-9462 |
ELEMENT-PUMP Price: $282.73 |
| 030 |
98-9421 |
VALVE-DELIVERY Price: $116.98 |
| 040 |
98-9424 |
SPRING-VALVE, DELIVERY Price: $21.66 |
| 050 |
98-9425 |
GASKET-VALVE, DELIVERY Price: $10.58 |
| 060 |
98-9652 |
HOLDER-VALVE, DELIVERY Price: $111.74 |
| 070 |
98-9447 |
O-RING Price: $18.23 |
| 080 |
98-9434 |
FLANGE-SLEEVE Price: $17.25 |
| 090 |
98-9443 |
PIN-JOINT Price: $13.13 |
| 100 |
98-9423 |
O-RING Price: $6.07 |
| 110 |
98-9452 |
SCREW This part replaces 105-2892. Price: $7.23 |
| 120 |
98-9422 |
TAPPET ASM Price: $275.51 |
| 130 |
98-9426 |
PIN-GUIDE, TAPPET Price: $7.65 |
| 140 |
98-9450 |
PIN-CLAMP Price: $2.77 |
| 150 |
98-9428 |
SPRING-PLUNGER Price: $32.36 |
| 160 |
98-9427 |
SEAT-SPRING, UPPER Price: $16.02 |
| 170 |
98-9429 |
SEAT-SPRING, LOWER Price: $50.60 |
| 180 |
98-9433 |
SHIM Price: $2.13 |
| 190 |
98-9643 |
INJECTION PUMP ASM This part replaces 98-9463. Price: $2,551.99 |
| 200 |
98-9465 |
PLATE Price: $9.73 |
| 210 |
98-9442 |
SCREW Price: $26.58 |
| 220 |
98-9432 |
SLEEVE-CONTROL Price: $107.77 |
| 230 |
98-9464 |
BOLT-JOINT Price: $20.48 |
| 240 |
98-9445 |
GASKET Price: $1.84 |
| 250 |
98-9430 |
SCREW Price: $19.45 |
| 260 |
98-9446 |
GASKET Price: $2.50 |
| 270 |
98-9466 |
PLUG Price: $12.54 |
| 166960 |
Decal, |
Bypass Price: Call Us 166960 |
| 193101X428 |
Pad, |
Footrest, LH Price: Call Us 193101X428 |
| 193279X428 |
Pad, |
Footrest, RH Price: Call Us 193279X428 |
| 402670 |
Manual, |
Operator's E&SP Price: Call Us 402670 |
