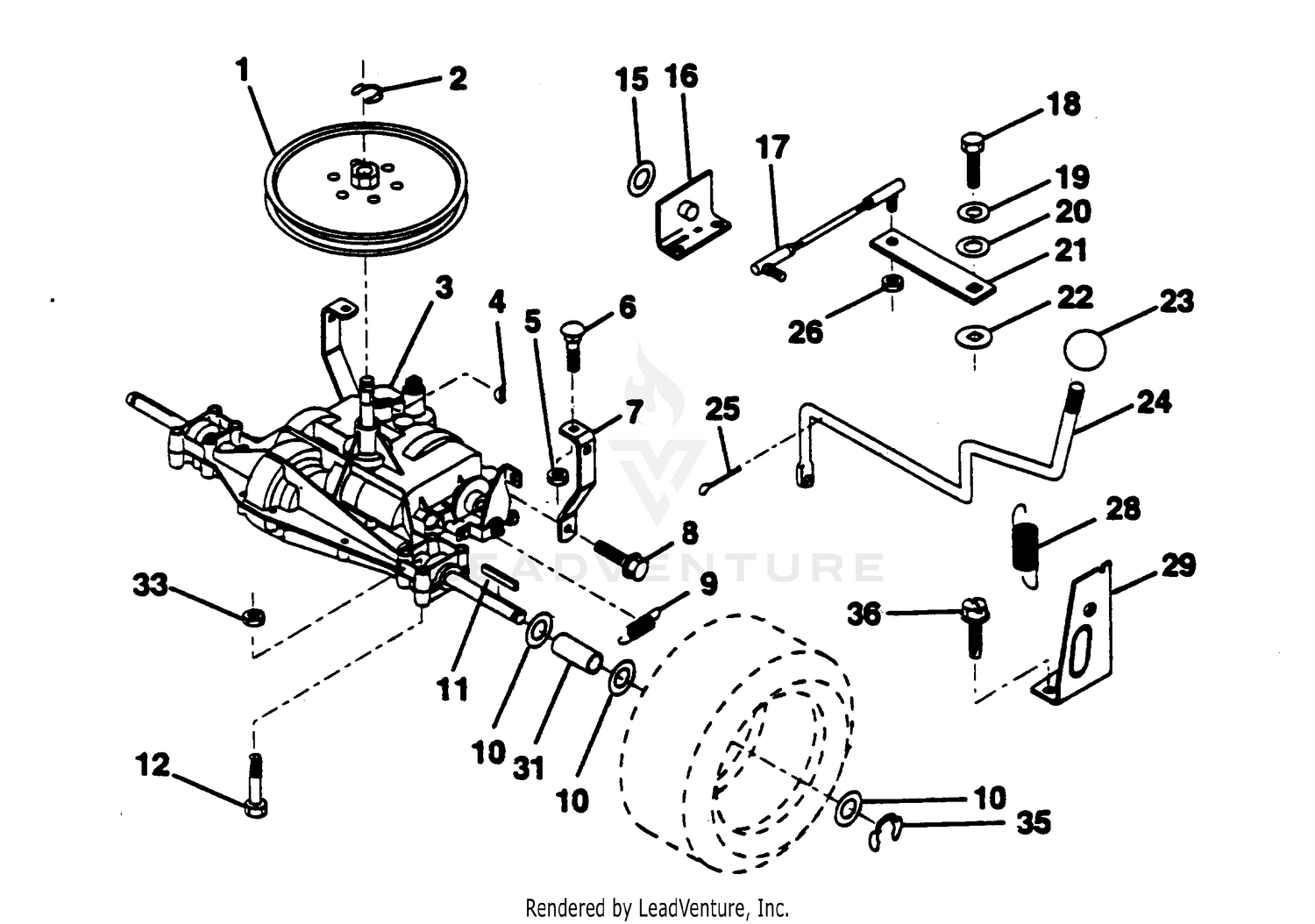

TRANSAXLE

TRANSAXLE

Parts (29)

RefPart NumberDescription
1 532123385 Pulley Price: $22.99
2 532002267 Ring, Retaining This part replaces 812000028. Price: $3.99
3 532142602 Transaxle, Dana 5 Spd. Model No. 4360-78 Price: $739.50
4 532125096 Key, Woodruff #9 Price: $3.99
5 873800500 Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69
6 539990316 RHSNB.5/16-18.X3/4.GR.5.ZD This part replaces 872140506. Price: $1.49
7 532123378 Strap, Torque Price: $2.99
8 539976934 HCS.5/16-18X3/4 This part replaces 817490512. Price: $1.99
9 532146682 Spring Return Brake This part replaces 532110422. Price: $4.99
10 532121749 Washer 25/32 x 1-1/4 x 16 Ga. Price: $1.99
11 532123583 Key, Square Price: $2.69
12 874760644 Bolt, Fin Hex 3/8-16 UNC 2-3/4 Price: $3.99
15 532052160 Washer This part replaces 819171616. Price: $3.99
16 532124600 Support Handle Shift LH Price: $2.38
17 532123632 Link, Shift Price: $14.99
18 871040412 Bolt, Shift Plate This part replaces 874550412. Price: $3.99
19 810040400 Washer, Lock 1/4 Price: $3.99
20 734115201 WASHER - M6 This part replaces 819091210. Price: $1.99
21 532123484 Arm, Shift Price: $2.38
22 532105701 Washer, Shift Plate Price: $3.99
23 532106933 Knob, Rd 1/2-13 Price: $3.99
24 532128215 Rod Shift Price: $20.99
25 876020416 Pin, Cotter 1/8 x 1 Price: $3.99
26 873610500 NUT This part replaces 873810500. Price: Call Us
28 532128085 Extension, Spring Price: $4.99
29 532128084 Support Handle Shift RH Price: $2.38
31 532109502 Spacer Axle Price: $3.99
33 873680600 Nut, Crownlock 3/8-16 Price: $1.99
35 812000001 E-Ring Price: $2.99
