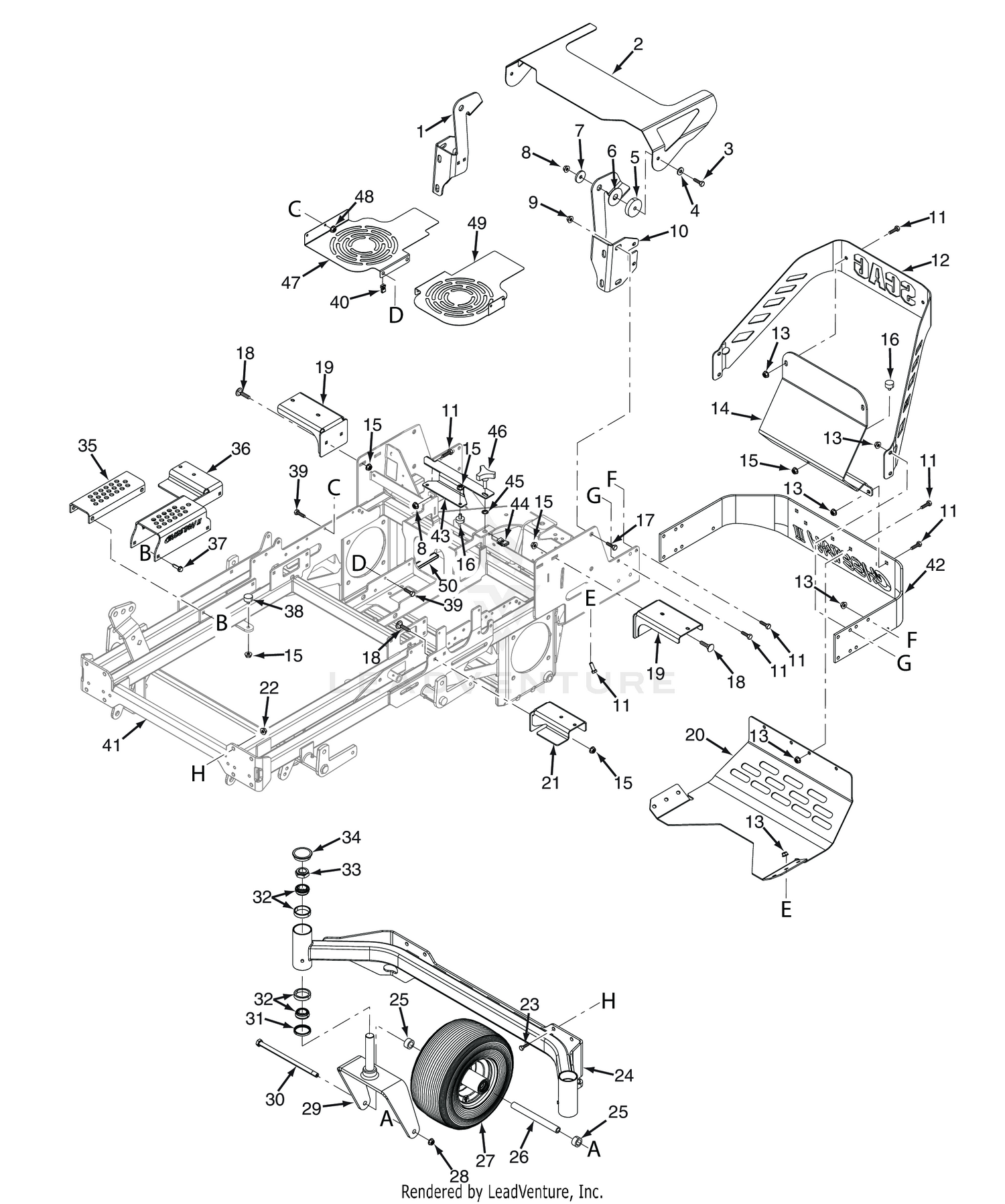

| Ref | Part Number | Description |
|---|
| 1 |
427178 |
ROPS Mount, RH, 29CV-EFI Price: Call Us |
| 2 |
428312 |
Hood, SCZII Price: Call Us |
| 3 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI) Price: Call Us |
| 4 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 5 |
43740 |
Spacer, Hood Price: Call Us |
| 6 |
483471 |
Disc, Anti-Friction Price: Call Us |
| 7 |
04041-11 |
Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge Price: Call Us |
| 8 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 9 |
04117-04 |
Nut, Elastic Stop 1/2-13, (STT-52 & STTII-52) Price: Call Us |
| 10 |
427177 |
ROPS Mount, LH, 29CV-EFI Price: Call Us |
| 11 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us |
| 12 |
428202-G |
Engine Cover, Sides (Scag Gold) Price: Call Us |
| 13 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 14 |
428333-G |
Engine Cover, Rear (Scag Gold) Price: Call Us |
| 15 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 16 |
481284 |
Bumper, Rubber 5/16-18 x 5/8" Price: Call Us |
| 17 |
04001-70 |
Bolt, Hex Head 1/2-13 x 1-1/4" Price: Call Us |
| 18 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 19 |
428261 |
Mounting Bracket, Fuel Tank Rear Price: Call Us |
| 20 |
428292-G |
Skid Plate, Rear (Scag Gold) Price: Call Us |
| 21 |
428233 |
Mounting Bracket, Fuel Tank Front Price: Call Us |
| 22 |
04117-05 |
Nut, 7/16-14 Flange Elastic Stop Price: Call Us |
| 23 |
04001-28 |
BOLT, HEX HEAD, 7/16-14 X 1-1/4 Price: Call Us |
| 24 |
452193-G |
Caster Support 61V (Scag Gold) Price: Call Us |
| 25 |
43584 |
Spacer, Caster Wheel Price: Call Us |
| 26 |
43583 |
Sleeve, Caster Wheel (61V, 72A/VS) Price: Call Us |
| 27 |
9278 |
Wheel Assy, 61V, 72V (Incl. 20, 54, 55) Price: Call Us |
| 28 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us |
| 29 |
453110 |
Yoke Weldment Price: Call Us |
| 30 |
04001-167 |
Bolt, Hex Head 1/2-13 x 9-1/2" (61V & 72A/VS) Price: Call Us |
| 31 |
481025 |
Seal, 2.00" O.D. x 1.625" Bore Price: Call Us |
| 32 |
48668 |
Bearing Set Price: Call Us |
| 33 |
04021-20 |
Nut, Elastic Stop 1.0"-14 Price: Call Us |
| 34 |
484195 |
Cap, Grease Price: Call Us |
| 35 |
452408 |
Adjustment Bracket, Lower Cut Height Price: Call Us |
| 36 |
428228 |
Bracket, Upper Cutting Height Price: Call Us |
| 37 |
04006-02 |
Bolt, Hex Wshr Head 5/16-18 x 1-1/4" Price: Call Us |
| 38 |
484201 |
Bumper, Rubber Price: Call Us |
| 39 |
04017-05 |
Bolt, Serrated Flange Hex Head 1/4 x 20 x 3/4" Price: Call Us |
| 40 |
04110-01 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 41 |
463242-G |
Frame w/ Decals (Scag Gold) Price: Call Us |
| 42 |
428206-G |
Bumper, Rear (Scag Gold) Price: Call Us |
| 43 |
428236-G |
Cover, Battery Box (Scag Gold) Price: Call Us |
| 44 |
04110-03 |
U-Nut, 3/8-16 (short) Price: Call Us |
| 45 |
04024-02 |
Nut, Push-On - 3/8" Dia. Price: Call Us |
| 46 |
481625-01 |
Knob, w/stud 3/8-16 x 1-1/4" Price: Call Us |
| 47 |
425300-G |
Fan Cover, RH (Scag Gold) Price: Call Us |
| 48 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 49 |
425299-G |
Fan Cover, LH (Scag Gold) Price: Call Us |
| 924C |
Caster |
Wheel Assembly (Black) Price: Call Us 924C |
| 482621 |
Bearing, |
Tapered Roller Price: Call Us 482621 |
| 482622 |
Roller |
Bearing, Short Price: Call Us 482622 |
