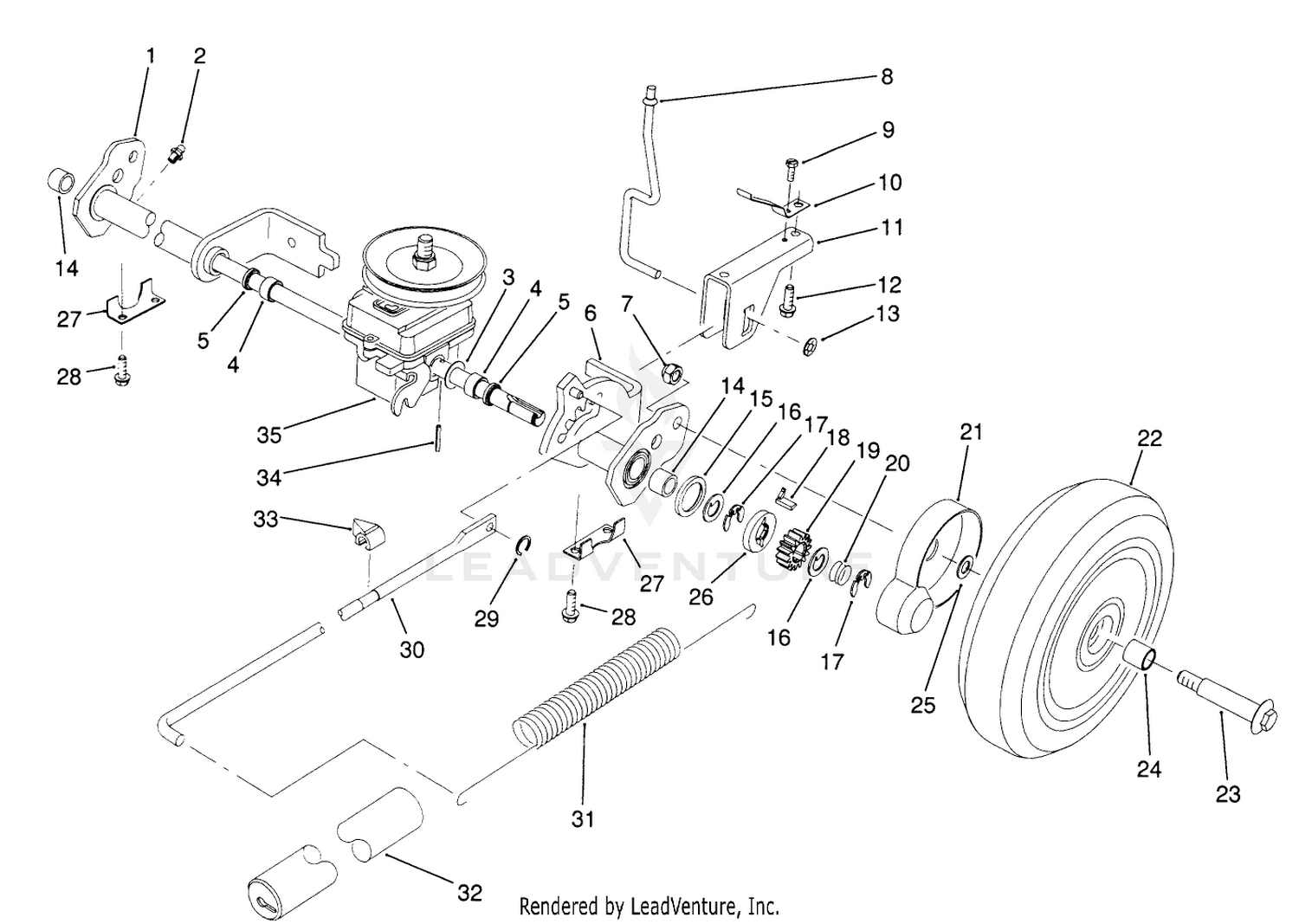

| Ref | Part Number | Description |
|---|
| 1 |
71-8430 |
DISCONTINUED Price: Call Us |
| 2 |
302-26 |
FITTING-GREASE Price: $5.79 |
| 3 |
36-4780 |
WASHER-PLAIN Price: $6.59 |
| 4 |
47-2890 |
BUSHING Price: $3.19 |
| 5 |
47-6730 |
SEAL-OIL Price: $12.99 |
| 6 |
71-8440 |
LH PIVOT ARM ASSY Price: $170.09 |
| 7 |
32153-11 |
NUT-LOCK This part replaces 52-3620. Price: $3.99 |
| 8 |
71-7840 |
TRIGGER ROD Price: $20.99 |
| 9 |
32144-31 |
SCREW 8 - 32 X 250 Price: $1.16 |
| 10 |
71-8060 |
DISCONTINUED Price: Call Us |
| 11 |
71-8080 |
SADDLE - HOC Price: $16.40 |
| 12 |
63-8590 |
SCREW Price: $0.99 |
| 13 |
32112-13 |
PUSHNUT Price: $1.79 |
| 14 |
117-3500 |
BEARING-CAGED NEEDLE ROLLER This part replaces 48-2060. Price: $4.69 |
| 15 |
65-4710 |
RING-FRICTION Price: $2.99 |
| 16 |
65-4740 |
WASHER-THRUST, KEYED Price: $1.69 |
| 17 |
65-2720 |
RING-RETAINING,CLIP Price: $0.99 |
| 18 |
139-6644 |
KEY-ROCKING, L.H. This part replaces 66-6050. Price: $6.89 |
| 19 |
65-4750 |
GEAR-PINION Price: $10.99 |
| 20 |
65-4720 |
SPRING-COMPRESSION Price: $0.89 |
| 21 |
74-1660 |
COVER-WHEEL Price: $7.99 |
| 22 |
14-9959 |
WHL & TIRE ASSEMBLY This part replaces 11-9519. Price: $47.99 |
| 23 |
27-6230 |
BOLT-WHEEL Price: $7.49 |
| 24 |
27-6250 |
BUSHING Price: $2.29 |
| 25 |
74-1670 |
SPACER-COVER, WHEEL Price: $6.19 |
| 26 |
65-4760 |
WASHER-CLUTCH Price: $1.59 |
| 27 |
71-7770 |
DISCONTINUED Price: Call Us |
| 28 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 29 |
32151-93 |
GRIP RING Price: $0.39 |
| 30 |
71-7970 |
LINK ROD Price: $20.68 |
| 31 |
71-7740 |
SPRING-COUNTERBALANCE Price: $36.99 |
| 32 |
71-8450 |
COVER-SPRING Price: Call Us |
| 33 |
71-7980 |
INDICATOR-HEIGHT OF CUT Price: $7.79 |
| 34 |
32121-88 |
COIL PIN Price: $7.79 |
