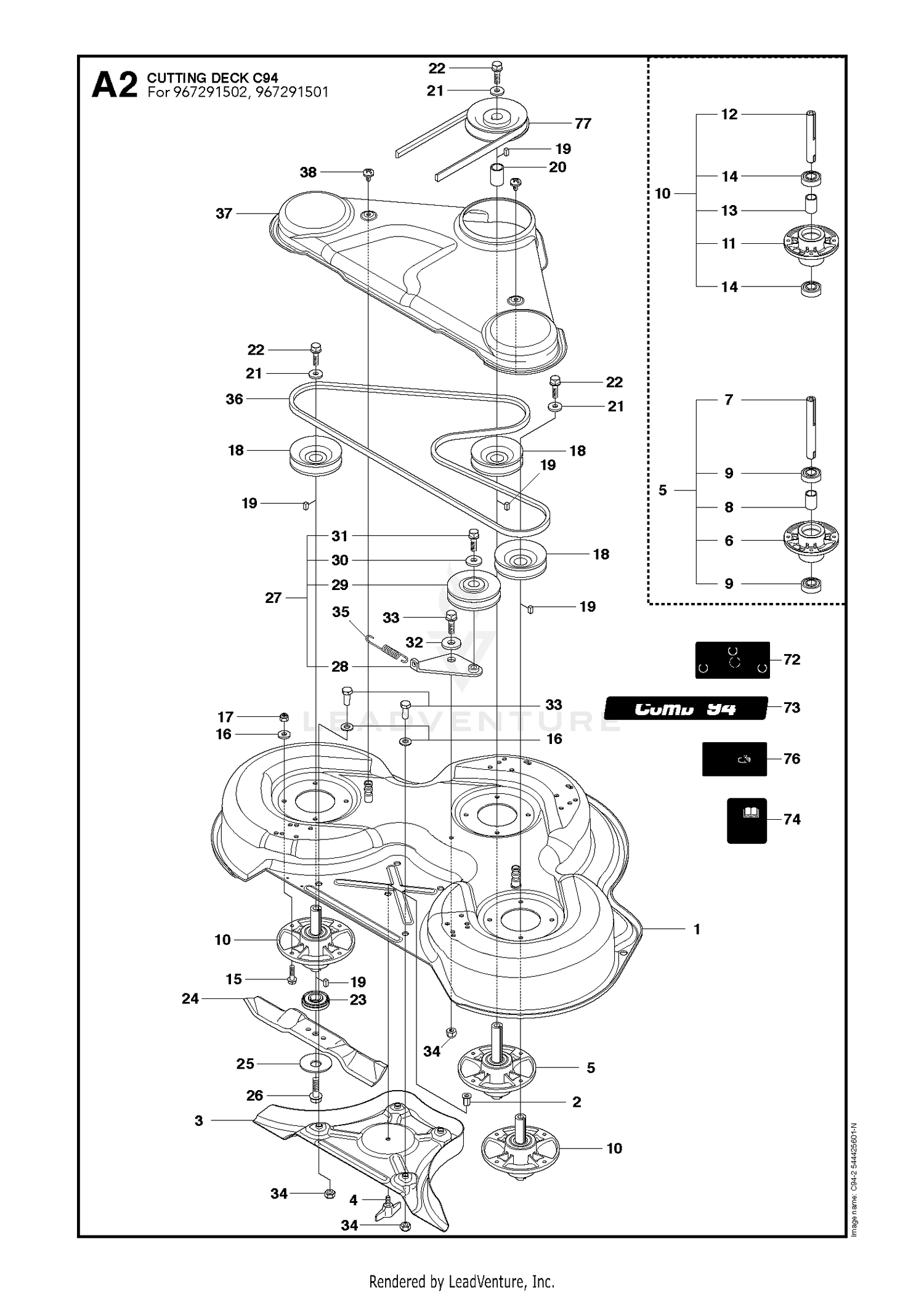

94CM CUTTING DECK 2
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-5255 | BUMPER-BASE, SEAT Price: $29.06 |
| 1 | 544065706 | CUTTING DECK CT94 GREY RIDER Price: $379.99 |
| 2 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 2 | 506916201 | NUT Price: $4.99 |
| 3 | 3231-27 | SCREW-CARR Price: $0.54 |
| 3 | 544065801 | PLUG C93 & C94 Price: $44.99 |
| 4 | 283-83 | PIN-CLEVIS Price: $9.52 |
| 4 | 544066101 | KNOB Price: $4.99 |
| 5 | 110-8971 | LATCH Price: $15.79 |
| 5 | 576384101 | BLADE HOUSING ASSY Price: $84.99 |
| 6 | 1-806003 | PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 6 | 576384201 | BEARING HOUSING Price: $29.99 |
| 7 | 576384301 | SHAFT Price: $29.99 |
| 7 | 98-0917 | ROD-PROP Price: $51.33 |
| 8 | 108-1757 | COVER-SEATBASE Price: $318.43 |
| 8 | 576384401 | SPACING SLEEVE Price: $6.99 |
| 9 | 125-2122-03 | SEAT BASE ASM Price: $449.44 |
| 9 | 738230434 | BEARING Price: $17.99 |
| 10 | 576384102 | BLADE HOUSING ASSY Price: $79.99 |
| 10 | 99-7411 | POINT-POWER Price: $30.69 |
| 11 | 576384201 | BEARING HOUSING Price: $29.99 |
| 11 | 99-7416 | CAP Price: $6.64 |
| 12 | 3272-11 | PIN-COTTER Price: $0.99 |
| 12 | 576384302 | SHAFT Price: $21.99 |
| 13 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 13 | 576384401 | SPACING SLEEVE Price: $6.99 |
| 14 | 125-2121-03 | HINGE-SEATBASE Price: $45.67 |
| 14 | 738230434 | BEARING Price: $17.99 |
| 15 | 104-4821 | SPRING-TORSION Price: $6.26 |
| 15 | 535423801 | BOLT Price: $4.99 |
| 16 | 3272-6 | PIN-COTTER Price: $0.25 |
| 16 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 17 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 17 | 94-3829 | PIN-CLEVIS Price: $2.10 |
| 18 | 3256-2 | WASHER-FLAT Price: $0.39 |
| 18 | 506922101 | PULLEY Price: $29.99 |
| 19 | 240-12 | GROMMET Price: $28.58 |
| 19 | 506533501 | KEY Price: $3.99 |
| 20 | 127-2711-03 | BRACKET-HARNESS Price: $28.84 |
| 21 | 3234-13 | SCREW-HHF Price: $0.77 |
| 21 | 734117441 | WASHER Price: $3.99 |
| 22 | 3296-16 | NUT-LOCK, NI Price: $1.39 |
| 22 | 544114101 | SCREW Price: $3.99 |
| 23 | 535504202 | ADAPTER Price: $19.99 |
| 24 | 579652510 | BLADE Price: $22.99 |
| 25 | 588145601 | WASHER This part replaces 506792301. Price: $6.99 |
| 26 | 544114101 | SCREW Price: $3.99 |
| 29 | 506532701 | PULLEY Price: $39.99 |
| 30 | 734116441 | SPACER Price: $3.99 |
| 33 | 725245171 | SCREW Price: $2.08 |
| 34 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 35 | 506533101 | SPRING Price: $9.99 |
| 36 | 589530701 | BELT Price: $49.99 |
| 37 | 544066301 | BELT COVER C93 & C94 GREY Price: $44.99 |
| 38 | 544400501 | SCREW Price: $3.99 |
| 72 | 506789701 | Decal Price: $21.55 |
| 73 | 544238101 | Price: Call Us |
| 74 | 506929001 | DECAL Price: $3.99 |
| 76 | 574510001 | DECAL Price: $2.99 |
| 77 | 506778601 | PULLEY Price: $49.99 |
