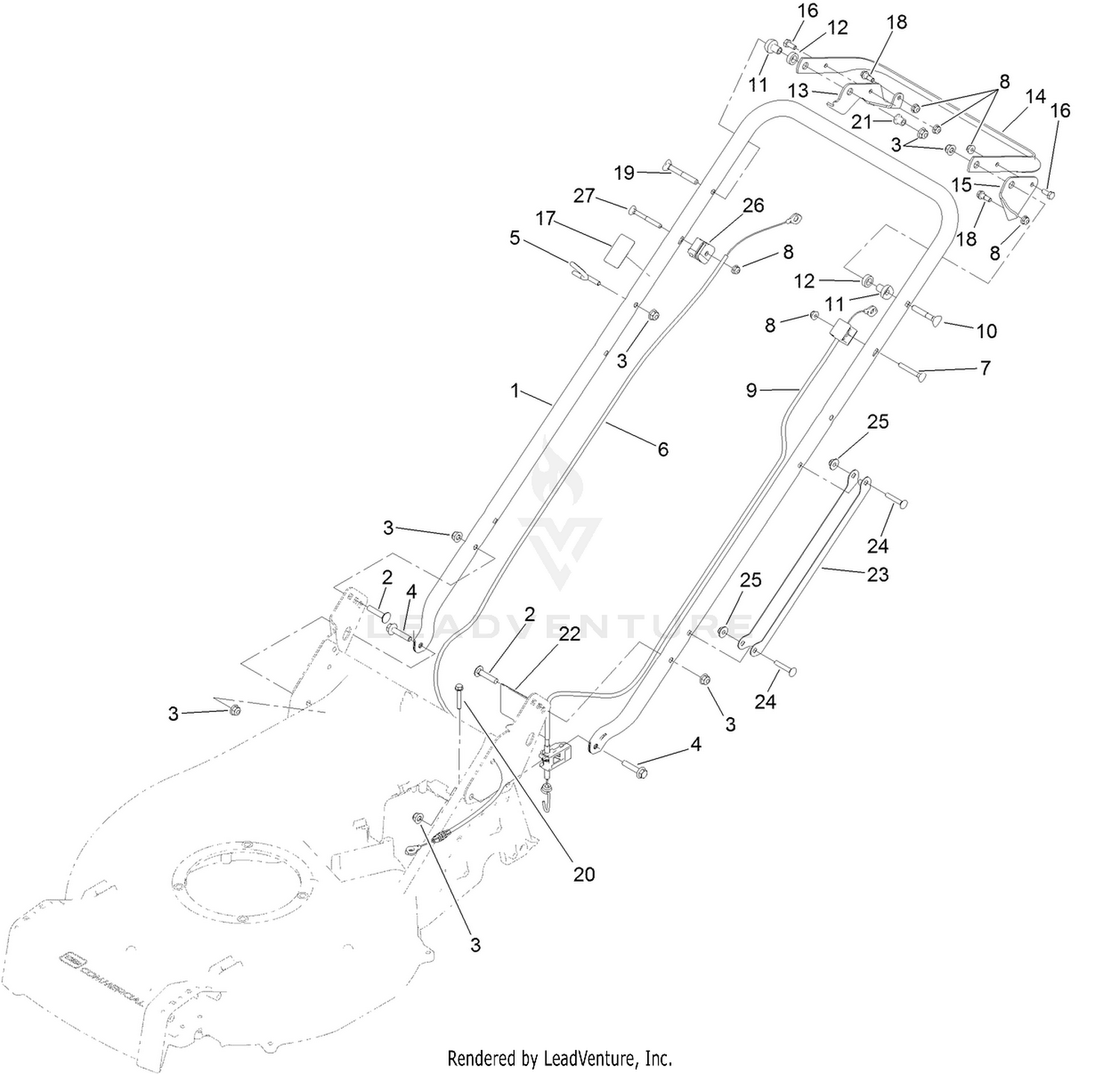

Handle and Control Assembly
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 136-5861-03 | HANDLE Price: $71.48 |
| 2 | 3230-4 | BOLT-CARR Price: $0.47 |
| 3 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 4 | 115-1794 | SCREW-HHF Price: $1.73 |
| 5 | 116-1056 | GUIDE,ROPE Price: $3.98 |
| 6 | 136-7000 | KIT,CABLE-BRAKE This part replaces 130-9704. Price: $23.82 |
| 7 | 95-4453 | SCREW Price: $3.09 |
| 8 | 104-7201 | NUT-HF Price: $0.69 |
| 9 | 130-9689 | CABLE-TRACTION Price: $35.72 |
| 10 | 17-9428 | SCREW-HANDLE Price: $1.02 |
| 11 | 49-1630 | SPACER-SUPPORT Price: $5.85 |
| 12 | 256-276 | SPACER-NYLON Price: $1.93 |
| 13 | 125-8398-03 | BRACKET-CONTROL, BRAKE Price: $10.39 |
| 14 | 125-8355-03 | BAR-CONTROL, ZONE START Price: $20.84 |
| 15 | 125-1068-03 | LEVER-CONTROL, TRACTION Price: $6.42 |
| 16 | 321-3 | SCREW-HH Price: $0.28 |
| 17 | 125-8404 | DECAL-PRIMER Price: Call Us |
| 18 | 42-3560 | BOLT-SHOULDER Price: $4.85 |
| 19 | 125-8408 | SCREW-HANDLE Price: $1.45 |
| 20 | 94-2691 | SCREW-HWH Price: $1.02 |
| 21 | 133-8180 | SPACER Price: $5.06 |
| 22 | 130-6722 | DECAL-ADJUST SELF PROPEL DRIVE Price: $2.80 |
| 23 | 127-6897-03 | GUARD-CABLE, HANDLE Price: $5.91 |
| 24 | 108-0988 | SCREW-CARR Price: $0.61 |
| 25 | 114-3778 | NUT-HF Price: $0.90 |
| 26 | 133-8199 | ANCHOR-CABLE Price: $3.79 |
