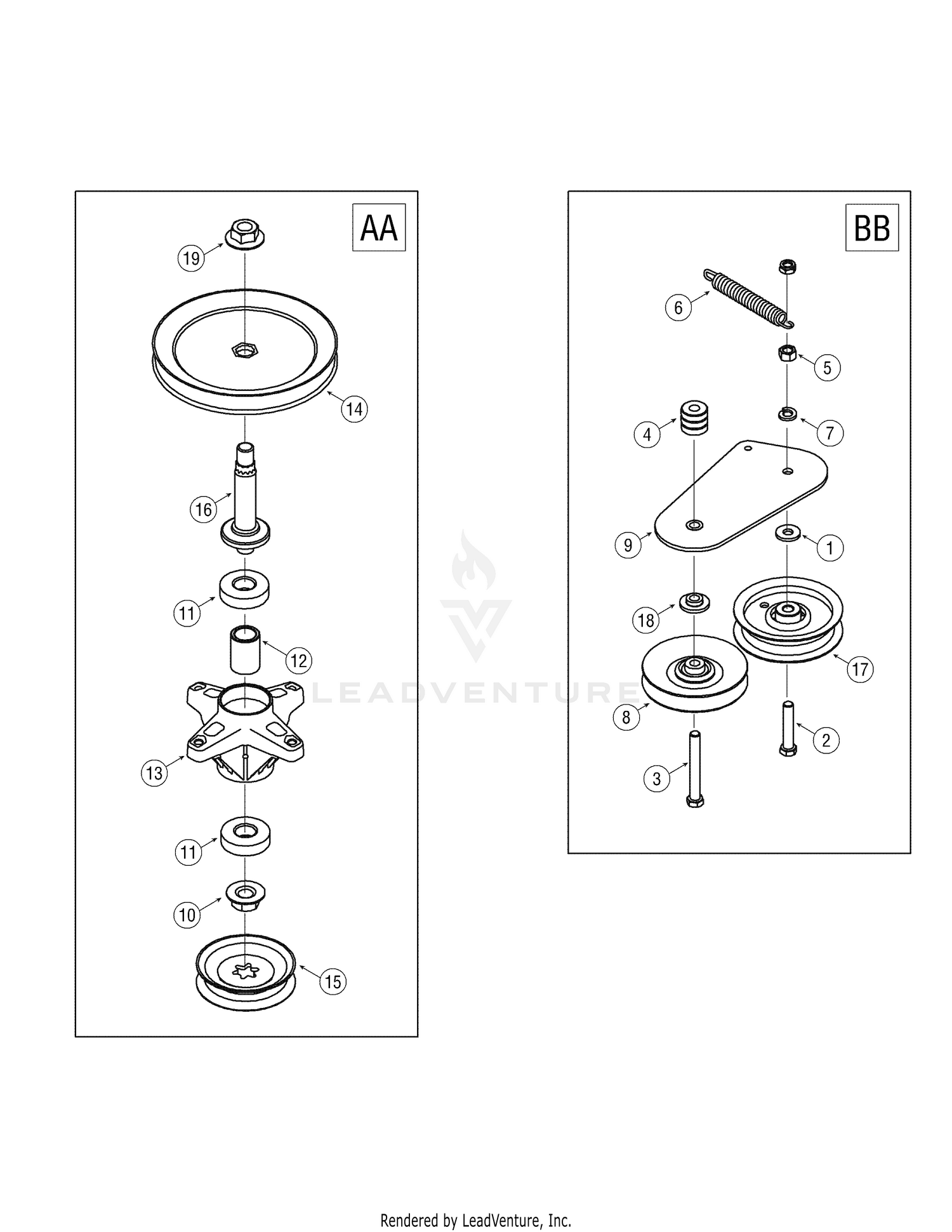

| Ref | Part Number | Description |
|---|
| 1 |
736-3072 |
Flat Washer, .38 x .93 x .11 Price: $4.11 |
| 2 |
710-0151 |
Hex Cap Screw, 3/8-24 x 2 Price: $6.55 |
| 3 |
710-0521 |
Hex Cap Screw, 3/8-16 x 3 Price: $4.54 |
| 4 |
711-0242 |
Spacer Price: $3.95 |
| 5 |
712-0241 |
Hex Nut, 3/8-24 Price: $3.86 |
| 6 |
732-0978 |
Extension Spring, .620 x 5.62 Not Available Price: |
| 7 |
736-0169 |
Lock Washer, 3/8 Price: $3.33 |
| 8 |
756-0487 |
Idler pulley, 4" Diameter Price: $45.43 |
| 9 |
784-5727-0637 |
Idler Pivot Arm This part replaces 784-5727. Price: $64.63 |
| 10 |
7120417 |
HEX FLANGE NUT Price: $6.50 |
| 11 |
741P0919B |
BALL BEARING This part replaces 741-0919. Price: $18.90 |
| 12 |
750-1096 |
Spacer Price: $7.34 |
| 13 |
918-0411A |
Spindle Assembly This part replaces 619-0044. Price: $110.39 |
| 14 |
756-0999 |
Deck Pulley 7" Price: $50.64 |
| 15 |
756-1173 |
Pulley 3.75" Price: $32.19 |
| 16 |
738-0976 |
Spindle Shaft Price: $45.03 |
| 17 |
756-0627D |
Idler Pulley 3.50 dia. Price: $28.58 |
| 18 |
938-0347 |
Spacer-Shld This part replaces 738-0347. Price: $8.93 |
