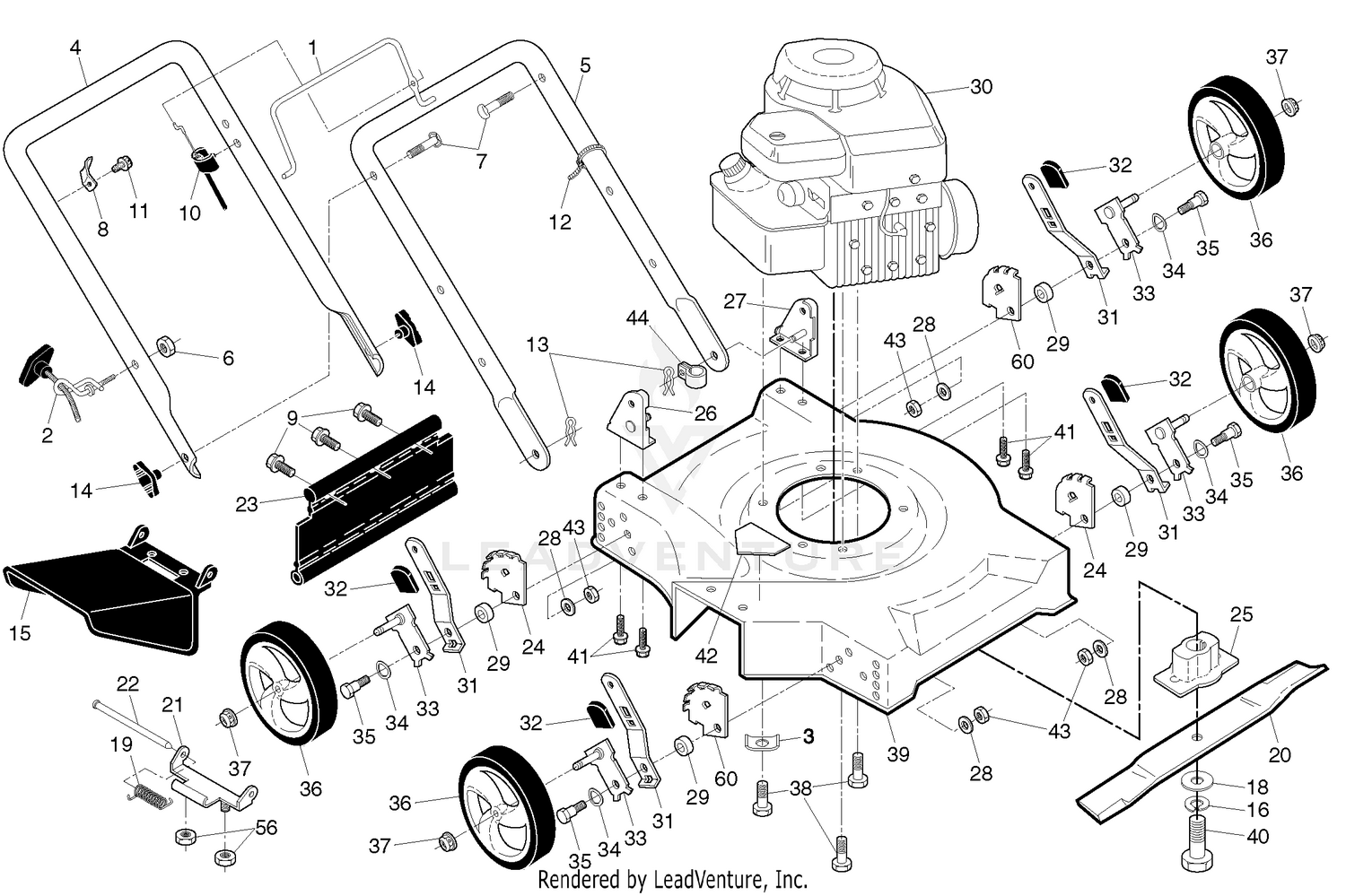

| Ref | Part Number | Description |
|---|
| 1 |
194176X428 |
Control Bar Price: Call Us |
| 1 |
99-5608-03 |
SPRING-TORSION, RH Price: $35.46 |
| 2 |
194788 |
Rope Guide Price: Call Us |
| 2 |
99-5609-03 |
SPRING-TORSION, LH Price: $35.46 |
| 3 |
82-6840 |
SPACER Price: $3.31 |
| 3 |
851201X004 |
Engine Washer Price: Call Us |
| 4 |
194180X479 |
Upper Handle Price: Call Us |
| 4 |
3256-35 |
WASHER-FLAT Price: $0.68 |
| 5 |
151590X479 |
Lower Handle Price: Call Us |
| 5 |
322-7 |
SCREW-HH Price: $0.89 |
| 6 |
132004 |
Nut, Hex Price: Call Us |
| 6 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 7 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 7 |
191574 |
Handle Bolt 5/16-18 x 1-3/4 Price: Call Us |
| 8 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 8 |
429930X004 |
Up-Stop Bracket Price: Call Us |
| 9 |
189241 |
Hex Washer Head Screw #10-24 x 1/2 Price: Call Us |
| 9 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 10 |
162778 |
Engine Zone Control Cable Price: Call Us |
| 10 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 11 |
750634 |
Screw Price: Call Us |
| 11 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 12 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 12 |
664-26 |
Wire Tie Price: Call Us |
| 13 |
51793 |
Hairpin Cotter Price: Call Us |
| 13 |
99-5610 |
PIN Price: $40.16 |
| 14 |
189713X428 |
Knob, Handle Price: Call Us |
| 14 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 15 |
428278X428 |
Discharge Guard Price: Call Us |
| 15 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 16 |
850263 |
Helical Lock Washer 3/8 Price: Call Us |
| 16 |
98-1880-03 |
KNUCKLE-PIVOT Price: $350.23 |
| 17 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 18 |
851074 |
Hardened Washer Price: Call Us |
| 18 |
98-7993 |
SCREW-HHF Price: $3.05 |
| 19 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 19 |
411832 |
Torsion Spring Price: Call Us |
| 20 |
145106 |
Blade, 20" Price: Call Us |
| 21 |
106-9004 |
BUMPER This part replaces 99-5605. Price: $6.35 |
| 21 |
88602 |
Hinge Deflector Price: Call Us |
| 22 |
150215 |
Hinge Rod Price: Call Us |
| 22 |
98-7974 |
WASHER-THRUST Price: $37.96 |
| 23 |
189240 |
Rear Deflector Price: Call Us |
| 23 |
99-6903-03 |
NO. 3 LIFT ARM ASM Price: $966.43 |
| 24 |
407499X005 |
Wheel Adjusting Bracket, RH Rear / LH Front Price: Call Us |
| 24 |
99-6902-03 |
NO. 2 LIFT ARM ASM Price: $867.02 |
| 25 |
850977 |
Blade Adapter Price: Call Us |
| 26 |
170345X479 |
Handle Bracket Assembly, RH Price: Call Us |
| 27 |
170346X479 |
Handle Bracket Assembly, LH Price: Call Us |
| 28 |
61537 |
Washer, Flat Price: Call Us |
| 29 |
401629 |
Spacer Price: Call Us |
| 31 |
401621X004 |
Selector Spring Price: Call Us |
| 32 |
87877 |
Selector Knob Price: Call Us |
| 33 |
401179X004 |
Axle Arm Assembly Price: Call Us |
| 34 |
401630 |
Belleville Washer Price: Call Us |
| 35 |
401638 |
Shoulder Bolt Price: Call Us |
| 36 |
193850X471 |
Wheel and Tire Assembly Price: Call Us |
| 37 |
409148 |
Nut, Hex Price: Call Us |
| 38 |
150406 |
Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 Price: Call Us |
| 39 |
414784 |
Lawn Mower Housing Price: Call Us |
| 40 |
851084 |
Hex Head Screw 3/8-24 x 1-3/8 Grade 8 Price: Call Us |
| 41 |
149741 |
Thread Cutting Screw 5/16-18 x 3/4 Price: Call Us |
| 42 |
404763 |
Danger Decal Price: Call Us |
| 43 |
73930500 |
Locknut, Hex 5/16-18 Price: Call Us |
| 44 |
197991 |
Clip, Cable Price: Call Us |
| 56 |
73800400 |
Locknut, Hex 1/4-20 Price: Call Us |
| 60 |
407500X005 |
Wheel Adjusting Bracket, LH Rear / RH Front Price: Call Us |
