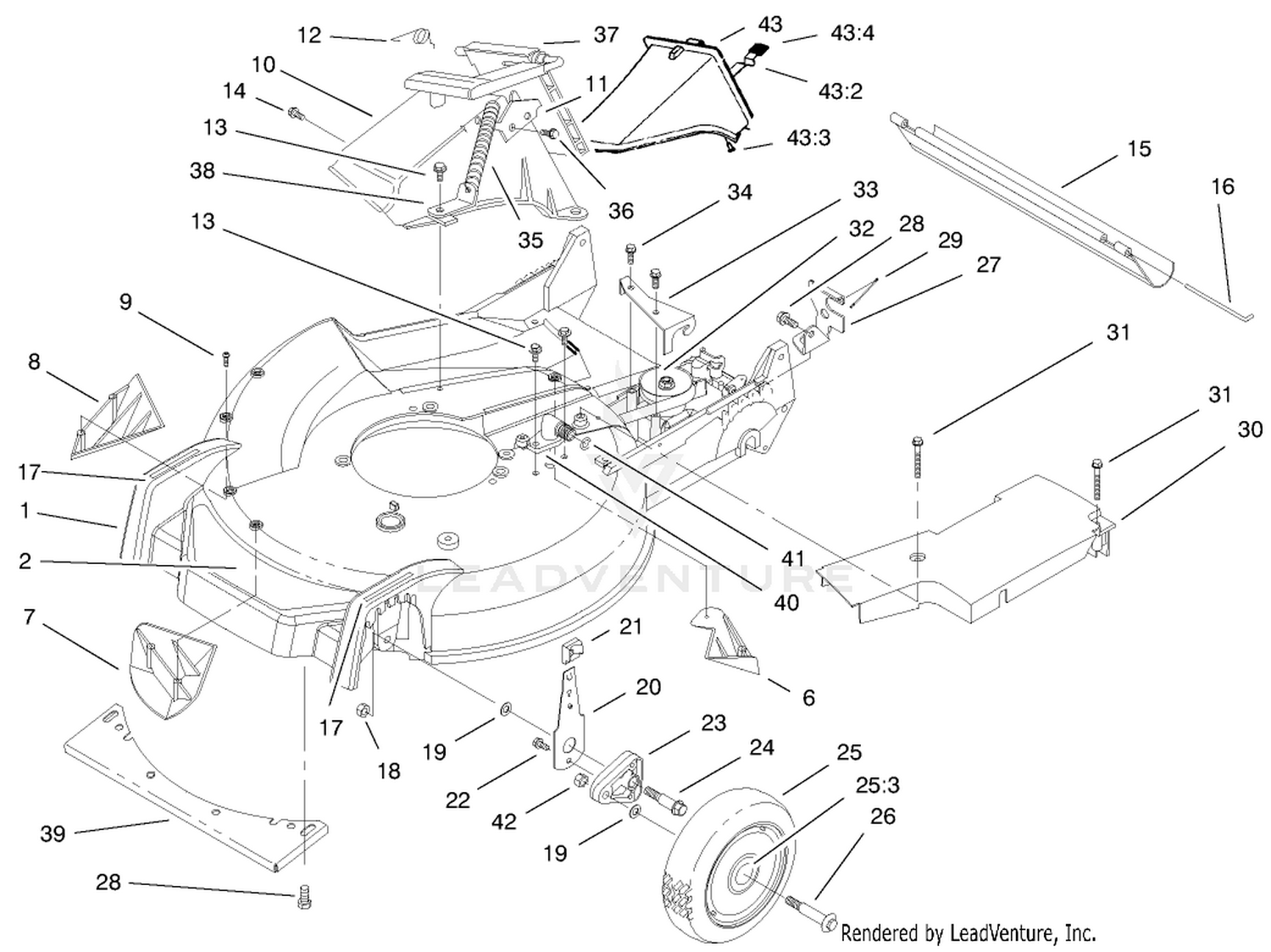

| Ref | Part Number | Description |
|---|
| 1 |
95-5615 |
DISCONTINUED Price: Call Us |
| 2 |
94-5407 |
DISCONTINUED Price: Call Us |
| 6 |
92-1750 |
KICKER-REAR Price: $12.52 |
| 7 |
92-1720 |
KICKER-FRONT Price: $12.91 |
| 8 |
92-1730 |
KICKER-RH Price: $12.91 |
| 9 |
32144-111 |
SCREW-PPH Price: $0.66 |
| 10 |
82-9151 |
TUNNEL-DISCHARGE Price: $109.15 |
| 11 |
93-3154 |
LATCH-PLATE Price: $4.89 |
| 12 |
80-3770 |
RETAINER-DOOR Price: $1.88 |
| 13 |
46-6811 |
SCREW-HWH Price: $3.09 |
| 14 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 15 |
112-9989 |
SHIELD-TRAILING This part replaces 44-0580. Price: $18.32 |
| 16 |
33-3208 |
ROD-SHIELD Price: $9.44 |
| 18 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 19 |
40-1940 |
WASHER Price: $1.59 |
| 20 |
66-0541 |
FRONT SPRING ARM ASM Price: $10.37 |
| 21 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 22 |
32144-85 |
SCREW-HWH Price: $1.59 |
| 23 |
66-0580 |
ARM-PIVOT, FRONT Price: $11.73 |
| 24 |
66-0560 |
BOLT-SHOULDER Price: $4.19 |
| 25 |
92-9592 |
WHEEL ASM Price: $35.32 |
| 26 |
92-1057 |
BOLT-SHOULDER Price: $3.05 |
| 27 |
82-5680-03 |
BRACKET-TRACTION, ADJ. This part replaces 82-5680. Price: $7.85 |
| 28 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 29 |
46-7030 |
RETAINER-CABLE Price: $3.83 |
| 30 |
98-1502 |
DISCONTINUED Price: Call Us |
| 31 |
37-7260 |
SCREW-HHFTF Price: $3.64 |
| 32 |
62-6673 |
GEARCASE ASM Price: $500.04 |
| 33 |
62-4320-03 |
BRACKET-GUIDE, BELT This part replaces 62-4320. Price: $17.69 |
| 34 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 35 |
76-4660 |
SPRING-DOOR Price: $10.99 |
| 36 |
46-8090 |
SCREW-PLASTITE Price: $1.84 |
| 37 |
93-7351 |
DISCHARGE DOOR ASM Price: $74.60 |
| 38 |
71-9350 |
BRACKET-SPRING Price: $9.34 |
| 39 |
46-5400-03 |
SHIELD This part replaces 46-5400. Price: $37.33 |
| 40 |
133-9289 |
FITTING-WASHOUT This part replaces 95-2747. Price: $3.86 |
| 41 |
46-6290 |
O-RING Price: $2.59 |
| 42 |
603773 |
LOCKNUT Price: $2.09 |
| 43 |
77-0502 |
Plug Assembly (Incl. Ref. #24, 25, 28) Price: $81.96 |
