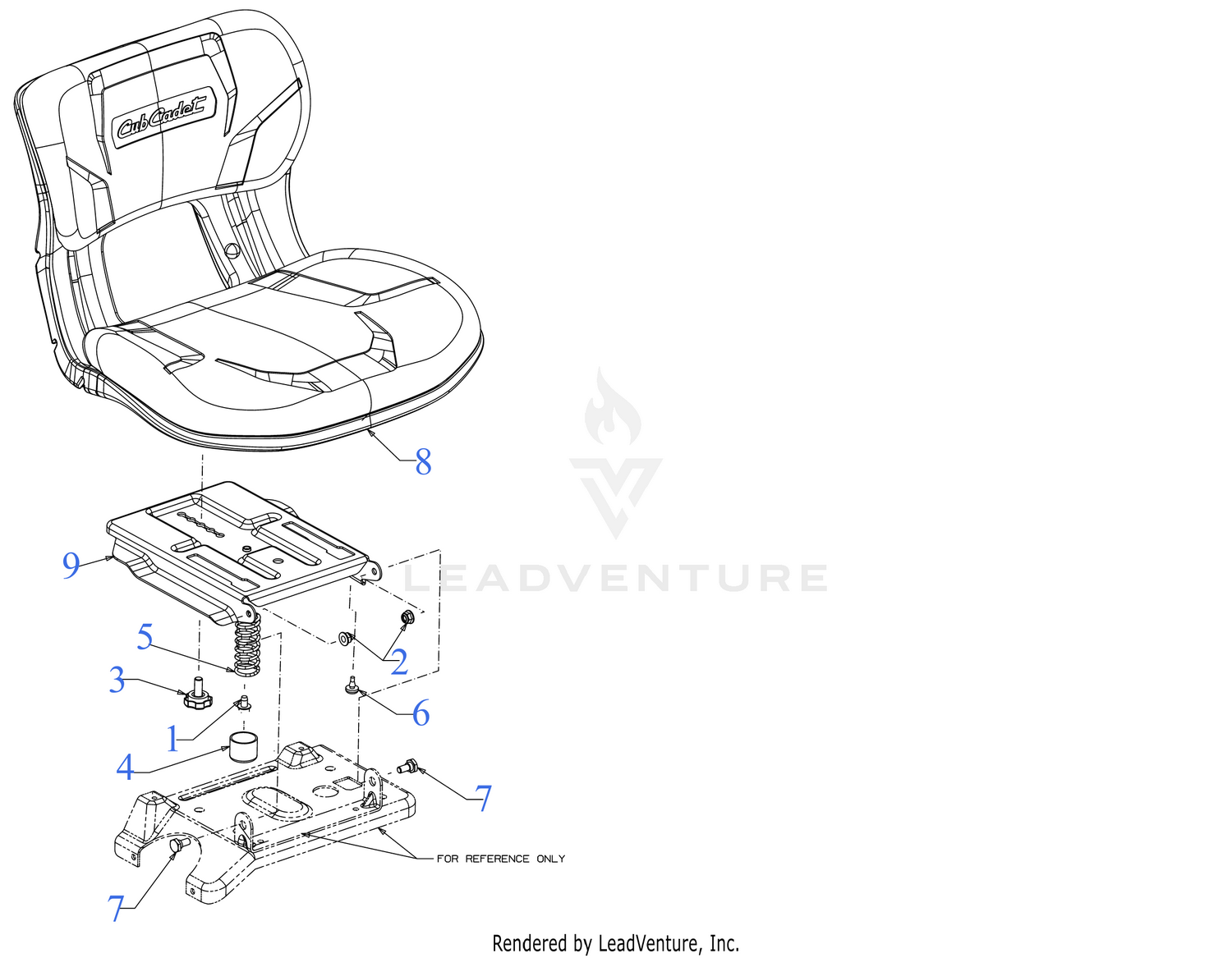

Seat
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 710-0607 | SCREW 5/16-18 x .500 Price: $6.06 |
| 2 | 712-04063 | FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 3 | 720-04009A | SEAT ADJUSTMENT KNOB Price: $14.52 |
| 4 | 720-05005 | SEAT SPRING CAP Price: $2.77 |
| 5 | 732-04905 | SEAT SPRING Price: $3.49 |
| 6 | 735-0199A | Rubber Bumper This part replaces 935-0199A. Price: $6.89 |
| 7 | 738-0140 | Screw, Shoulder, .437 Dia X .180 This part replaces 938-0140. Price: $4.93 |
| 8 | 757-05035A | ARM REST KIT Price: $125.24 |
| 8 | 757-05101 | HIGH SEAT (ARM OPT) Price: $369.02 |
