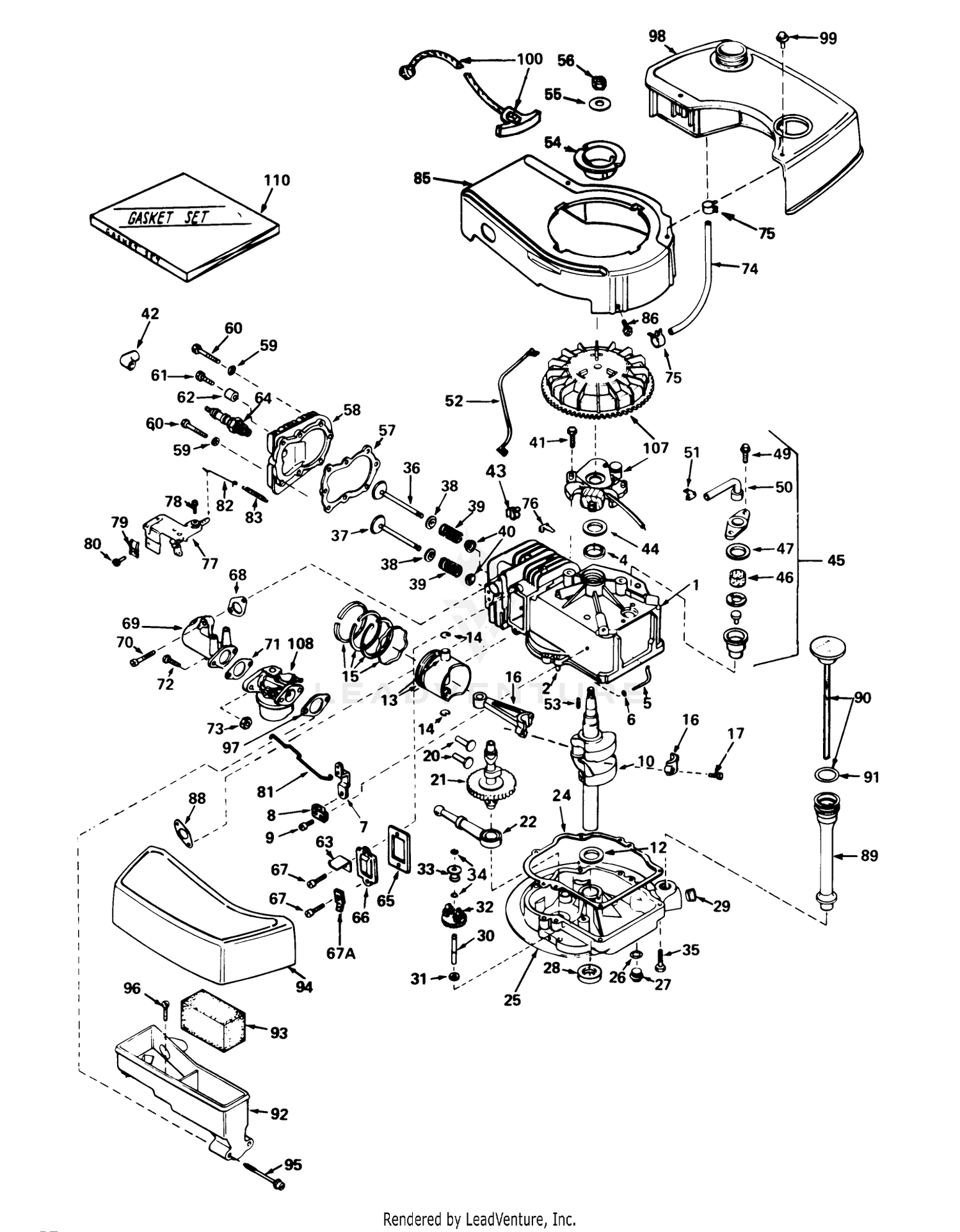

| Ref | Part Number | Description |
|---|
| 1 |
33899 |
Cylinder Assembly (Incl. Nos. 2, 4 87) Price: Call Us |
| 2 |
26727 |
Pin-Dowel Price: Call Us |
| 4 |
32600 |
Seal-Oil Price: Call Us |
| 5 |
30589 |
Rod, Governor (Incl. No. 6) Price: Call Us |
| 6 |
28277 |
Washer-Flat Price: Call Us |
| 7 |
32651 |
Governor Lever Price: Call Us |
| 8 |
31335 |
Clamp-Lever, Governor Price: Call Us |
| 9 |
650548 |
Screw Price: Call Us |
| 10 |
34085 |
Crankshaft Price: Call Us |
| 12 |
32323 |
Washer-Thrust Price: Call Us |
| 13 |
33562 |
Piston Pin Assembly (Incl. 2 of #14) (Standard) Price: Call Us |
| 13 |
33563 |
Piston Pin Assembly (Incl. 2 of #14) (.010 Oversize) Price: Call Us |
| 13 |
33564 |
Piston Pin Assembly (Incl. 2 of #14) (.020 Oversize) Price: Call Us |
| 14 |
20381 |
Ring-Retaining, Piston Pin Price: Call Us |
| 15 |
33567 |
Ring Set-Piston Std. Price: Call Us |
| 15 |
33568 |
Ring Set-Piston .010 oversize Price: Call Us |
| 15 |
33569 |
Ring Set-Piston .020 oversize Price: Call Us |
| 16 |
32875 |
Rod Assembly, Connecting (Incl. Ref. #18 19) Price: Call Us |
| 17 |
32610A |
Bolt-Rod, Connecting Price: Call Us |
| 20 |
27241 |
Lifter-Valve Price: Call Us |
| 21 |
33553 |
Camshaft(Mech.Comp. Release) Price: Call Us |
| 22 |
29914 |
Oil Pump ASM Price: Call Us |
| 25 |
33901 |
Flange Assembly, Mounting (Incl. #27, 28, 29 30) Price: Call Us |
| 27 |
27244 |
Plug Oil Drain Price: Call Us |
| 28 |
27897 |
Seal-Oil Price: Call Us |
| 29 |
33885 |
Plug Oil Drain Price: Call Us |
| 30 |
30574 |
Shaft-Governor Price: Call Us |
| 31 |
30590A |
Washer-Flat Price: Call Us |
| 32 |
30591 |
Gear Assy., Governor (Incl. No.132) Price: Call Us |
| 33 |
30588A |
Spool-Governor Price: Call Us |
| 34 |
29193 |
Ring-Retaining Price: Call Us |
| 35 |
650488 |
Screw (1/4-20 x 1-1/4) Price: Call Us |
| 36 |
29314A |
Valve, Intake (Std.) (Incl. Ref. #7, 8 9) Price: Call Us |
| 36 |
29315B |
Valve, Intake (1/32"oversize) (Incl. Ref. #7, 8 9) Price: Call Us |
| 37 |
29313B |
Valve, Exhaust (Std.) (Incl. Ref. #7, 8 9) Price: Call Us |
| 37 |
29315B |
Valve, Intake (1/32"oversize) (Incl. Ref. #7, 8 9) Price: Call Us |
| 38 |
31671 |
Cap-Upper Valve Spring Price: Call Us |
| 39 |
31672 |
Spring-Valve Price: Call Us |
| 40 |
31673 |
Cap-Valve, Spring Price: Call Us |
| 41 |
650489 |
Screw Price: Call Us |
| 42 |
610118 |
Cover-Spark Plug Price: Call Us |
| 43 |
33685 |
Clip, Wire Price: Call Us |
| 44 |
33876 |
Gasket Stator Price: Call Us |
| 45 |
34214 |
Breather Assy. (Incl. Ref. #46, 47, 49, 50 51 ) Price: Call Us |
| 46 |
33734 |
Element-Breather Price: Call Us |
| 49 |
650768 |
Screw, Hex Hd. w/Conical Price: Call Us |
| 50 |
33886 |
Tube, Breaker Price: Call Us |
| 51 |
33887 |
Clip, Breather Price: Call Us |
| 52 |
33888 |
Wire, Ground Price: Call Us |
| 53 |
610962 |
Key, Flywheel Price: Call Us |
| 54 |
32723 |
Pulley Starter Price: Call Us |
| 55 |
650763 |
Washer-Spring Price: Call Us |
| 56 |
650607 |
Hex Nut Price: Call Us |
| 58 |
33016 |
Head Cylinder Price: Call Us |
| 59 |
26073 |
Washer Price: Call Us |
| 60 |
6021 |
Screw Price: Call Us |
| 61 |
650697 |
Screw Hex Hd. Cap Price: Call Us |
| 62 |
33892 |
Space Price: Call Us |
| 63 |
30593 |
Retainer Clip Price: Call Us |
| 64 |
34251 |
Plug, Spark (Champion RCJ-8) Price: Call Us |
| 66 |
32755 |
Cover-Valve Price: Call Us |
| 67 |
650128 |
Screw Price: Call Us |
| 67A |
33932 |
Terminal Price: Call Us |
| 69 |
33004 |
Pipe, Intake Price: Call Us |
| 70 |
650451 |
Screw (1/4-20 x 1) Price: Call Us |
| 72 |
6202 |
Screw Price: Call Us |
| 73 |
29752 |
Nut and Lock Washer (1/4-28) Price: Call Us |
| 74 |
30705 |
Line-Fuel Price: Call Us |
| 75 |
26460 |
Clamp-Line, Fuel Price: Call Us |
| 76 |
29443 |
Clip-Wire Price: Call Us |
| 77 |
33889A |
Control Assy., Speed (Incl. Nos, 76, 78 89) Price: Call Us |
| 78 |
650783 |
Screw (10-24 x 3/4) Price: Call Us |
| 79 |
27793 |
Conduit Price: Call Us |
| 80 |
28942 |
Screw (10-32 x 3/8) Price: Call Us |
| 81 |
33133 |
Link Governor Price: Call Us |
| 82 |
33295 |
Link Governor Spring Price: Call Us |
| 83 |
33890 |
Spring Governor Price: Call Us |
| 86 |
650497 |
Screw Price: Call Us |
| 89 |
33893A |
Tube Fill Price: Call Us |
| 90 |
33894A |
Dipstick, Oil (Incl. Ref. #101)(Twist Lock) Price: Call Us |
| 91 |
33590 |
O-Ring Price: Call Us |
| 92 |
33895 |
Body Air Cleaner Price: Call Us |
| 93 |
33896 |
Filer, Air Price: Call Us |
| 94 |
33897 |
Cove, Air Cleaner Price: Call Us |
| 95 |
650762 |
Screw Fil Hd. Price: Call Us |
| 96 |
650784 |
Screw, Hex Hd. Price: Call Us |
| 98 |
33904 |
Tank Fuel Price: Call Us |
| 99 |
28763 |
Screw (10-32 x 35/64) Price: Call Us |
| 100 |
590343 |
Rope Assy., Starter Price: Call Us |
| 108 |
631831 |
Carburetor (Incl. No. 71) Price: Call Us |
