Home / OPE / Greens Roller / 44905, GreensPro 1200 Greens Roller, 2012 (SN 312000001-312999999) / Transmission Control Assembly

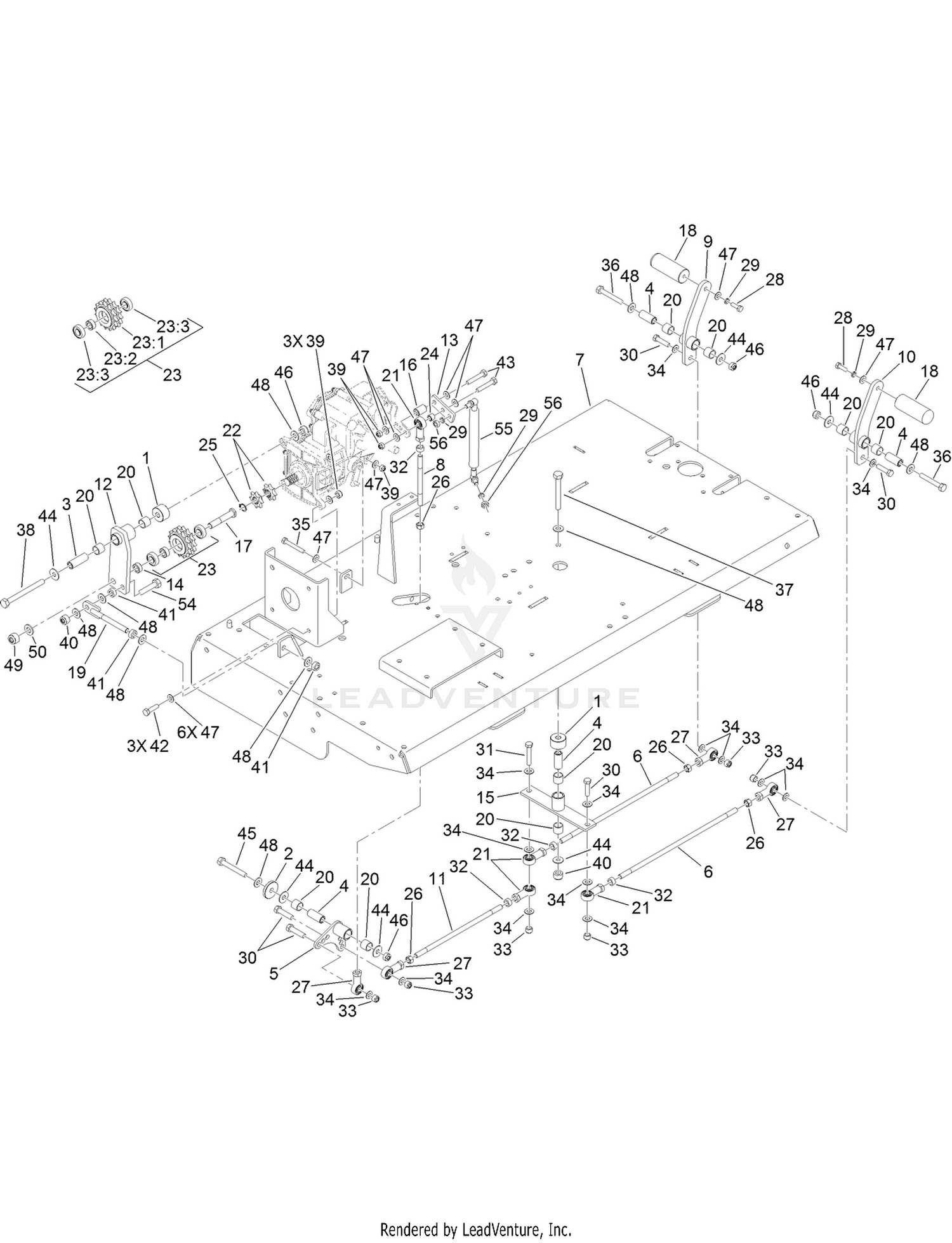

Transmission Control Assembly

Transmission Control Assembly

Parts (51)

RefPart NumberDescription
1 111-5672 SPACER Price: $8.88
2 111-5674 COLLAR-FIXING Price: $7.65
3 127-7969 BUSHING-PIVOT This part replaces 111-5675. Price: $13.76
4 111-5676 DISCONTINUED Price: Call Us
5 127-7955 LEVER QUADRANT KIT This part replaces 111-5677. Price: $57.52
6 111-5682 ROD-LINKAGE Price: $22.58
7 111-5687-01 CHASSIS-ROLLER Price: $559.79
8 111-5690 ARM-LINKAGE Price: $13.03
9 127-7953 LEFT HAND MOTION KIT This part replaces 111-5693. Price: $57.77
10 127-7952 RIGHT HAND MOTION KIT This part replaces 111-5694. Price: $57.77
11 111-5697 ROD-LINKAGE, LONG Price: $17.63
12 127-7973 IDLER ARM ASM KIT This part replaces 111-5709. Price: $59.32
13 111-5711 PLATE-DAMPER Price: $4.32
14 111-5712 BUSHING-IDLER, GEAR Price: $8.88
15 127-7951 PEDAL ROD PIVOT KIT This part replaces 111-5721. Price: $58.16
16 111-5722 SPACER-DAMPER Price: $6.61
17 111-5723 BOLT-SPROCKET, IDLER Price: $18.08
18 111-5727 PEDAL Price: $21.04
19 111-5736 TENSIONING ROD ASM Price: $38.23
20 127-7973 IDLER ARM ASM KIT This part replaces 111-5746. Price: $59.32
21 111-5748 JOINT-BALL Price: $24.51
22 127-5870 SPROCKET-8 TOOTH This part replaces 111-5760. Price: $37.97
23 111-5768 IDLER SPROCKET ASM Price: $70.86
24 111-5792 BUSHING Price: $6.72
25 111-6009 CIRCLIP-EXT Price: $6.90
26 111-5855 NUT-HEX, LH Price: $1.27
27 111-5959 JOINT-BALL Price: $26.25
28 03162 STEEL BOLT Price: $1.39
29 03469 WASHER M8 SC SPRING Price: $1.40
31 09121 BOLT UNF 3/8 X 2 S QUAL Price: $1.40
32 09213 NUT Price: Call Us
33 09216 NUT-HEX, NI Price: $1.40
34 09271 WASHER 3/8 X 3/4 X 18G PLAIN Price: $1.40
35 09371 BOLT M8 X 60 Price: $1.34
36 09399 BOLT Price: $1.40
37 09404 BOLT Price: $1.42
38 09405 BOLT M10*110*1.5 PITCH Price: $1.54
39 09441 NUT M8 NYL INSERT T TYPE Price: $1.39
40 09447 NUT M10 X 1.5 NYL INS Price: $1.40
41 09449 NUT M10 PLAIN Price: $1.34
42 09369 SETSCREW M8 X 30 Price: $1.40
43 09654 BOLT M8 X 45 HX.HD GR.8.8 Z/P Price: $1.40
44 HY03355 WASHER 3/8 X 7/8 X 15G PLATED Price: $1.49
45 ZBH1J075U HEX HD.BOLT M10*75 Price: $1.31
46 ZNN1J000U HEX.NUT NYLOC M10 Price: $1.42
47 09475 WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40
48 ZWQ1J000U PLAIN HEAVY WASHER M10 Price: $1.38
49 3296-7 NUT-LOCK This part replaces HY09221. Price: $0.34
50 HY09485 WASHER M12 PLAIN Price: $1.40
54 ZDH1J045U HEX.HD.SET SCW.M10 * 45LG Price: $1.31
55 131-6403 DAMPER KIT This part replaces 111-5770. Price: $151.30
