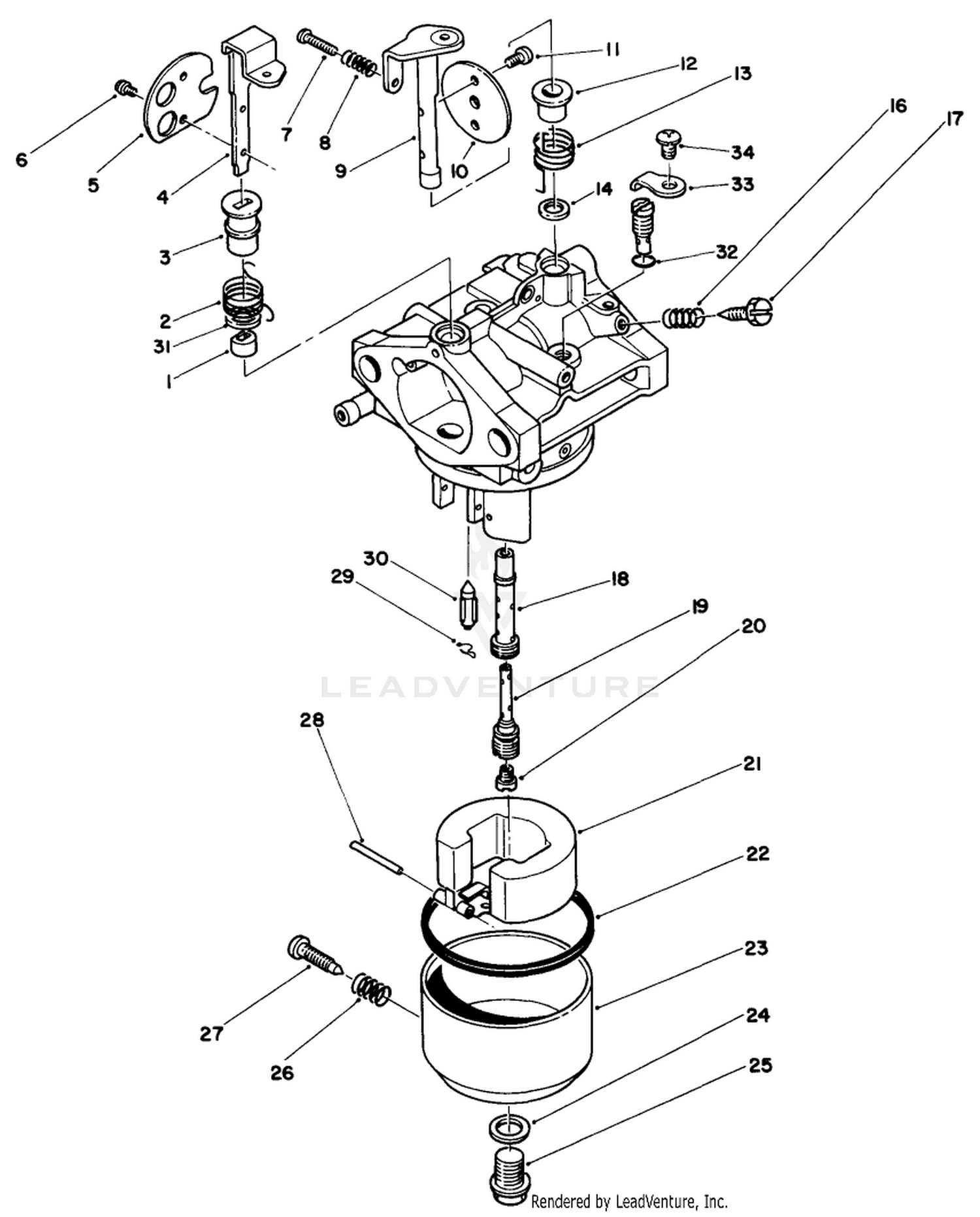

Carburetor Assembly
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 314598-6138A | Ring Price: Call Us |
| 2 | 92144-2160 | Spring Price: Call Us |
| 3 | 92143-2142 | Ring Price: Call Us |
| 4 | 16041-2010 | Shaft-Choke Price: Call Us |
| 5 | 16126-2105 | Valve-Choke Price: Call Us |
| 6 | 314572-6137A | Screw Price: Call Us |
| 7 | 92009-2079 | Screw Price: Call Us |
| 8 | 313650-6108-00 | Spring Price: Call Us |
| 9 | 16041-2009 | Shaft-Throttle Price: Call Us |
| 10 | 16025-2114 | Valve-Throttle Price: Call Us |
| 11 | 316550-6137A | Screw Price: Call Us |
| 12 | 92027-2025 | Collar Price: Call Us |
| 13 | 92081-2077 | Spring Price: Call Us |
| 14 | 316626-6206A | Seal Price: Call Us |
| 15 | 92064-2062 | Jet Price: Call Us |
| 16 | 312750-6116-00 | Spring Price: Call Us |
| 17 | 16014-2055 | Screw Price: Call Us |
| 18 | 49121-2077 | Nozzle Price: Call Us |
| 19 | 49123-2058 | Pipe-Bleed Price: Call Us |
| 20 | 92063-2010 | Jet Price: Call Us |
| 21 | 16031-2066 | Float Price: Call Us |
| 22 | 313650-6128-00 | Gasket Price: Call Us |
| 23 | 16020-2094 | Chamber-Float (Incl. Ref. #26 27) Price: Call Us |
| 24 | 318190-6159-00 | Washer Price: Call Us |
| 25 | 314486-6143A | Bolt Price: Call Us |
| 26 | 313122-6116-00 | Spring Price: Call Us |
| 27 | 315470-6133A | Screw Price: Call Us |
| 28 | 314499-6127A | Pin Price: Call Us |
| 29 | 315721-6134A | Clip Price: Call Us |
| 30 | 16030-2021 | Valve-Needle Price: Call Us |
| 31 | 92093-2069 | Seal Price: Call Us |
| 32 | 16038-024 | Gasket Price: Call Us |
| 33 | 13183-2252 | Plate Price: Call Us |
