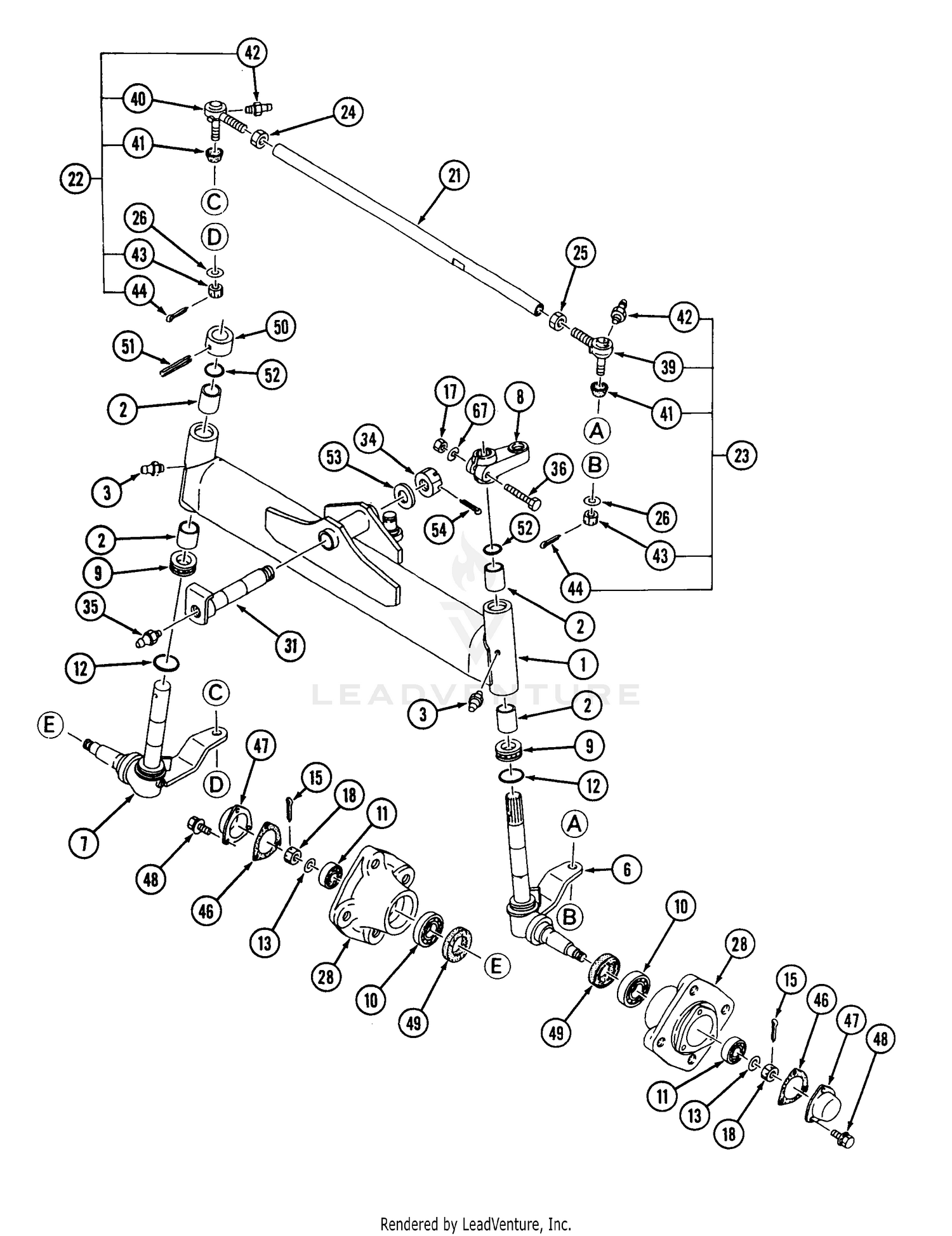

Front Axle - 2WD
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 22-8330 | PLUG Price: $64.59 |
| 1 | 587306701 | IGNITION MODULE 560/562 This part replaces 581723401. Price: $59.99 |
| 1 | MA-19632053AG0 | CENTER AXLE Not Available Price: |
| 2 | 237-42 | O-RING Price: $2.78 |
| 2 | MA-67541-00800 | BUSHING Not Available Price: |
| 3 | 22-8340 | SPRING Price: $19.09 |
| 3 | 503200220 | SCREW Price: $2.99 |
| 3 | MA-A6503100300 | NIPPLE-GREASE Not Available Price: |
| 4 | 22-8350 | BALL Price: $12.28 |
| 5 | 22-8370 | SEAT-VALVE Price: $88.05 |
| 6 | 22-8360 | PIN Price: $43.02 |
| 6 | 503220401 | NUT W/ WASHER Price: $3.99 |
| 6 | MA-19632055AG0 | KNUCKLE (LH) Not Available Price: |
| 7 | 121-9070 | VALVE ASM This part replaces 43-1730. Price: $458.43 |
| 7 | MA-19632057AG0 | KNUCKLE R.H. Not Available Price: |
| 8 | 22-8420 | SPOOL Price: $437.22 |
| 8 | 503230042 | WASHER Price: $3.99 |
| 8 | MA-19632058AG0 | ARM-KNUCKLE Not Available Price: |
| 9 | 22-8500 | O-RING Price: $18.87 |
| 9 | 501673501 | SPRING Price: $3.99 |
| 9 | MA-05642-00400 | BEARING THRUST NSK T26 Not Available Price: |
| 10 | 22-8380 | RETAINER Price: $17.86 |
| 10 | 501673201 | PAWL Price: $6.99 |
| 10 | MA-07500062050 | BEARING NSK6205 Not Available Price: |
| 11 | 22-8410 | SPRING Price: $17.61 |
| 11 | 501819901 | SCREW M5X14 Price: $2.99 |
| 11 | MA-07500063040 | BEARING NSK 6304 Not Available Price: |
| 12 | 22-8390 | RETAINER Price: $56.56 |
| 12 | MA-08301100380 | O-RING Not Available Price: |
| 13 | 22-8400 | SPACER Price: $42.41 |
| 13 | MA-03500151632 | WASHER Not Available This part replaces MA-03500051632. Price: |
| 14 | 22-8480 | RING-SNAP Price: $49.87 |
| 15 | MA-05200140032 | COTTER PIN Not Available Price: |
| 17 | MA-A3030110002 | NUT Not Available Price: |
| 18 | MA-A3130101601 | NUT Not Available Price: |
| 21 | MA-19632063AG0 | TUBE Not Available Price: |
| 24 | MA-67354-00301 | NUT (LH) THREAD M Not Available Price: |
| 25 | MA-67354-00201 | NUT (RH) THREAD M Not Available Price: |
| 26 | MA-13353166000 | WASHER Not Available Price: |
| 28 | MA-19832042AG0 | HUB FRONT WHEEL Not Available Price: |
| 31 | MA-19632067AG0 | PIN,CENTER Not Available Price: |
| 34 | MA-19632068000 | Nut Price: $14.38 |
| 35 | MA-A6503100300 | NIPPLE-GREASE Not Available Price: |
| 36 | MA-F1550110055 | BOLT,W/SPRING WASH Not Available Price: |
| 39 | None | Order Ref. No. 23 |
| 40 | None | Order Ref. No. 22 |
| 46 | MA-69541-06400 | GASKET Not Available Price: |
| 47 | MA-19832048AG0 | CAP Not Available Price: |
| 48 | MA-F1440106012 | BOLT,W/SPRING WASH Not Available Price: |
| 49 | MA-08401325211 | SEAL, OIL Not Available Price: |
| 50 | MA-19632069AG0 | BOSS Not Available Price: |
| 51 | MA-05500008045 | Pin, Spring Price: $2.10 |
| 52 | MA-08301100250 | O-RING Not Available Price: |
| 53 | MA-03500172450 | WASHER Not Available Price: |
| 54 | MA-05200150040 | COTTER PIN Not Available Price: |
