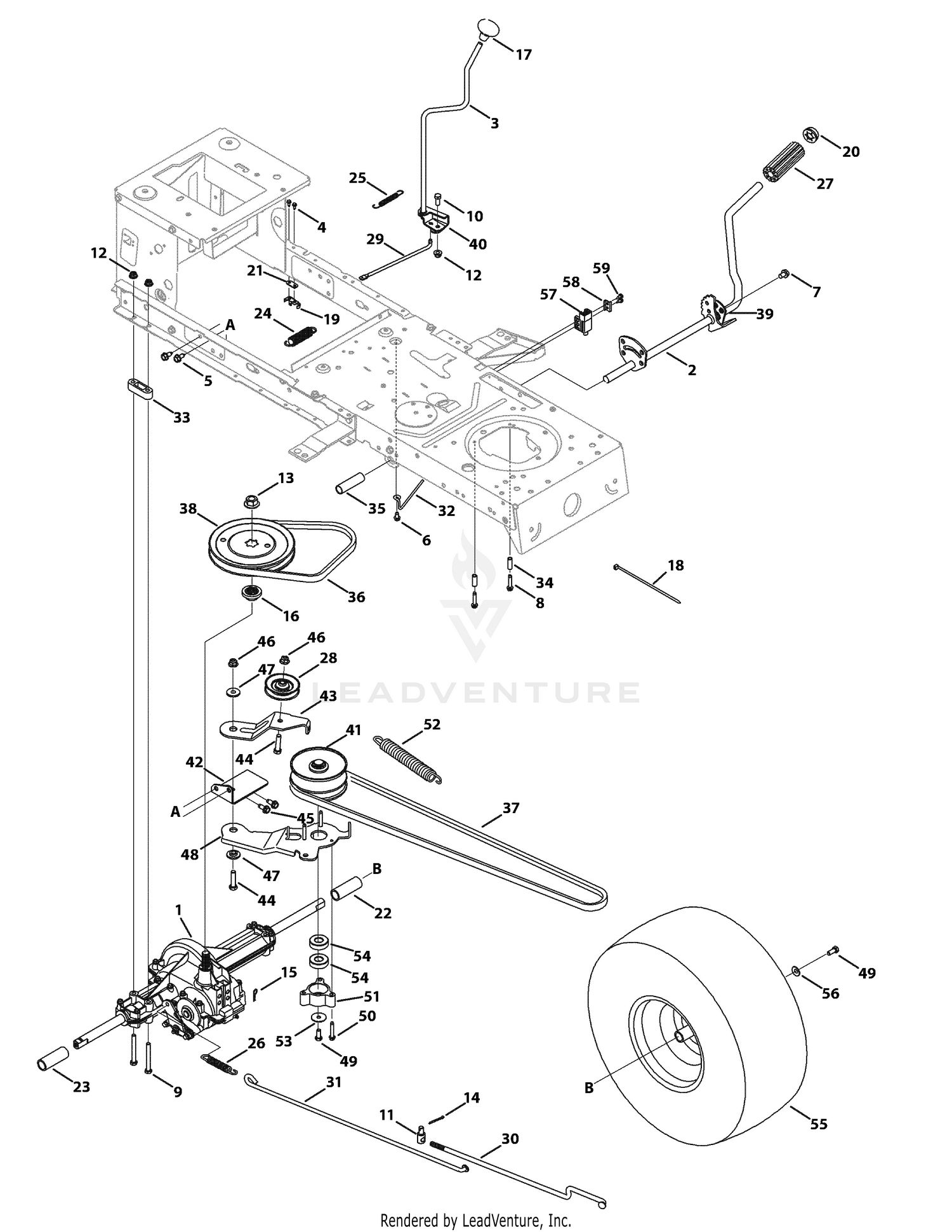

| Ref | Part Number | Description |
|---|
| 1 |
618P09815 |
TRANSAXLE This part replaces 918-04566. Price: $398.09 |
| 2 |
647-04034E-0637 |
PEDAL ASSEMBLY (POWDER BLACK) This part replaces 647-04034C-0637. Price: $75.77 |
| 3 |
647-04035 |
Shaft Lever Assembly Price: $33.15 |
| 4 |
710-0227 |
Screw, 8-18:0.500 Price: $3.90 |
| 5 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 6 |
710-0599 |
Screw, 1/4-20 x 0.500 Price: $3.86 |
| 7 |
710-0604A |
Screw, 5/16-18 x 0.625 Price: $3.96 |
| 8 |
710-0809 |
Screw, 1/4-20 x 1.250 Price: $6.37 |
| 9 |
710-0176 |
Hex Screw, 5/16-18 x 2.75 Price: $3.89 |
| 9 |
710-1266 |
Hex Screw, 5/16-18 x .625 Price: $8.66 |
| 10 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 11 |
911-04075A |
Ferrule, 3/8-24 X .375 DIA. Price: $9.87 |
| 12 |
712-04063 |
Flangelock Nut, 5/16-18 Price: $3.56 |
| 13 |
712-0700 |
Flange Nut, 9/16-18 Price: $10.12 |
| 14 |
714-0115 |
Pin, Cotter, 1/8 x 1.00 This part replaces 914-0115. Price: $3.48 |
| 15 |
914-0209 |
Cotter Pin INT- .125 DIA Price: $3.22 |
| 16 |
718-04407 |
Pulley Hub, 5/8 SPLINE Price: $11.11 |
| 17 |
720-04028 |
Shift Knob Price: $9.44 |
| 18 |
725-0157 |
Cable Tie Price: $3.46 |
| 19 |
725-1644 |
SAFETY SPRING SWITCH Price: $8.34 |
| 20 |
726-0214 |
Push Cap, 5/8 Price: $9.11 |
| 21 |
926-0320 |
Plate Insulator Nut Price: $6.01 |
| 22 |
731-04602 |
Sleeve, .758 x .821 x 3.3125 Price: $5.62 |
| 23 |
731-04604 |
Sleeve, .758 x .821 x 2.4375 Price: $5.78 |
| 24 |
732-04306 |
Spring Extension, .80 OD x 3.28 LG Price: $9.32 |
| 25 |
732-04488 |
Spring Extension, .38 OD x 3.25 LG Price: $5.32 |
| 26 |
732-0716D |
Spring Extension, .59 OD x 4.00 LG Price: $11.49 |
| 27 |
735-0239A |
FOOT PAD This part replaces 735-0239. Price: $10.76 |
| 28 |
756-04325 |
Idler Pulley Price: $22.60 |
| 29 |
747-04277 |
SHIFT ROD Not Available Price: |
| 30 |
747-04265 |
VARIABLE SPEED CONTROL ROD Not Available Price: |
| 31 |
747-04733A |
BRAKE ROD Not Available Price: |
| 32 |
747-04969 |
Belt Keeper Rod Price: $5.88 |
| 34 |
750-0566A |
Spacer, .260 x .375 x 1.030 LG Price: $9.17 |
| 35 |
750-0802 |
Spacer, .640 ID x .76 OD x 2.63 Price: $6.07 |
| 36 |
954-05040 |
Upper Drive Belt This part replaces 954-0241A. Price: $42.39 |
| 37 |
954-04001A |
V Belt, 5L:68.90:POLY Price: $26.27 |
| 38 |
956-04002 |
V Pulley:7.25 DIA SPUN Price: $24.33 |
| 39 |
783-04536B-0637 |
Pedal Support Bracket Price: $5.67 |
| 40 |
783-04595A |
Shaft Adjust Bracket Price: $9.09 |
| 41 |
656P05011 |
VARIABLE SPEED PULLEY (4.75 OD) This part replaces 956-04015A. Price: $90.80 |
| 42 |
783-04567B |
VARIABLE SPEED BRACKET This part replaces 683-04176A. Price: $7.61 |
| 43 |
753-05147 |
Idler Bracket Assembly Price: $28.74 |
| 44 |
710-0347 |
Hex Screw, 3/8-16 x 1.75 Price: $4.39 |
| 45 |
710-1260A |
Screw, 5/16-18 x 0.750 Price: $3.34 |
| 46 |
712-04065 |
Flangelock Nut, 3/8-16 Price: $3.68 |
| 47 |
938-0347 |
Shoulder Spacer, .625 ID x .169 Price: $8.93 |
| 48 |
753-05147 |
Bracket Assembly Price: $28.74 |
| 49 |
710-0627 |
Hex Screw, 5/16-24 x .750 Price: $3.68 |
| 50 |
710-0778 |
Screw, 1/4-20 x 1.500 Price: $3.90 |
| 51 |
718-04261 |
Bearing Cup Price: $18.82 |
| 52 |
732-04076A |
Extension Spring, 1.15 OD x 7.90 LG Price: $12.80 |
| 53 |
736-0362 |
Flat Washer, .330 x 1.25 x .06:HT Price: $3.93 |
| 54 |
941-0600 |
BALL BEARING This part replaces 941-0124. Price: $23.34 |
| 55 |
634-0104-0911 |
Wheel, 20 x 8 x 8, 42" - Gray Price: $127.19 |
| 56 |
736-0242 |
Bell Washer, .340 x .872 x .060 Price: $3.75 |
| 57 |
725-04363 |
Switch Interlock Price: $13.25 |
| 58 |
17962 |
Plate Switch Price: $4.36 |
