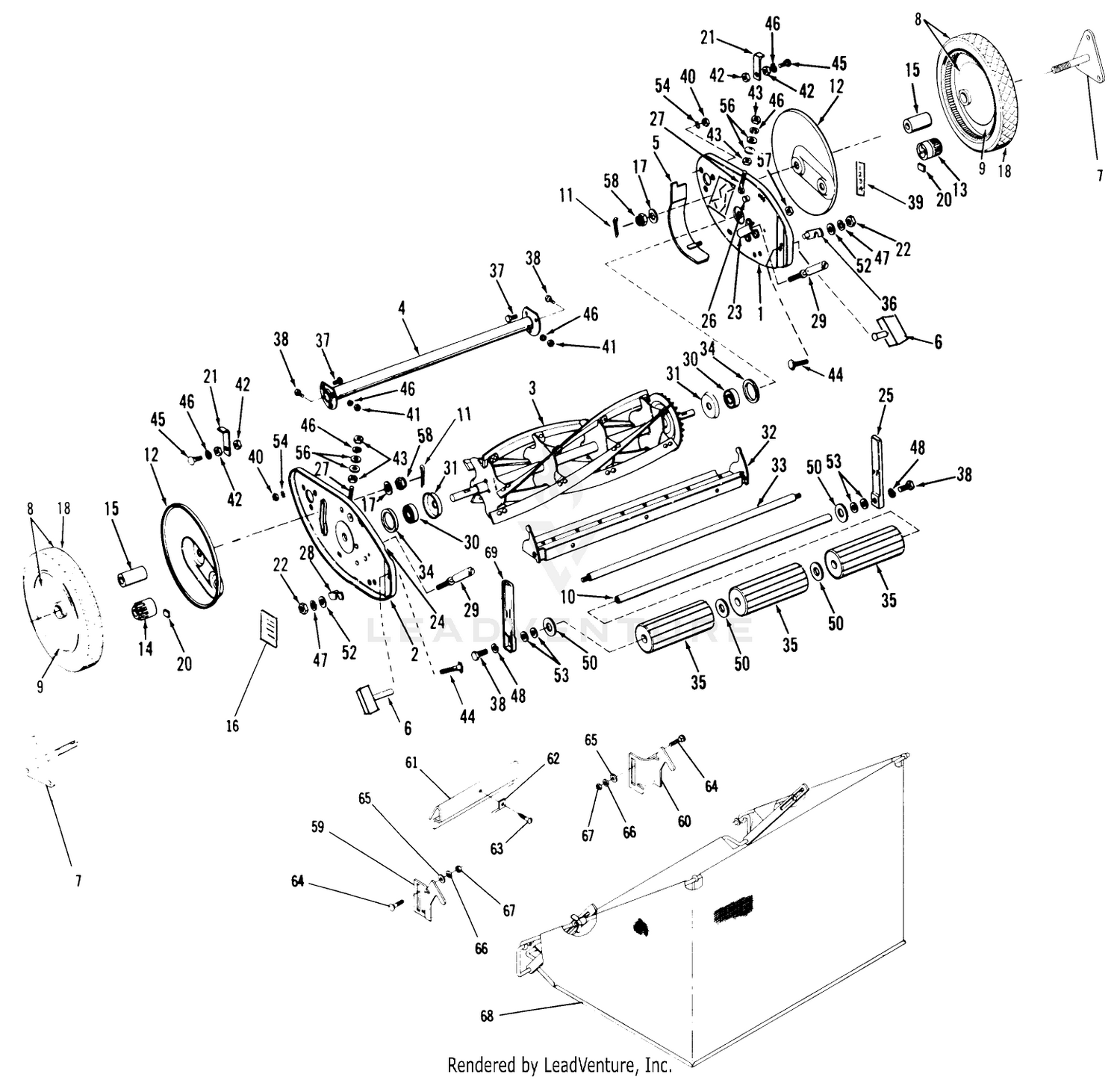

| Ref | Part Number | Description |
|---|
| 1 |
7300 |
Frame, R.H. Side Price: Call Us |
| 2 |
7301 |
Frame, L.H. Side Price: Call Us |
| 3 |
7302 |
Reel Assembly, 5 Blade, w/Sprocket Price: Call Us |
| 4 |
7303 |
Tube, Front Cross Price: Call Us |
| 5 |
7333 |
Guard, Reel Sprocket Price: Call Us |
| 6 |
7312 |
Knob, Roller Adj. Price: Call Us |
| 7 |
7253 |
Knock-Off Spinner Ass-y. Price: Call Us |
| 8 |
7304 |
Wheel w/Tire Price: Call Us |
| 9 |
7305 |
Wheel w/O Tire Price: Call Us |
| 10 |
7306 |
Shaft, Rear Roller Price: Call Us |
| 11 |
932017-4 |
Cotter Pin Price: Call Us |
| 12 |
7307 |
Shield, Dust Price: Call Us |
| 13 |
7308 |
Pinion, Drive, R.H. Price: Call Us |
| 14 |
7309 |
Pinion, Drive, L.H. Price: Call Us |
| 15 |
7310 |
Shaft, Wheel Price: Call Us |
| 16 |
7298 |
Decal, Height Inst. Price: Call Us |
| 17 |
920126-4 |
Lockwasher, 1/2 Ext. Price: Call Us |
| 18 |
7311 |
Tire, Diamond Tread Price: Call Us |
| 20 |
7313 |
Pawl, Pinion Drive Price: Call Us |
| 21 |
7314 |
Bracket, Handle Stop Price: Call Us |
| 23 |
7315 |
Case, R.H. Adjusting Screw Price: Call Us |
| 24 |
7316 |
Case, L.H. Adjusting Screw Price: Call Us |
| 25 |
7317 |
Bracket Rear Roller R.H. Price: Call Us |
| 26 |
7318 |
Stud, Handle Price: Call Us |
| 27 |
7319 |
Screw, Deck Adjusting Price: Call Us |
| 28 |
7320 |
Plate, L.H. Mounting Plate Price: Call Us |
| 29 |
7322 |
OPERATOR MANUAL ADDENDUM Price: $2.00 |
| 30 |
7323 |
Bearing, Reel Shaft Price: Call Us |
| 31 |
7325 |
Slinger, Dirt Price: Call Us |
| 32 |
7327 |
Bar, Cutter Price: Call Us |
| 33 |
7324 |
Rod, Tie Price: Call Us |
| 34 |
7326 |
Washer, Seal, Reel Bearing Felt Price: Call Us |
| 35 |
7321 |
Roller, Rear Price: Call Us |
| 36 |
7328 |
Plate, R.H. Mounting Pin Price: Call Us |
| 37 |
908001-4 |
Bolt, 1/4-x 1/2 Price: Call Us |
| 38 |
908016-4 |
Bolt Hex 5/16-18 Price: Call Us |
| 39 |
7329 |
Decal, Roller Adj. Price: Call Us |
| 40 |
915111-4 |
Nut 1/4-20 Price: Call Us |
| 41 |
915001-4 |
Nut, 5/16-18 Hex Price: Call Us |
| 42 |
915235-4 |
Nut 5/16-18 Jam Price: Call Us |
| 43 |
915084-4 |
Nut, 5/16-24 Hex Jam Price: Call Us |
| 44 |
900040-4 |
Bolt-5/16-18 x 1 1/2 Price: Call Us |
| 45 |
900214-4 |
Bolt-Carriage 5/16-18 Price: Call Us |
| 46 |
920082-4 |
Lockwasher Price: Call Us |
| 47 |
920084-4 |
Lockwasher 3/8 Price: Call Us |
| 48 |
920123-4 |
Lockwasher, 5/16 Price: Call Us |
| 50 |
920041-4 |
Washer-Flat Price: Call Us |
| 52 |
920009-4 |
Washer Price: Call Us |
| 53 |
920008-4 |
Washer Price: Call Us |
| 54 |
920122 |
DISCONTINUED This part replaces 7330. Price: Call Us |
| 56 |
7331 |
Washer, 5/16 Flat Price: Call Us |
| 57 |
7334 |
Nut, 5/16-18 Hex Conelock Price: Call Us |
| 58 |
7332 |
Nut, 1/2-13 Adjustment (Special) Price: Call Us |
| 59 |
7335 |
Bracket, L.H. Catcher Price: Call Us |
| 60 |
7336 |
Bracket, R.H. Catcher Price: Call Us |
| 61 |
7337 |
Deflector, Grass Price: Call Us |
| 62 |
7338 |
Clip Price: Call Us |
| 63 |
926234-4 |
Screw #10 x 1/2 Type A Price: Call Us |
| 64 |
900215-4 |
Bolt, Carriage S.N. 5/16-18 x 1 Price: Call Us |
| 65 |
920008-4 |
Washer Price: Call Us |
| 66 |
920082-4 |
Lockwasher Price: Call Us |
| 67 |
915001-4 |
Nut, 5/16-18 Hex Price: Call Us |
| 68 |
7254 |
Grass Catcher Ass-y. Price: Call Us |
