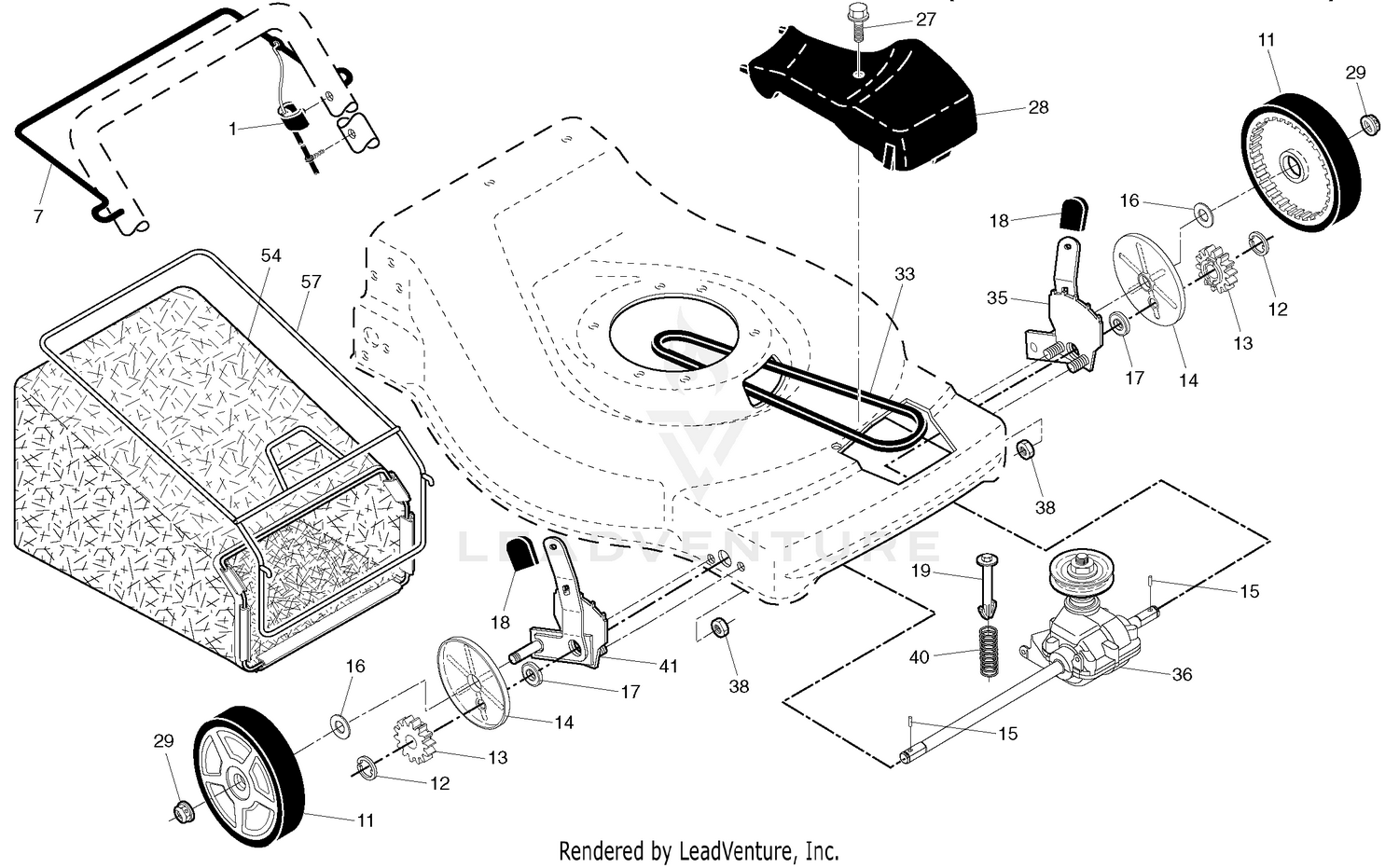

| Ref | Part Number | Description |
|---|
| 1 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 2 |
63-8410 |
WASHER Price: $1.76 |
| 3 |
110-6384-03 |
BRACKET-GEARBOX, LH Price: $61.81 |
| 4 |
63-9750 |
MOUNT Price: $18.92 |
| 5 |
3231-26 |
SCREW-CARR Price: $0.86 |
| 6 |
130-8659 |
GEARBOX ASM This part replaces 110-6386-03. Price: $843.83 |
| 7 |
194185X421 |
Bar, Drive Control Price: Call Us |
| 8 |
23-1640 |
BUSHING-TAPERLOCK Price: $68.50 |
| 9 |
110-6385-03 |
BRACKET-GEARBOX, RH Price: $61.81 |
| 10 |
323-4 |
SCREW-HH Price: $1.02 |
| 11 |
193912X421 |
Wheel & Tire Assembly, Front Price: Call Us |
| 11 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 12 |
12000058 |
E-Ring Price: Call Us |
| 13 |
403849 |
Pinion Price: Call Us |
| 14 |
189403 |
Dust Cover Price: Call Us |
| 15 |
404845 |
Pawl, Drive Price: Call Us |
| 16 |
67725 |
Washer, Flat 3/8 Price: Call Us |
| 17 |
112-9559 |
GROMMET Price: $5.38 |
| 17 |
191039 |
Bearing, Wheel Adjuster Price: Call Us |
| 18 |
701037X421 |
Selector Knob Price: Call Us |
| 19 |
150495 |
Retainer, Spring Price: Call Us |
| 19 |
93-6687 |
DECAL-NO STEP Price: $14.45 |
| 20 |
112-1458-03 |
COVER-DECK, LH Price: $101.86 |
| 21 |
112-1459-03 |
COVER-DECK, RH Price: $68.80 |
| 22 |
93-6697 |
DECAL-LUBE Price: $11.38 |
| 23 |
106-2240 |
KNOB Price: $12.99 |
| 24 |
110-3510 |
NUT-RETAINER Price: $5.77 |
| 27 |
175262 |
Pan Head Tapping Screw #10-24 x 2-3/4 Price: Call Us |
| 28 |
401271X428 |
Drive Cover Price: Call Us |
| 29 |
409149 |
Locknut, Hex Price: Call Us |
| 33 |
146527 |
V-Belt Price: Call Us |
| 36 |
415226 |
Gear Case Assembly, Complete Price: Call Us |
| 38 |
73800400 |
Locknut 1/4-20 Price: Call Us |
| 40 |
137090 |
Spring Price: Call Us |
| 54 |
411062 |
Grassbag Assembly Price: Call Us |
